Canon 1100D vs SX500

The Canon EOS 1100D (called Canon T3 in some regions) and the Canon PowerShot SX500 IS are two digital cameras that were announced, respectively, in February 2011 and August 2012. The 1100D is a DSLR, while the SX500 is a fixed lens compact. The cameras are based on an APS-C (1100D) and a 1/2.3-inch (SX500) sensor. The 1100D has a resolution of 12.2 megapixels, whereas the SX500 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 1100D		Canon SX500
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-720mm f/3.4-5.8
12.2 MP – APS-C sensor		15.9 MP – 1/2.3" sensor
720/30p Video		720/30p Video
ISO 100-6,400		ISO 80-1,600
Optical viewfinder		No viewfinder, LCD framing
2.7" LCD – 230k dots		3.0" LCD – 461k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		0.8 shutter flaps per second
700 shots per battery charge		195 shots per battery charge
130 x 100 x 78 mm, 495 g		104 x 70 x 80 mm, 341 g

Check 1100D offers at
ebay.com
Check SX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 1100D and the Canon PowerShot SX500 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

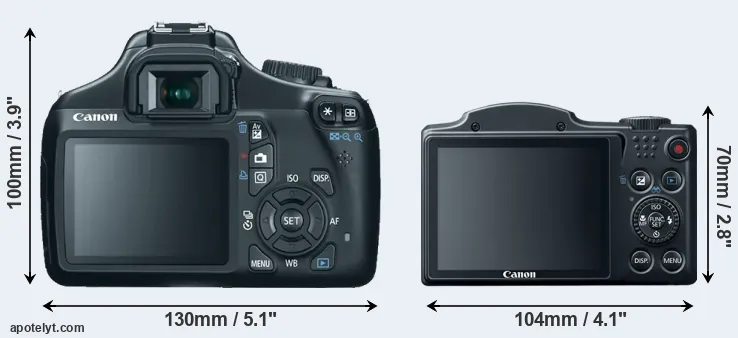

Body comparison

The physical size and weight of the Canon 1100D and the Canon SX500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX500 is considerably smaller (44 percent) than the Canon 1100D. In this context, it is worth noting that neither the 1100D nor the SX500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX500 has a lens built in, whereas the 1100D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 1100D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 1100D gets 700 shots out of its Canon LP-E10 battery, while the SX500 can take 195 images on a single charge of its Canon NB-6L power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
2.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	US$ 329	ebay.com
3.		Canon 450D	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
4.		Canon 550D	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
5.		Canon 600D	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
6.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
7.		Canon 1000D	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
8.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
9.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
10.		Canon 4000D	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
11.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
12.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
13.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
14.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
15.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
16.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
17.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX500 was launched at a lower price than the 1100D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1100D features an APS-C sensor and the Canon SX500 a 1/2.3-inch sensor. The sensor area in the SX500 is 91 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 1100D has a native 3:2 aspect ratio, while the one in the SX500 offers a 4:3 aspect.

Despite having a smaller sensor, the SX500 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the 1100D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 5.15μm for the 1100D). However, it should be noted that the SX500 is a somewhat more recent model (by 1 year and 6 months) than the 1100D, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the SX500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX500 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon 1100D are 21.4 x 14.2 inches or 54.3 x 36.2 cm for good quality, 17.1 x 11.4 inches or 43.4 x 28.9 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.1 cm for excellent quality prints.

The Canon EOS 1100D has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Canon PowerShot SX500 IS are ISO 80 to ISO 1600 (no boost).

In terms of underlying technology, the 1100D is build around a CMOS sensor, while the SX500 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
2.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
3.		Canon 450D	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
4.		Canon 550D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
5.		Canon 600D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
6.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
7.		Canon 1000D	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
8.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
9.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
10.		Canon 4000D	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
11.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
12.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
13.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
14.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
15.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
16.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
17.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (720/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 1100D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX500 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon 1100D and Canon SX500 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
3.		Canon 450D	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
4.		Canon 550D	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
5.		Canon 600D	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
6.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 1000D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
8.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon 4000D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
12.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
13.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
14.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
15.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
16.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
17.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the 1100D and the SX500 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 1100D and Canon PowerShot SX500 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
3.		Canon 450D	Y	- / -	-	-	mini	2.0	-	-	-
4.		Canon 550D	Y	stereo / -	Y	-	mini	2.0	-	-	-
5.		Canon 600D	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Canon 1000D	Y	- / -	-	-	-	2.0	-	-	-
8.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
10.		Canon 4000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
14.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
15.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
16.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
17.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y

It is notable that the 1100D has a hotshoe, while the SX500 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the 1100D and the SX500 have been discontinued, but can regularly be found used on ebay. The 1100D was replaced by the Canon 1200D, while the SX500 was followed by the Canon SX510. Further information on the features and operation of the 1100D and SX500 can be found, respectively, in the Canon 1100D Manual (free pdf) or the online Canon SX500 Manual.

Review summary

So what conclusions can be drawn? Is the Canon 1100D better than the Canon SX500 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS 1100D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
• Faster burst: Shoots at higher frequency (3 vs 0.8 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (700 versus 195) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been on the market for longer (launched in February 2011).

Arguments in favor of the Canon PowerShot SX500 IS:

• More detail: Has more megapixels (15.9 vs 12.2MP), which boosts linear resolution by 12%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (461k vs 230k dots).
• Ready to shoot: Comes with an integrated lens, while the 1100D requires a separate lens.
• More compact: Is smaller (104x70mm vs 130x100mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 1100D).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (1 year and 6 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the 1100D emerges as the winner of the contest (12 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 1100D and the Canon SX500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 1100D or the SX500 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
2.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	US$ 329	ebay.com
3.		Canon 450D	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
4.		Canon 550D	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
5.		Canon 600D	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
6.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
7.		Canon 1000D	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
8.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
9.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
10.		Canon 4000D	2.5/5	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
11.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
12.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
13.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
14.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
15.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
16.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
17.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
