Canon 60D vs Canon M

The Canon EOS 60D and the Canon EOS M are two digital cameras that were officially introduced, respectively, in August 2010 and July 2012. The 60D is a DSLR, while the Canon M is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 17.9 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 60D		Canon M
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Canon EF-M mount lenses
17.9 MP – APS-C sensor		17.9 MP – APS-C sensor
1080/30p Video		1080/30p Video
ISO 100-6,400 (100 - 12,800)		ISO 100-12,800 (100 - 25,600)
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Swivel screen (not touch-sensitive)		Fixed touchscreen
5.3 shutter flaps per second		4.3 shutter flaps per second
Weathersealed body		not weather sealed
1100 shots per battery charge		230 shots per battery charge
145 x 106 x 79 mm, 755 g		109 x 66 x 32 mm, 298 g

Check 60D offers at
ebay.com
Check Canon M offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Canon EOS M? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

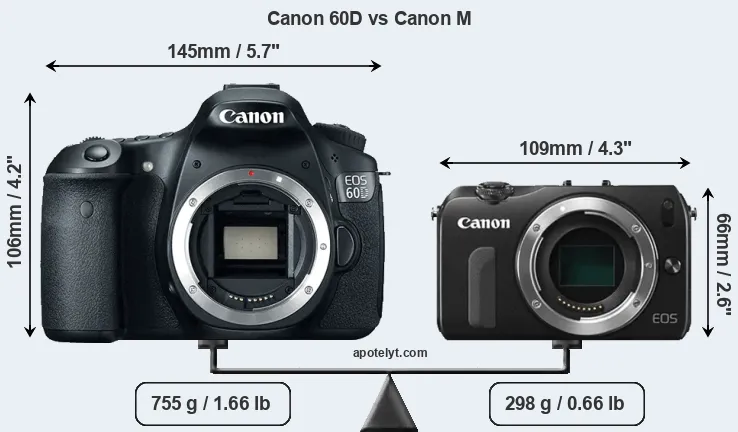

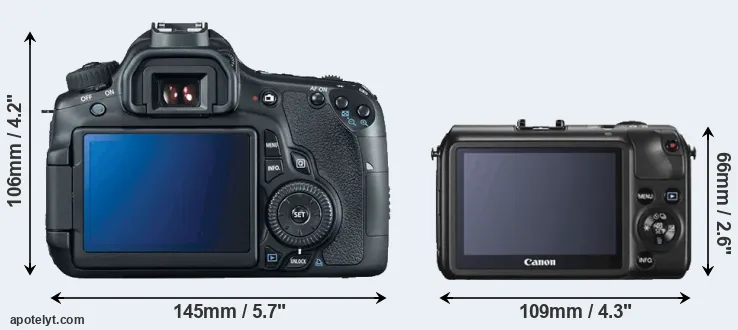

The physical size and weight of the Canon 60D and the Canon M are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The Canon M can be obtained in two different colors (black, white), while the 60D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M is considerably smaller (53 percent) than the Canon 60D. Moreover, the Canon M is substantially lighter (61 percent) than the 60D. It is worth mentioning in this context that the 60D is splash and dust resistant, while the Canon M does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 60D gets 1100 shots out of its Canon LP-E6 battery, while the Canon M can take 230 images on a single charge of its Canon LP-E12 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
2.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
3.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
5.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
6.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
7.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
8.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
9.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
10.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
11.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
12.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
13.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
14.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
15.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
16.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	US$ 1 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Canon M was launched at a markedly lower price (by 57 percent) than the 60D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

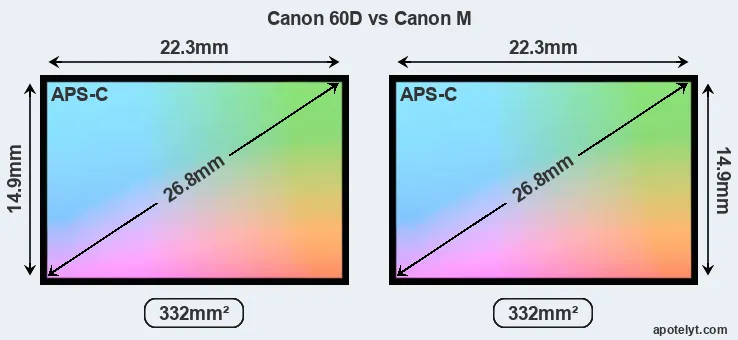

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the Canon M uses a more advanced image processing engine (DIGIC V) than the 60D (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 17.9 megapixels. This similarity in sensor specs implies that both the 60D and the Canon M have the same pixel density, as well as the same pixel size. It should, however, be noted that the Canon M is a somewhat more recent model (by 1 year and 10 months) than the 60D, and its sensor might have benefitted from technological advances during this time.

The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon EOS M are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
2.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
3.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
4.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
5.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
6.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
7.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
8.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
9.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
10.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
11.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
12.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
13.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
14.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
15.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
16.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 60D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 60D, the Canon M, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
2.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
3.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
4.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
5.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
6.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
7.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
8.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
9.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
10.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
11.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
12.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
13.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
14.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
15.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
16.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 60D has one, while the Canon M does not. While the built-in flash of the 60D is not very powerful, it can at times be useful as a fill-in light.

Concerning the storage of imaging data, both the 60D and the Canon M write their files to SDXC cards. The Canon M supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 60D cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Canon EOS M and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
2.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
4.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
6.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
7.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
9.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
11.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
13.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
14.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
15.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Canon 60D (unlike the Canon M) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 60D and the Canon M have been discontinued, but can regularly be found used on ebay. The 60D was replaced by the Canon 70D, while the Canon M was followed by the Canon EOS M3. Further information on the features and operation of the 60D and Canon M can be found, respectively, in the Canon 60D Manual (free pdf) or the online Canon M Manual.

Review summary

So what is the bottom line? Is the Canon 60D better than the Canon M or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 60D:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (5.3 vs 4.3 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (1100 versus 230) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been on the market for longer (launched in August 2010).

Advantages of the Canon EOS M:

• Better jpgs: Has a more modern image processing engine (DIGIC V vs DIGIC 4).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More compact: Is smaller (109x66mm vs 145x106mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 457g or 61 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (57 percent cheaper at launch).
• More modern: Was introduced somewhat (1 year and 10 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the 60D emerges as the winner of the contest (11 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 60D and the Canon M place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 60D or the Canon M perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
2.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
3.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
5.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
6.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
7.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
8.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
9.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
10.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
11.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
12.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
13.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
14.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
15.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
16.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	US$ 1 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
