Canon G3 X vs Epson R-D1

The Canon PowerShot G3 X and the Epson R-D1 are two digital cameras that were announced, respectively, in June 2015 and March 2004. The G3X is a fixed lens compact, while the R-D1 is a rangefinder-focusing mirrorless. The cameras are based on an one-inch (G3X) and an APS-C (R-D1) sensor. The Canon has a resolution of 20 megapixels, whereas the Epson provides 6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G3 X		Epson R-D1
Fixed lens compact camera		Rangefinder camera
24-600mm f/2.8-5.6		Leica M mount lenses
20 MP – 1" sensor		6 MP – APS-C sensor
1080/60p Video		no Video
ISO 125-12,800 (125 - 25,600)		ISO 200-1,600
Viewfinder optional		Optical viewfinder
3.2" LCD – 1620k dots		2.0" LCD – 235k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
5.9 shutter flaps per second		1 shutter flaps per second
Weathersealed body		not weather sealed
123 x 77 x 105 mm, 733 g		142 x 89 x 40 mm, 620 g

Check G3X offers at
ebay.com
Check R-D1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G3 X and the Epson R-D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon G3 X and the Epson R-D1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Epson R-D1 is notably larger (33 percent) than the Canon G3 X. It is worth mentioning in this context that the G3X is splash and dust resistant, while the R-D1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G3X has a lens built in, whereas the R-D1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the R-D1 and their specifications in the Leica M Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
2.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
3.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	US$ 1 199	ebay.com
4.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
6.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
7.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
8.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
9.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
10.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
11.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
12.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
13.		Panasonic FZ2500	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	US$ 1 199	amazon.com
14.		Sony RX10	129 mm	88 mm	102 mm	813 g	420	Y	Oct 2013	US$ 1 299	ebay.com
15.		Sony RX10 II	129 mm	88 mm	102 mm	813 g	400	Y	Jun 2015	US$ 1 299	ebay.com
16.		Sony RX10 III	133 mm	94 mm	127 mm	1051 g	420	Y	Mar 2016	US$ 1 499	ebay.com
17.		Sony RX100 V	102 mm	58 mm	41 mm	299 g	220	n	Oct 2016	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G3X was launched at a lower price than the R-D1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G3 X features an one-inch sensor and the Epson R-D1 an APS-C sensor. The sensor area in the R-D1 is 219 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

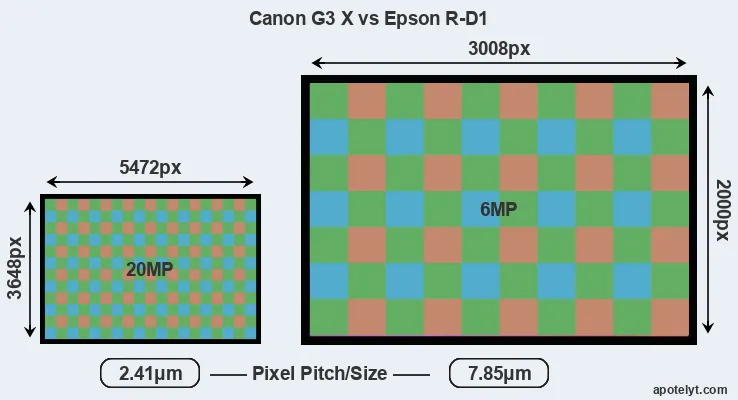

Despite having a smaller sensor, the Canon G3 X offers a higher resolution of 20 megapixels, compared with 6 MP of the Epson R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 7.85μm for the R-D1). However, it should be noted that the G3X is much more recent (by 11 years and 3 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon G3 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G3X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Canon PowerShot G3 X has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Epson R-D1 are ISO 200 to ISO 1600 (no boost).

In terms of underlying technology, the G3X is build around a BSI-CMOS sensor, while the R-D1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
2.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
3.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
4.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
7.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
8.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
9.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
10.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
11.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
12.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
13.		Panasonic FZ2500	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
14.		Sony RX10	1-inch	20.0	5472	3648	1080/60p	22.9	12.6	474	69
15.		Sony RX10 II	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	531	70
16.		Sony RX10 III	1-inch	20.0	5472	3648	4K/30p	23.1	12.6	472	70
17.		Sony RX100 V	1-inch	20.0	5472	3648	4K/30p	22.8	12.4	586	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The G3X indeed provides movie recording capabilities, while the R-D1 does not. The highest resolution format that the G3X can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R-D1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the G3X relies on live view and the rear LCD for framing. That said, the G3X can be equipped with an optional viewfinder – the EVF-DC1. The adjacent table lists some of the other core features of the Canon G3 X and Epson R-D1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
2.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
3.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
4.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
7.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
8.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
9.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
10.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
11.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
12.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
13.		Panasonic FZ2500	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
14.		Sony RX10	1440	Y	3.0 / 1229	tilting	n	1/3200s	10.0/s	Y	Y
15.		Sony RX10 II	2359	Y	3.0 / 1229	tilting	n	1/3200s	14.0/s	Y	Y
16.		Sony RX10 III	2359	Y	3.0 / 1229	tilting	n	1/2000s	14.0/s	Y	Y
17.		Sony RX100 V	2359	n	3.0 / 1229	tilting	n	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The G3X has one, while the R-D1 does not. While the built-in flash of the G3X is not very powerful, it can at times be useful as a fill-in light.

The G3X writes its imaging data to SDXC cards, while the R-D1 uses SDHC cards. The G3X supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the R-D1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G3 X and Epson R-D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
3.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
4.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
8.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
10.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
11.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
12.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
13.		Panasonic FZ2500	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
14.		Sony RX10	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
15.		Sony RX10 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
16.		Sony RX10 III	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
17.		Sony RX100 V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the G3X offers wifi support, while the R-D1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Epson R-D1 (unlike the G3X) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the G3X and the R-D1 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Epson. Further information on the features and operation of the G3X and R-D1 can be found, respectively, in the Canon G3 X Manual (free pdf) or the online Epson R-D1 Manual.

Review summary

So what is the bottom line? Is the Canon G3 X better than the Epson R-D1 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon PowerShot G3 X:

• More detail: Offers more megapixels (20 vs 6MP) with a 82% higher linear resolution.
• Broader imaging potential: Can record not only still images but also 1080/60p movies.
• Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 235k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (5.9 vs 1 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has a lens built-in, whereas the R-D1 requires a separate lens.
• More compact: Is smaller (123x77mm vs 142x89mm) and thus needs less room in the bag.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 11 years and 3 months of technical progress since the R-D1 launch.

Arguments in favor of the Epson R-D1:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible: Takes interchangeable lenses and can thus be used with different optics.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been around for much longer (launched in March 2004).

If the count of relative strengths (bullet points above) is taken as a measure, the G3X is the clear winner of the match-up (18 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the G3X or the R-D1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
2.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
3.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	US$ 1 199	ebay.com
4.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
6.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
7.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
8.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
9.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
10.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
11.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
12.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
13.		Panasonic FZ2500	..	+	..	82/100	4.5/5	5/5	Sep 2016	US$ 1 199	amazon.com
14.		Sony RX10	5/5	+	..	80/100	4.5/5	4.5/5	Oct 2013	US$ 1 299	ebay.com
15.		Sony RX10 II	5/5	+ +	..	82/100	4.5/5	4/5	Jun 2015	US$ 1 299	ebay.com
16.		Sony RX10 III	5/5	+	..	84/100	4.5/5	4.5/5	Mar 2016	US$ 1 499	ebay.com
17.		Sony RX100 V	4.5/5	+ +	..	83/100	4/5	4.5/5	Oct 2016	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
