Canon G9 X Mark II vs Olympus E-M5

The Canon PowerShot G9 X Mark II and the Olympus OM-D E-M5 are two digital cameras that were announced, respectively, in January 2017 and February 2012. The G9X Mark II is a fixed lens compact, while the E-M5 is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (G9X Mark II) and a Four Thirds (E-M5) sensor. The Canon has a resolution of 20 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G9 X Mark II		Olympus E-M5
Fixed lens compact camera		Mirrorless system camera
28-84mm f/2.0-4.9		Micro Four Thirds lenses
20 MP – 1" sensor		15.9 MP – Four Thirds sensor
1080/60p Video		1080/60i Video
ISO 125-12,800		ISO 200-25,600
No viewfinder, LCD framing		Electronic viewfinder (1440k dots)
3.0" LCD – 1040k dots		3.0" LCD – 610k dots
Fixed touchscreen		Tilting touchscreen
8.2 shutter flaps per second		9 shutter flaps per second
Lens-based stabilization		In-body stabilization
not weather sealed		Weathersealed body
235 shots per battery charge		360 shots per battery charge
98 x 58 x 31 mm, 206 g		122 x 89 x 43 mm, 425 g

Check G9X Mark II offers at
ebay.com
Check E-M5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G9 X Mark II and the Olympus OM-D E-M5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon G9 X Mark II and the Olympus E-M5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 is considerably larger (91 percent) than the Canon G9 X Mark II. It is noteworthy in this context that the E-M5 is splash and dust-proof, while the G9X Mark II does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G9X Mark II has a lens built in, whereas the E-M5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M5 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the G9X Mark II gets 235 shots out of its Canon NB-13L battery, while the E-M5 can take 360 images on a single charge of its Olympus BLN-1 power pack. The power pack in the G9X Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
2.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	US$ 1 299	ebay.com
3.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
5.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
6.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
7.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
8.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
9.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	US$ 549	amazon.com
10.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
11.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	US$ 1 399	ebay.com
12.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
13.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
14.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
15.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
16.		Sony HX95	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	US$ 429	ebay.com
17.		Sony HX99	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The G9X Mark II was launched at a lower price than the E-M5, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

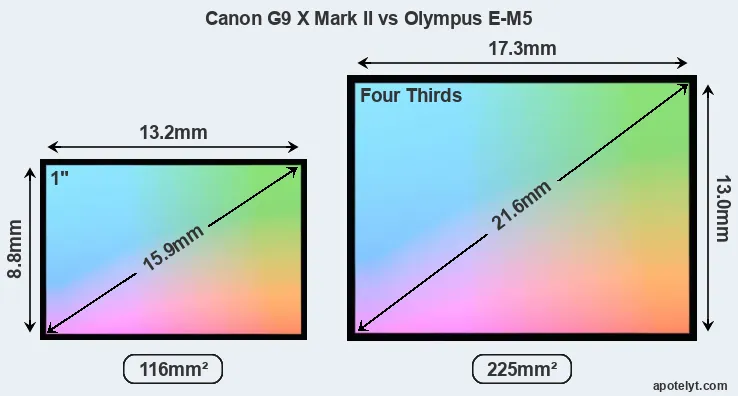

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G9 X Mark II features an one-inch sensor and the Olympus E-M5 a Four Thirds sensor. The sensor area in the E-M5 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the G9X Mark II has a native 3:2 aspect ratio, while the one in the E-M5 offers a 4:3 aspect.

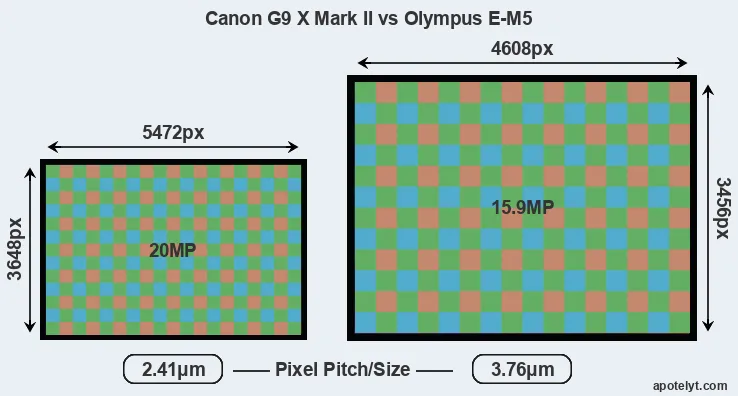

Despite having a smaller sensor, the Canon G9 X Mark II offers a higher resolution of 20 megapixels, compared with 15.9 MP of the Olympus E-M5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 3.76μm for the E-M5). However, it should be noted that the G9X Mark II is much more recent (by 4 years and 10 months) than the E-M5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon G9 X Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G9X Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-M5 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot G9 X Mark II has a native sensitivity range from ISO 125 to ISO 12800. The corresponding ISO settings for the Olympus OM-D E-M5 are ISO 200 to ISO 25600 (no boost).

In terms of underlying technology, the G9X Mark II is build around a BSI-CMOS sensor, while the E-M5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the E-M5 has a markedly higher DXO score than the G9X Mark II (overall score 6 points higher), which will translate into better image quality. The advantage is based on 0.9 bits higher color depth, 0.2 EV of lower dynamic range, and 0.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
2.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
3.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
6.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
7.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
8.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
9.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
10.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
11.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
12.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
13.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
14.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
15.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
16.		Sony HX95	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1057	51
17.		Sony HX99	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1058	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the G9X Mark II provides a higher frame rate than the E-M5. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M5 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the G9X Mark II relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon G9 X Mark II, the Olympus E-M5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
2.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
3.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
7.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
8.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
9.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
10.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
11.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
12.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
13.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
14.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
15.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
16.		Sony HX95	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony HX99	638	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The G9X Mark II has one, while the E-M5 does not. While the built-in flash of the G9X Mark II is not very powerful, it can at times be useful as a fill-in light.

The Canon G9 X Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the G9X Mark II and the E-M5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G9 X Mark II and Olympus OM-D E-M5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
9.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
11.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
13.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Sony HX95	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
17.		Sony HX99	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the G9X Mark II offers wifi support, while the E-M5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the G9X Mark II and the E-M5 have been discontinued, but can regularly be found used on ebay. The E-M5 was replaced by the Olympus E-M5 II, while the G9X Mark II does not have a direct successor. Further information on the features and operation of the G9X Mark II and E-M5 can be found, respectively, in the Canon G9 X Mark II Manual (free pdf) or the online Olympus E-M5 Manual.

Review summary

So what is the bottom line? Is the Canon G9 X Mark II better than the Olympus E-M5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon PowerShot G9 X Mark II:

• More detail: Offers more megapixels (20 vs 15.9MP) with a 14% higher linear resolution.
• Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 610k dots).
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has a lens built-in, whereas the E-M5 requires a separate lens.
• More compact: Is smaller (98x58mm vs 122x89mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-M5).
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 4 years and 10 months of technical progress since the E-M5 launch.

Reasons to prefer the Olympus OM-D E-M5:

• Better image quality: Scores markedly higher (6 points) in the DXO overall evaluation.
• Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (360 versus 235) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in February 2012).

If the number of relative strengths (bullet points above) is taken as a guide, the G9X Mark II is the clear winner of the match-up (14 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G9 X Mark II and the Olympus E-M5 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the G9X Mark II or the E-M5 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
2.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	US$ 1 299	ebay.com
3.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
5.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
6.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
7.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
8.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
9.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	US$ 549	amazon.com
10.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
11.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	US$ 1 399	ebay.com
12.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
13.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
14.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
15.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
16.		Sony HX95	..	..	..	..	..	..	Aug 2018	US$ 429	ebay.com
17.		Sony HX99	..	..	..	..	4/5	4.5/5	Aug 2018	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
