Canon G9 X vs SL2

The Canon PowerShot G9 X and the Canon EOS Rebel SL2 (labelled Canon 200D in some countries) are two digital cameras that were announced, respectively, in October 2015 and June 2017. The G9X is a fixed lens compact, while the SL2 is a DSLR. The cameras are based on an one-inch (G9X) and an APS-C (SL2) sensor. The G9X has a resolution of 20 megapixels, whereas the SL2 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G9 X		Canon SL2
Fixed lens compact camera		Digital single lens reflex
28-84mm f/2.0-4.9		Canon EF mount lenses
20 MP – 1" sensor		24 MP – APS-C sensor
1080/60p Video		1080/60p Video
ISO 125-12,800		ISO 100-25,600 (100 - 51,200)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Fixed touchscreen		Swivel touchscreen
6 shutter flaps per second		5 shutter flaps per second
220 shots per battery charge		650 shots per battery charge
98 x 58 x 31 mm, 209 g		122 x 93 x 70 mm, 453 g

Check G9X offers at
ebay.com
Check SL2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G9 X and the Canon EOS Rebel SL2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

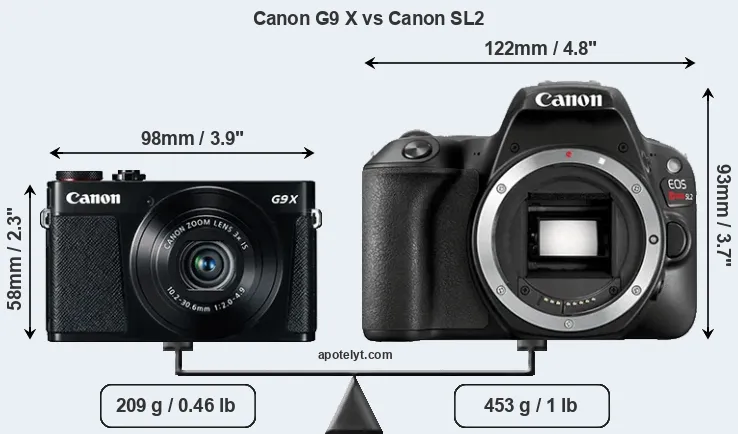

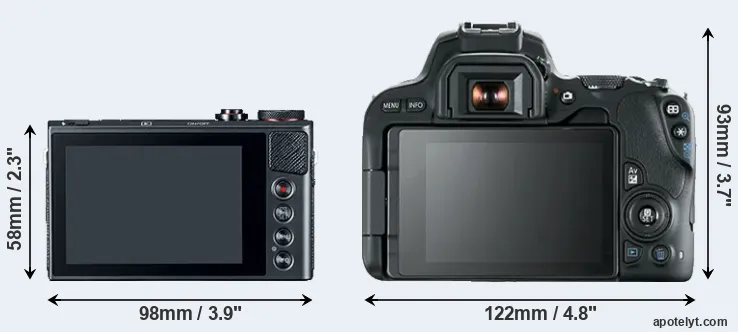

Body comparison

The physical size and weight of the Canon G9 X and the Canon SL2 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The G9X can be obtained in two different colors (black, silver), while the SL2 is also available in two color-versions, but different ones (black, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SL2 is considerably larger (100 percent) than the Canon G9 X. In this context, it is worth noting that neither the G9X nor the SL2 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G9X has a lens built in, whereas the SL2 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the SL2 and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the G9X gets 220 shots out of its Canon NB-13L battery, while the SL2 can take 650 images on a single charge of its Canon LP-E17 power pack. The power pack in the G9X can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
2.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
7.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
8.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
9.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
10.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
11.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
12.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
13.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	US$ 549	ebay.com
14.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
15.		Sony RX100	102 mm	58 mm	36 mm	240 g	330	n	Jun 2012	US$ 649	ebay.com
16.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
17.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G9X was launched at a lower price than the SL2, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon G9 X features an one-inch sensor and the Canon SL2 an APS-C sensor. The sensor area in the SL2 is 186 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the SL2 uses a more advanced image processing engine (DIGIC 7) than the G9X (DIGIC 6), with benefits for noise reduction, color accuracy, and processing speed.

With 24MP, the SL2 offers a higher resolution than the G9X (20MP), but the SL2 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 2.41μm for the G9X) due to its larger sensor. Moreover, the SL2 is a somewhat more recent model (by 1 year and 8 months) than the G9X, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Canon SL2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL2 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon G9 X are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The SL2 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon PowerShot G9 X has a native sensitivity range from ISO 125 to ISO 12800. The corresponding ISO settings for the Canon EOS Rebel SL2 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the G9X is build around a BSI-CMOS sensor, while the SL2 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the SL2 offers substantially better image quality than the G9X (overall score 16 points higher). The advantage is based on 2.1 bits higher color depth, 1.1 EV in additional dynamic range, and 1.1 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
2.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
8.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
9.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
10.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
11.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
12.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
13.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
14.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
15.		Sony RX100	1-inch	20.0	5472	3648	1080/60p	22.6	12.4	390	66
16.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
17.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the SL2 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the G9X relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon G9 X, the Canon SL2, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
2.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
8.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
9.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
10.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
13.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
14.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
15.		Sony RX100	none	n	3.0 / 1229	fixed	n	1/2000s	10.0/s	Y	Y
16.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Canon G9 X and the Canon SL2 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the G9X and the SL2 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G9 X and Canon EOS Rebel SL2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
9.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
13.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
14.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
15.		Sony RX100	-	stereo / mono	-	-	micro	2.0	-	-	-
16.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the SL2 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The G9X does not feature such a mic input.

Both the G9X and the SL2 have been discontinued, but can regularly be found used on ebay. The G9X was replaced by the Canon G9 X Mark II, while the SL2 was followed by the Canon SL2. Further information on the features and operation of the G9X and SL2 can be found, respectively, in the Canon G9 X Manual (free pdf) or the online Canon SL2 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon G9 X and the Canon SL2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon PowerShot G9 X:

• Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the SL2 requires a separate lens.
• More compact: Is smaller (98x58mm vs 122x93mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the SL2).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been on the market for longer (launched in October 2015).

Arguments in favor of the Canon EOS Rebel SL2:

• More detail: Has more megapixels (24 vs 20MP), which boosts linear resolution by 10%.
• Better image quality: Scores substantially higher (16 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.1 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.1 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.1 stops ISO advantage).
• Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 6).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (650 versus 220) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Was introduced somewhat (1 year and 8 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the SL2 is the clear winner of the contest (17 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G9 X and the Canon SL2 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the G9X or the SL2. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
2.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
7.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
8.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
9.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
10.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
11.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
12.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
13.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	US$ 549	ebay.com
14.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
15.		Sony RX100	5/5	+ +	..	78/100	4/5	5/5	Jun 2012	US$ 649	ebay.com
16.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
17.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
