Canon G9 X vs Panasonic GM1

The Canon PowerShot G9 X and the Panasonic Lumix DMC-GM1 are two digital cameras that were revealed to the public, respectively, in October 2015 and October 2013. The G9X is a fixed lens compact, while the GM1 is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (G9X) and a Four Thirds (GM1) sensor. The Canon has a resolution of 20 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G9 X		Panasonic GM1
Fixed lens compact camera		Mirrorless system camera
28-84mm f/2.0-4.9		Micro Four Thirds lenses
20 MP – 1" sensor		15.8 MP – Four Thirds sensor
1080/60p Video		1080/60i Video
ISO 125-12,800		ISO 200-25,600
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 1036k dots
Fixed touchscreen		Fixed touchscreen
6 shutter flaps per second		5 shutter flaps per second
220 shots per battery charge		230 shots per battery charge
98 x 58 x 31 mm, 209 g		99 x 55 x 30 mm, 204 g

Check G9X offers at
ebay.com
Check GM1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G9 X and the Panasonic Lumix DMC-GM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

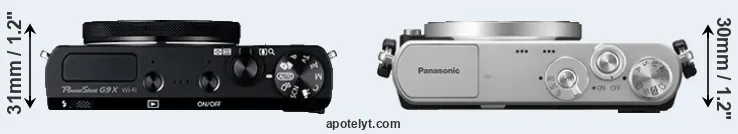

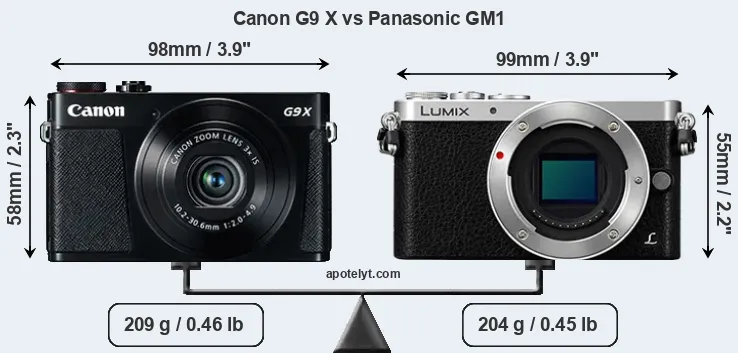

The side-by-side display below illustrates the physical size and weight of the Canon G9 X and the Panasonic GM1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The G9X can be obtained in two different colors (black, silver), while the GM1 is available in three color-versions (black, silver, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM1 is somewhat smaller (4 percent) than the Canon G9 X. In this context, it is worth noting that neither the G9X nor the GM1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G9X has a lens built in, whereas the GM1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GM1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the G9X gets 220 shots out of its Canon NB-13L battery, while the GM1 can take 230 images on a single charge of its Panasonic DMW-BLH7 power pack. The power pack in the G9X can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
2.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	US$ 749	ebay.com
3.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
5.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
6.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
7.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
8.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
9.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
10.		Canon SX610	105 mm	61 mm	27 mm	191 g	270	n	Jan 2015	US$ 249	ebay.com
11.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
12.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	US$ 549	ebay.com
13.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	US$ 599	ebay.com
14.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
15.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
16.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	US$ 749	ebay.com
17.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The G9X was launched at a lower price than the GM1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G9 X features an one-inch sensor and the Panasonic GM1 a Four Thirds sensor. The sensor area in the GM1 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the G9X has a native 3:2 aspect ratio, while the one in the GM1 offers a 4:3 aspect.

Despite having a smaller sensor, the Canon G9 X offers a higher resolution of 20 megapixels, compared with 15.8 MP of the Panasonic GM1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 3.77μm for the GM1). However, it should be noted that the G9X is a somewhat more recent model (by 1 year and 11 months) than the GM1, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.

The resolution advantage of the Canon G9 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G9X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Panasonic GM1 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.

The Canon PowerShot G9 X has a native sensitivity range from ISO 125 to ISO 12800. The corresponding ISO settings for the Panasonic Lumix DMC-GM1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 125-25600.

In terms of underlying technology, the G9X is build around a BSI-CMOS sensor, while the GM1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
2.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
3.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
6.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
7.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
8.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
9.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
10.		Canon SX610	1/2.3	20.2	5184	3888	1080/30p	20.2	11.6	712	47
11.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
12.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
13.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
14.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
15.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
16.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
17.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the G9X provides a higher frame rate than the GM1. It can shoot video footage at 1080/60p, while the Panasonic is limited to 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The G9X and the GM1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Canon G9 X and Panasonic GM1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
2.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
3.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
6.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
7.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
8.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
9.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
10.		Canon SX610	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
11.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
12.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
13.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
14.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
15.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
16.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
17.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GM1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon G9 X and the Panasonic GM1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the G9X and the GM1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G9 X and Panasonic Lumix DMC-GM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
9.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
10.		Canon SX610	-	- / -	-	-	micro	2.0	Y	Y	-
11.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
12.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
13.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the G9X and the GM1 have been discontinued, but can regularly be found used on ebay. The GM1 was replaced by the Panasonic GM5, while the G9X was followed by the Canon G9 X Mark II. Further information on the features and operation of the G9X and GM1 can be found, respectively, in the Canon G9 X Manual (free pdf) or the online Panasonic GM1 Manual.

Review summary

So what is the bottom line? Is the Canon G9 X better than the Panasonic GM1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot G9 X:

• More detail: Offers more megapixels (20 vs 15.8MP) with a 15% higher linear resolution.
• More dynamic range: Captures a larger spectrum of light and dark details (0.6 EV of extra DR).
• Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
• Faster shutter: Has higher mechanical shutter speed (1/2000s vs 1/500s) to freeze action.
• Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has a lens built-in, whereas the GM1 requires a separate lens.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Is somewhat more recent (announced 1 year and 11 months after the GM1).

Advantages of the Panasonic Lumix DMC-GM1:

• Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More heavily discounted: Has been on the market for longer (launched in October 2013).

If the count of relative strengths (bullet points above) is taken as a measure, the G9X is the clear winner of the match-up (11 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G9 X and the Panasonic GM1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the G9X or the GM1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
2.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	US$ 749	ebay.com
3.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
5.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
6.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
7.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
8.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
9.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
10.		Canon SX610	..	..	..	..	4/5	4/5	Jan 2015	US$ 249	ebay.com
11.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
12.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	US$ 549	ebay.com
13.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
14.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
15.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
16.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	US$ 749	ebay.com
17.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
