Canon M3 vs Olympus E-M10 IV

The Canon EOS M3 and the Olympus OM-D E-M10 Mark IV are two digital cameras that were officially introduced, respectively, in February 2015 and August 2020. Both the M3 and the E-M10 IV are mirrorless interchangeable lens cameras that are based on an APS-C (M3) and a Four Thirds (E-M10 IV) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M3		Olympus E-M10 IV
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Micro Four Thirds lenses
24 MP – APS-C sensor		20.2 MP – Four Thirds sensor
1080/30p Video		4K/30p Video
ISO 100-12,800 (100 - 25,600)		ISO 200-25,600
Viewfinder optional		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Tilting touchscreen
4.2 shutter flaps per second		15 shutter flaps per second
Lens stabilization only		In-body stabilization
250 shots per battery charge		360 shots per battery charge
111 x 68 x 44 mm, 366 g		122 x 84 x 49 mm, 383 g

Check M3 offers at
ebay.com
Check E-M10 IV price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M3 and the Olympus OM-D E-M10 Mark IV? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

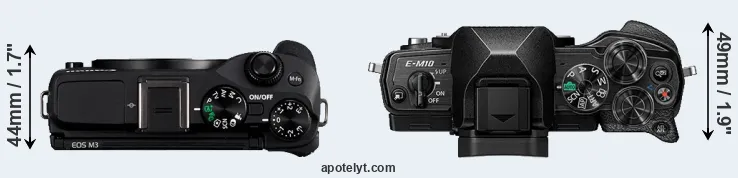

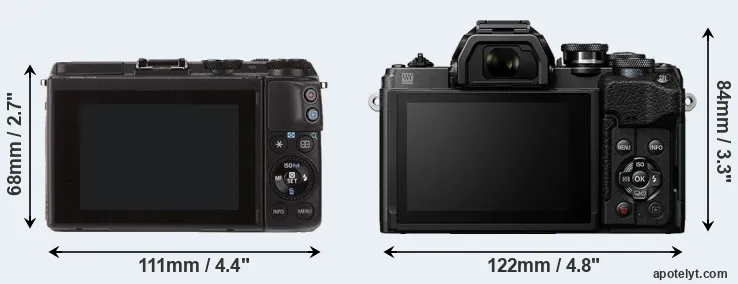

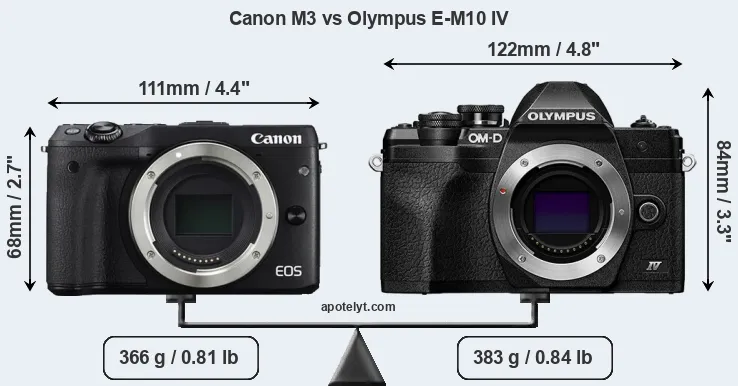

The side-by-side display below illustrates the physical size and weight of the Canon M3 and the Olympus E-M10 IV. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The M3 can be obtained in two different colors (black, white), while the E-M10 IV is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 IV is notably larger (36 percent) than the Canon M3. Moreover, the E-M10 IV is markedly heavier (5 percent) than the M3. In this context, it is worth noting that neither the M3 nor the E-M10 IV are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M3 gets 250 shots out of its Canon LP-E17 battery, while the E-M10 IV can take 360 images on a single charge of its Olympus BLS-50 power pack. The power pack in the E-M10 IV can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
2.		Olympus E-M10 IV	122 mm	84 mm	49 mm	383 g	360	n	Aug 2020	US$ 699	amazon.com
3.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
5.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
6.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
7.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
8.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
9.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	US$ 599	ebay.com
10.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
11.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
12.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
13.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
14.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
15.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	US$ 649	ebay.com
16.		Olympus E-P7	118 mm	69 mm	38 mm	337 g	360	n	Jun 2021	US$ 799	amazon.com
17.		Olympus E-PL10	117 mm	68 mm	39 mm	380 g	350	n	Oct 2019	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M3 was somewhat cheaper (by 3 percent) than the E-M10 IV at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

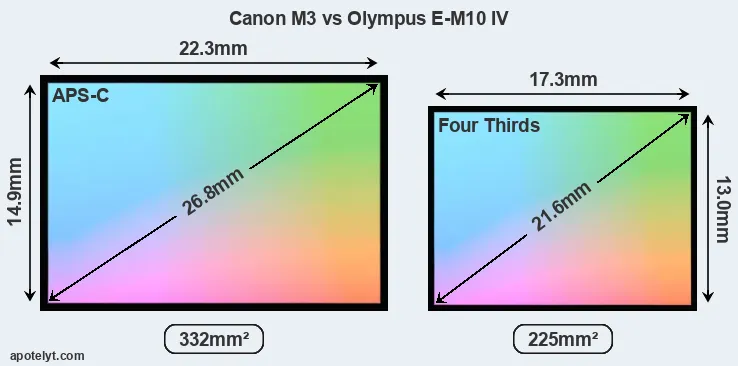

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon M3 features an APS-C sensor and the Olympus E-M10 IV a Four Thirds sensor. The sensor area in the E-M10 IV is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M3 has a native 3:2 aspect ratio, while the one in the E-M10 IV offers a 4:3 aspect.

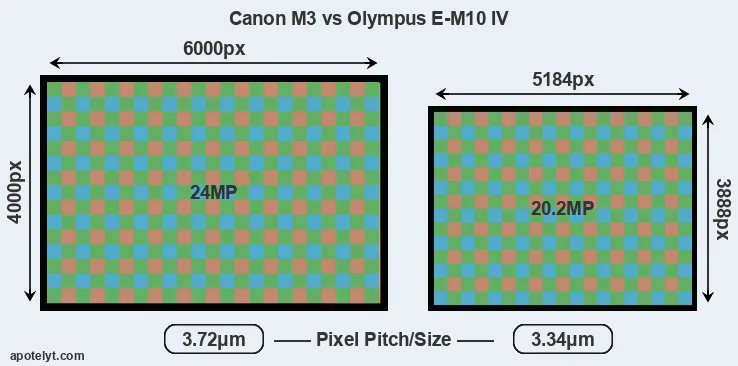

With 24MP, the M3 offers a higher resolution than the E-M10 IV (20.2MP), but the M3 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 3.34μm for the E-M10 IV) due to its larger sensor. However, the E-M10 IV is a much more recent model (by 5 years and 5 months) than the M3, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M10 IV has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M3 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M3 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M10 IV are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The M3 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M3 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus OM-D E-M10 Mark IV are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
2.		Olympus E-M10 IV	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.2	1402	76
3.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
4.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
5.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
6.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
7.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
8.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
9.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
10.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
11.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
12.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
13.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
14.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
15.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
16.		Olympus E-P7	Four Thirds	20.2	5184	3888	4K/30p	23.4	13.3	1494	77
17.		Olympus E-PL10	Four Thirds	15.9	4608	3456	4K/30p	23.3	13.1	1324	76
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-M10 IV provides a better video resolution than the M3. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M10 IV has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M3 relies on live view and the rear LCD for framing. That said, the M3 can be equipped with an optional viewfinder – the EVF-DC1. The adjacent table lists some of the other core features of the Canon M3 and Olympus E-M10 IV along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
2.		Olympus E-M10 IV	2360	n	3.0 / 1040	tilting	Y	1/4000s	15.0/s	Y	Y
3.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
4.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
5.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
6.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
7.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
8.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
9.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
10.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
11.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
14.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
15.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
16.		Olympus E-P7	none	n	3.0 / 1040	tilting	Y	1/4000s	8.7/s	Y	Y
17.		Olympus E-PL10	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-M10 IV and the M3 is in-body image stabilization (IBIS). The E-M10 IV reduces the risk of handshake-induced blur with all attached lenses, while the M3 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 IV is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M10 IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M3 and the E-M10 IV write their files to SDXC cards. The E-M10 IV supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M3 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M3 and Olympus OM-D E-M10 Mark IV and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
2.		Olympus E-M10 IV	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
11.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
13.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus E-P7	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
17.		Olympus E-PL10	Y	stereo / mono	-	-	micro	2.0	Y	-	Y

It is notable that the M3 has a microphone port, which is missing on the E-M10 IV. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

The E-M10 IV is a recent model that features in the current product line-up of Olympus. In contrast, the M3 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M3 was succeeded by the Canon M6. Further information on the features and operation of the M3 and E-M10 IV can be found, respectively, in the Canon M3 Manual (free pdf) or the online Olympus E-M10 IV Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon M3 or the Olympus E-M10 IV – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS M3:

• More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More compact: Is smaller (111x68mm vs 122x84mm) and thus needs less room in the bag.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More heavily discounted: Has been available for much longer (launched in February 2015).

Advantages of the Olympus OM-D E-M10 Mark IV:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Faster burst: Shoots at higher frequency (15 vs 4.2 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (360 versus 250) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 5 years and 5 months of technical progress since the M3 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the E-M10 IV is the clear winner of the contest (12 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M3 and the Olympus E-M10 IV place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M3 or the E-M10 IV. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
2.		Olympus E-M10 IV	4.5/5	..	5/5	81/100	4.5/5	4.5/5	Aug 2020	US$ 699	amazon.com
3.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
5.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
6.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
7.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
8.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
9.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	US$ 599	ebay.com
10.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
11.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
12.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
13.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
14.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
15.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	US$ 649	ebay.com
16.		Olympus E-P7	4/5	..	4.5/5	..	..	4.5/5	Jun 2021	US$ 799	amazon.com
17.		Olympus E-PL10	..	..	4/5	77/100	..	4/5	Oct 2019	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
