Canon M5 vs R1

The Canon EOS M5 and the Canon EOS R1 are two digital cameras that were officially introduced, respectively, in September 2016 and July 2024. Both the M5 and the R1 are mirrorless interchangeable lens cameras that are based on an APS-C (M5) and a full frame (R1) sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M5		Canon R1
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Canon RF mount lenses
24 MP – APS-C sensor		24 MP – Full Frame sensor
1080/60p Video		6K/60p Video
ISO 100-25,600		ISO 100-102,400 (50 - 409,600)
Electronic viewfinder (2360k dots)		Electronic viewfinder (9440k dots)
3.2" LCD – 1620k dots		3.2" LCD – 2100k dots
Tilting touchscreen		Swivel touchscreen
9 shutter flaps per second		12 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
295 shots per battery charge		1330 shots per battery charge
116 x 89 x 61 mm, 427 g		158 x 150 x 87 mm, 1115 g

Check M5 offers at
ebay.com
Check R1 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Canon EOS R1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

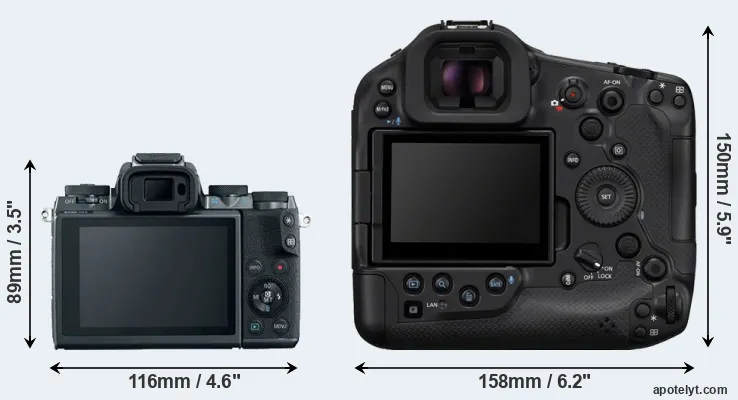

An illustration of the physical size and weight of the Canon M5 and the Canon R1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R1 is considerably larger (130 percent) than the Canon M5. Moreover, the R1 is substantially heavier (161 percent) than the M5. It is noteworthy in this context that the R1 is splash and dust-proof, while the M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M5 gets 295 shots out of its Canon LP-E17 battery, while the R1 can take 1330 images on a single charge of its Canon LP-E19 power pack. As can be seen in the images above, the R1 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the R1 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	EUR 1 129	ebay.com
2.		Canon R1	158 mm	150 mm	87 mm	1115 g	1330	Y	Jul 2024	EUR 7 499	amazon.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	EUR 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	EUR 599	ebay.com
5.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	EUR 749	ebay.com
6.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	EUR 499	ebay.com
7.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	EUR 749	ebay.com
8.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	EUR 799	ebay.com
9.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	EUR 479	ebay.com
10.		Canon R3	150 mm	143 mm	87 mm	1015 g	760	Y	Sep 2021	EUR 5 999	amazon.com
11.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	EUR 2 699	amazon.com
12.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	EUR 2 899	amazon.com
13.		Fujifilm GFX 100 II	152 mm	117 mm	99 mm	1030 g	540	Y	Sep 2023	EUR 7 999	amazon.com
14.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	EUR 799	ebay.com
15.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	EUR 799	ebay.com
16.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	EUR 819	ebay.com
17.		Sony A9 III	136 mm	97 mm	83 mm	702 g	530	Y	Nov 2023	EUR 6 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M5 was launched at a markedly lower price (by 84 percent) than the R1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

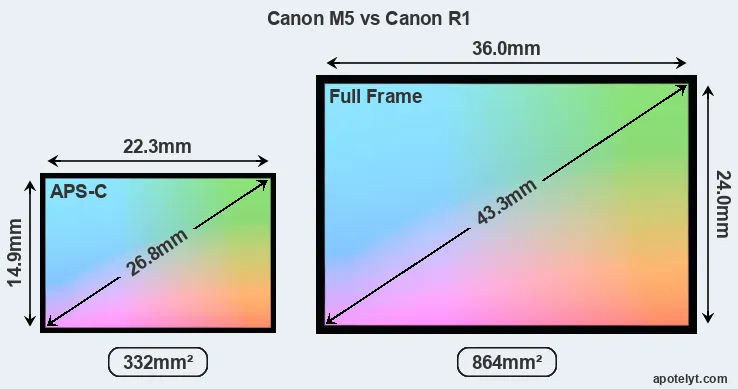

Of the two cameras under consideration, the Canon M5 features an APS-C sensor and the Canon R1 a full frame sensor. The sensor area in the R1 is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the R1 uses a more advanced image processing engine (DIGIC X) than the M5 (DIGIC 7), with benefits for noise reduction, color accuracy, and processing speed.

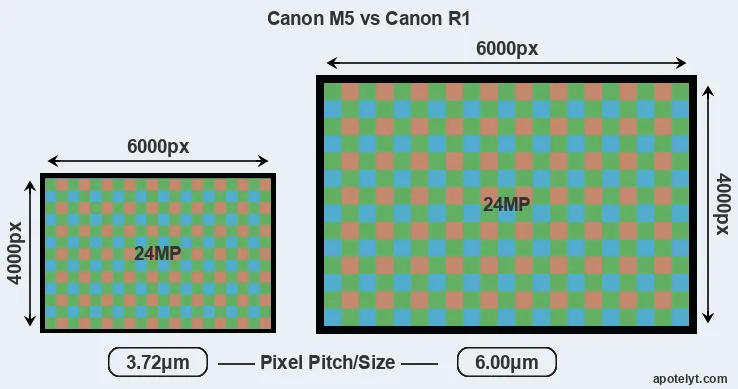

Even though the R1 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the R1 has a lower pixel density and larger individual pixels (with a pixel pitch of 6.00μm versus 3.72μm for the M5), which gives it a potential advantage in terms of light gathering capacity. In addition, the R1 is much more recent (by 7 years and 10 months) than the M5, and its sensor will have benefitted from technological advances during this time.

The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Canon EOS R1 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-409600.

In terms of underlying technology, the M5 is build around a CMOS sensor, while the R1 uses a Stacked BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
2.		Canon R1	Full Frame	24.0	6000	4000	6K/60p	25.4	14.8	3332	97
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
6.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
7.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
8.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
9.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
10.		Canon R3	Full Frame	24.0	6000	4000	6K/60p	25.0	14.7	4086	96
11.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
12.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
13.		Fujifilm GFX 100 II	Medium Format	101.8	11648	8736	8K/30p	25.9	15.0	3651	101
14.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
15.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
16.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
17.		Sony A9 III	Full Frame	24.0	6000	4000	4K/120p	25.4	14.7	3243	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R1 provides a better video resolution than the M5. It can shoot movie footage at 6K/60p, while the M5 is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the R1 offers a substantially higher resolution than the one in the M5 (9440k vs 2360k dots). The adjacent table lists some of the other core features of the Canon M5 and Canon R1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
2.		Canon R1	9440	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
7.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
8.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
10.		Canon R3	5760	Y	3.2 / 4150	swivel	Y	1/8000s	12.0/s	n	Y
11.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
12.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
13.		Fujifilm GFX 100 II	9440	Y	3.2 / 2360	full-flex	Y	1/4000s	8.0/s	n	Y
14.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
15.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
16.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
17.		Sony A9 III	9440	n	3.2 / 2100	full-flex	Y	1/80000s	120.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M5 has one, while the R1 does not. While the built-in flash of the M5 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The M5 writes its imaging data to SDXC cards, while the R1 uses CFexpress (type B) or SDXC cards. The R1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the M5 only has one slot. The R1 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M5 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Canon EOS R1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Canon R1	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
10.		Canon R3	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
11.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
12.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
13.		Fujifilm GFX 100 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
14.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
15.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
16.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
17.		Sony A9 III	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y

It is notable that the R1 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The M5 lacks such a headphone port.

Studio photographers will appreciate that the Canon R1 (unlike the M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The R1 is a recent model that features in the current product line-up of Canon. In contrast, the M5 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the M5 from Canon. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what conclusions can be drawn? Is the Canon M5 better than the Canon R1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS M5:

• More compact: Is smaller (116x89mm vs 158x150mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 688g or 62 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (84 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in September 2016).

Advantages of the Canon EOS R1:

• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 7).
• Better video: Provides higher definition movie capture (6K/60p vs 1080/60p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed viewfinder: Has higher resolution electronic viewfinder (9440k vs 2360k dots).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1620k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 9 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Gets more shots (1330 versus 295) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 7 years and 10 months of technical progress since the M5 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the R1 is the clear winner of the contest (26 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M5 and the Canon R1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the M5 and the R1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	EUR 1 129	ebay.com
2.		Canon R1	..	..	..	..	..	..	Jul 2024	EUR 7 499	amazon.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	EUR 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	EUR 599	ebay.com
5.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	EUR 749	ebay.com
6.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	EUR 499	ebay.com
7.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	EUR 749	ebay.com
8.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	EUR 799	ebay.com
9.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	EUR 479	ebay.com
10.		Canon R3	5/5	o	4.5/5	..	5/5	4.5/5	Sep 2021	EUR 5 999	amazon.com
11.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	EUR 2 699	amazon.com
12.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	EUR 2 899	amazon.com
13.		Fujifilm GFX 100 II	5/5	+	5/5	..	..	4.5/5	Sep 2023	EUR 7 999	amazon.com
14.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	EUR 799	ebay.com
15.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	EUR 799	ebay.com
16.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	EUR 819	ebay.com
17.		Sony A9 III	4.5/5	..	..	91/100	..	..	Nov 2023	EUR 6 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check M5 offers at
ebay.com
Check R1 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check M5 offers at
ebay.com
Check R1 price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
