Canon M5 vs Nikon D3X

The Canon EOS M5 and the Nikon D3X are two digital cameras that were revealed to the public, respectively, in September 2016 and December 2008. The M5 is a mirrorless interchangeable lens camera, while the D3X is a DSLR. The cameras are based on an APS-C (M5) and a full frame (D3X) sensor. The Canon has a resolution of 24 megapixels, whereas the Nikon provides 24.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M5		Nikon D3X
Mirrorless system camera		Digital single lens reflex
Canon EF-M mount lenses		Nikon F mount lenses
24 MP – APS-C sensor		24.4 MP – Full Frame sensor
1080/60p Video		no Video
ISO 100-25,600		ISO 100-1,600 (50 - 6,400)
Electronic viewfinder (2360k dots)		Optical viewfinder
3.2" LCD – 1620k dots		3.0" LCD – 922k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
9 shutter flaps per second		5 shutter flaps per second
not weather sealed		Weathersealed body
295 shots per battery charge		4400 shots per battery charge
116 x 89 x 61 mm, 427 g		160 x 157 x 88 mm, 1260 g

Check M5 offers at
ebay.com
Check D3X offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Nikon D3X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

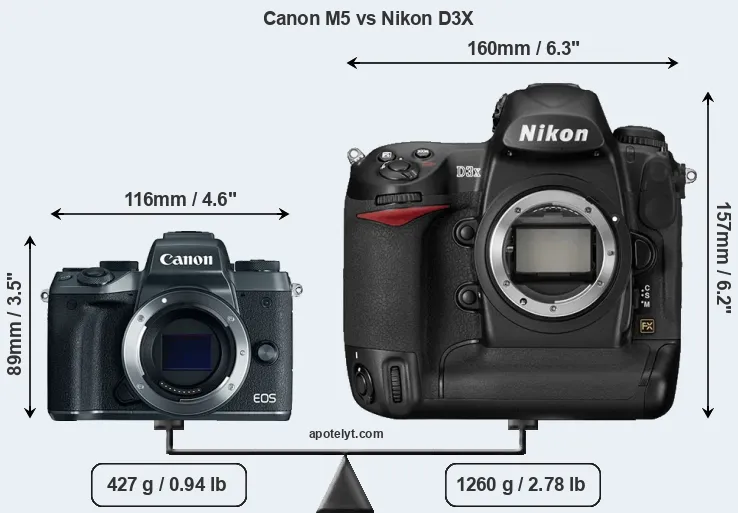

The physical size and weight of the Canon M5 and the Nikon D3X are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3X is considerably larger (143 percent) than the Canon M5. Moreover, the D3X is substantially heavier (195 percent) than the M5. It is noteworthy in this context that the D3X is splash and dust-proof, while the M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M5 gets 295 shots out of its Canon LP-E17 battery, while the D3X can take 4400 images on a single charge of its Nikon EN-EL4a power pack. As can be seen in the images above, the D3X has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
2.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	US$ 7 999	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
5.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
6.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
7.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
8.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
9.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
10.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
11.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
12.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	US$ 4 999	ebay.com
13.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	US$ 5 999	ebay.com
14.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	US$ 6 499	ebay.com
15.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
16.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	US$ 2 299	ebay.com
17.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M5 was launched at a markedly lower price (by 88 percent) than the D3X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M5 features an APS-C sensor and the Nikon D3X a full frame sensor. The sensor area in the D3X is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 24.4MP, the D3X offers a higher resolution than the M5 (24MP), but the D3X nevertheless has larger individual pixels (pixel pitch of 5.94μm versus 3.72μm for the M5) due to its larger sensor. However, the M5 is a much more recent model (by 7 years and 9 months) than the D3X, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Nikon D3X are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 50-6400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the D3X offers substantially better image quality than the M5 (overall score 11 points higher). The advantage is based on 1.3 bits higher color depth, 1.3 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
2.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
5.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
6.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
7.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
8.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
9.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
10.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
11.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
12.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
13.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
14.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
15.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
16.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
17.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The M5 indeed provides movie recording capabilities, while the D3X does not. The highest resolution format that the M5 can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), while the D3X has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon M5 and Nikon D3X in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
2.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
5.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
7.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
8.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
9.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
13.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
14.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
15.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
16.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
17.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M5 has one, while the D3X does not. While the built-in flash of the M5 is not very powerful, it can at times be useful as a fill-in light.

The Nikon D3X has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The M5 writes its imaging data to SDXC cards, while the D3X uses Compact Flash cards. The D3X features dual card slots, which can be very useful in case a memory card fails. In contrast, the M5 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Nikon D3X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
13.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
14.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
15.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
16.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
17.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-

It is notable that the M5 offers wifi support, while the D3X does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Nikon D3X (unlike the M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the M5 and the D3X have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Nikon. Further information on the features and operation of the M5 and D3X can be found, respectively, in the Canon M5 Manual (free pdf) or the online Nikon D3X Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon M5 or the Nikon D3X – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS M5:

• Broader imaging potential: Can record not only still images but also 1080/60p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 922k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (116x89mm vs 160x157mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 833g or 66 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
• More modern: Reflects 7 years and 9 months of technical progress since the D3X launch.

Reasons to prefer the Nikon D3X:

• Better image quality: Scores substantially higher (11 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.3 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Gets more shots (4400 versus 295) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in December 2008).

If the number of relative strengths (bullet points above) is taken as a guide, the M5 is the clear winner of the match-up (18 : 14 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M5 and the Nikon D3X place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M5 and the D3X in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
2.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	US$ 7 999	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
5.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
6.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
7.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
8.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
9.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
10.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
11.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
12.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	US$ 4 999	ebay.com
13.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	US$ 5 999	ebay.com
14.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	US$ 6 499	ebay.com
15.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
16.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	US$ 2 299	ebay.com
17.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check M5 offers at
ebay.com
Check D3X offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check M5 offers at
ebay.com
Check D3X offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
