Canon M6 vs SX510

The Canon EOS M6 and the Canon PowerShot SX510 HS are two digital cameras that were revealed to the public, respectively, in February 2017 and August 2013. The M6 is a mirrorless interchangeable lens camera, while the SX510 is a fixed lens compact. The cameras are based on an APS-C (M6) and a 1/2.3-inch (SX510) sensor. The M6 has a resolution of 24 megapixels, whereas the SX510 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M6		Canon SX510
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		24-720mm f/3.4-5.8
24 MP – APS-C sensor		15.9 MP – 1/2.3" sensor
1080/60p Video		1080/24p Video
ISO 100-25,600		ISO 80-3,200
Viewfinder optional		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 461k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
9 shutter flaps per second		3.8 shutter flaps per second
295 shots per battery charge		250 shots per battery charge
112 x 68 x 45 mm, 390 g		104 x 70 x 80 mm, 349 g

Check M6 offers at
ebay.com
Check SX510 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M6 and the Canon PowerShot SX510 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon M6 and the Canon SX510 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The M6 can be obtained in two different colors (black, silver), while the SX510 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX510 is somewhat smaller (4 percent) than the Canon M6. In this context, it is worth noting that neither the M6 nor the SX510 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX510 has a lens built in, whereas the M6 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the M6 gets 295 shots out of its Canon LP-E17 battery, while the SX510 can take 250 images on a single charge of its Canon NB-6LH power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	EUR 799	ebay.com
2.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	EUR 329	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	EUR 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	EUR 599	ebay.com
5.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	EUR 499	amazon.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	EUR 685	ebay.com
7.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	EUR 599	ebay.com
8.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	EUR 749	ebay.com
9.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	EUR 1 129	ebay.com
10.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	EUR 929	ebay.com
11.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	EUR 779	ebay.com
12.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	EUR 479	ebay.com
13.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	EUR 179	ebay.com
14.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	EUR 319	ebay.com
15.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	EUR 299	ebay.com
16.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	EUR 1 749	ebay.com
17.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	EUR 819	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX510 was launched at a lower price than the M6, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

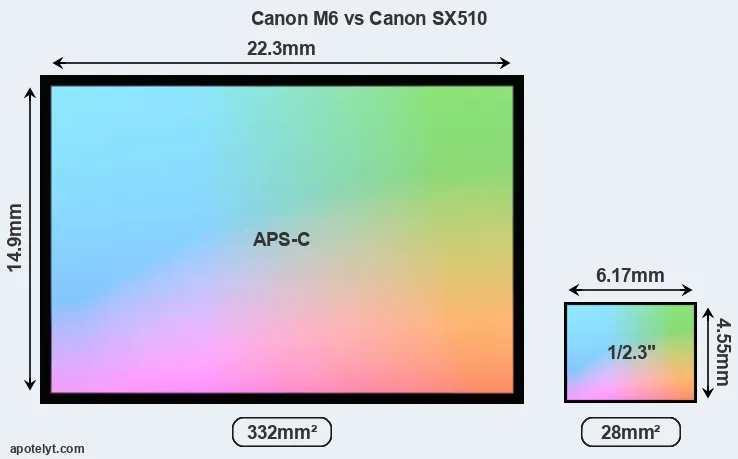

Of the two cameras under consideration, the Canon M6 features an APS-C sensor and the Canon SX510 a 1/2.3-inch sensor. The sensor area in the SX510 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the M6 has a native 3:2 aspect ratio, while the one in the SX510 offers a 4:3 aspect.

In terms of chip-set technology, the M6 uses a more advanced image processing engine (DIGIC 7) than the SX510 (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

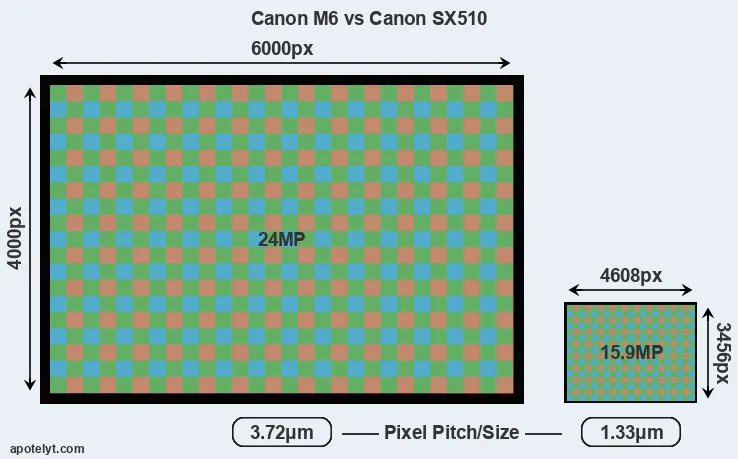

With 24MP, the M6 offers a higher resolution than the SX510 (15.9MP), but the M6 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.33μm for the SX510) due to its larger sensor. Moreover, the M6 is a much more recent model (by 3 years and 5 months) than the SX510, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX510 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX510 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The M6 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M6 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Canon PowerShot SX510 HS are ISO 80 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
2.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
8.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
9.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
10.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
11.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
12.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
13.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
14.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
15.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
16.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
17.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the M6 provides a higher frame rate than the SX510. It can shoot video footage at 1080/60p, while the SX510 is limited to 1080/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The M6 and the SX510 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the M6 can be equipped with an optional viewfinder – the EVF-DC2. The following table reports on some other key feature differences and similarities of the Canon M6, the Canon SX510, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
2.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
8.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
9.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
10.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
11.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
12.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
13.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
14.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
15.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
16.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
17.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M6 has a touchscreen, while the SX510 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon M6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M6 and the SX510 write their files to SDXC cards. The M6 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX510 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M6 and Canon PowerShot SX510 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
11.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
12.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
13.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
14.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
15.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
16.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
17.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y

It is notable that the M6 has a hotshoe, while the SX510 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the M6 and the SX510 have been discontinued, but can regularly be found used on ebay. The SX510 was replaced by the Canon SX520, while the M6 was followed by the Canon M6 Mark II. Further information on the features and operation of the M6 and SX510 can be found, respectively, in the Canon M6 Manual (free pdf) or the online Canon SX510 Manual.

Review summary

So how do things add up? Is the Canon M6 better than the Canon SX510 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS M6:

• More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 4).
• Better video: Provides higher movie framerates (1080/60p versus 1080/24p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 461k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 3.8 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (295 versus 250) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 3 years and 5 months of technical progress since the SX510 launch.

Arguments in favor of the Canon PowerShot SX510 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Has an integrated lens, whereas the M6 necessitates an extra lens.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the M6).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been around for much longer (launched in August 2013).

If the count of relative strengths (bullet points above) is taken as a measure, the M6 is the clear winner of the match-up (25 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M6 and the Canon SX510 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the M6 or the SX510 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	EUR 799	ebay.com
2.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	EUR 329	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	EUR 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	EUR 599	ebay.com
5.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	EUR 499	amazon.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	EUR 685	ebay.com
7.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	EUR 599	ebay.com
8.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	EUR 749	ebay.com
9.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	EUR 1 129	ebay.com
10.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	EUR 929	ebay.com
11.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	EUR 779	ebay.com
12.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	EUR 479	ebay.com
13.		Canon SX400	..	+	..	..	..	..	Jul 2014	EUR 179	ebay.com
14.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	EUR 319	ebay.com
15.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	EUR 299	ebay.com
16.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	EUR 1 749	ebay.com
17.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	EUR 819	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check M6 offers at
ebay.com
Check SX510 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check M6 offers at
ebay.com
Check SX510 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
