Canon SL2 vs Pentax K-S2

The Canon EOS Rebel SL2 (called Canon 200D in some regions) and the Pentax K-S2 are two digital cameras that were announced, respectively, in June 2017 and February 2015. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Pentax provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SL2		Pentax K-S2
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Pentax K mount lenses
24 MP – APS-C sensor		20 MP – APS-C sensor
1080/60p Video		1080/30p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-51,200
Optical viewfinder		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 921k dots
Swivel touchscreen		Swivel screen (not touch-sensitive)
5 shutter flaps per second		5.4 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
650 shots per battery charge		410 shots per battery charge
122 x 93 x 70 mm, 453 g		123 x 91 x 73 mm, 678 g

Check SL2 offers at
ebay.com
Check K-S2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL2 and the Pentax K-S2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon SL2 and the Pentax K-S2. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The SL2 can be obtained in two different colors (black, white), while the K-S2 is available in six color-versions (black, grey, pink, orange, green, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-S2 is somewhat smaller (1 percent) than the Canon SL2. However, the K-S2 is substantially heavier (50 percent) than the SL2. It is noteworthy in this context that the K-S2 is splash and dust-proof, while the SL2 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the SL2 gets 650 shots out of its Canon LP-E17 battery, while the K-S2 can take 410 images on a single charge of its Pentax D-LI109 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
2.		Pentax K-S2	123 mm	91 mm	73 mm	678 g	410	Y	Feb 2015	US$ 749	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
5.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
6.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
7.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
8.		Canon SL3	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	US$ 599	amazon.com
9.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
10.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
11.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
12.		Canon T7i	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	US$ 749	ebay.com
13.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
14.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	US$ 1 099	ebay.com
15.		Pentax K-70	126 mm	93 mm	74 mm	688 g	410	Y	Jun 2016	US$ 649	ebay.com
16.		Pentax KP	132 mm	101 mm	76 mm	703 g	390	Y	Jan 2017	US$ 1 099	ebay.com
17.		Pentax K-S1	121 mm	93 mm	70 mm	558 g	410	n	Aug 2014	US$ 749	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SL2 was launched at a markedly lower price (by 27 percent) than the K-S2, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the K-S2 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (SL2) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

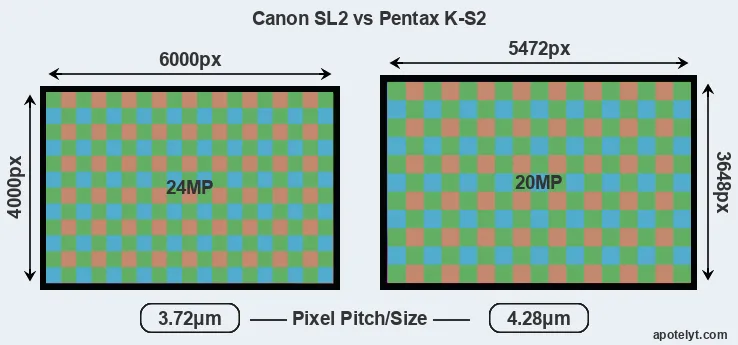

Despite having a smaller sensor, the Canon SL2 offers a higher resolution of 24 megapixels, compared with 20 MP of the Pentax K-S2. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.28μm for the K-S2). However, it should be noted that the SL2 is much more recent (by 2 years and 4 months) than the K-S2, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the K-S2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SL2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL2 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Pentax K-S2 are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The SL2 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS Rebel SL2 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Pentax K-S2 are ISO 100 to ISO 51200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
2.		Pentax K-S2	APS-C	20.0	5472	3648	1080/30p	23.6	12.9	1514	79
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
5.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
6.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
7.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
8.		Canon SL3	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
9.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
10.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
11.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
12.		Canon T7i	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
13.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
14.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
15.		Pentax K-70	APS-C	24.0	6000	4000	1080/60i	23.8	13.1	1639	80
16.		Pentax KP	APS-C	24.1	6016	4000	1080/60i	23.9	13.2	1699	81
17.		Pentax K-S1	APS-C	20.0	5472	3648	1080/30p	23.5	13.0	1061	78
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SL2 provides a higher frame rate than the K-S2. It can shoot video footage at 1080/60p, while the Pentax is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The SL2 and the K-S2 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the K-S2 offers a wider field of view (100%) than the one in the SL2 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the K-S2 has a higher magnification (0.63x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon SL2 and Pentax K-S2 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
2.		Pentax K-S2	optical	n	3.0 / 921	swivel	n	1/6000s	5.4/s	Y	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
5.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
7.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
8.		Canon SL3	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon T7i	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
13.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
14.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
15.		Pentax K-70	optical	n	3.0 / 921	swivel	n	1/6000s	6.0/s	Y	Y
16.		Pentax KP	optical	n	3.0 / 921	tilting	n	1/6000s	7.0/s	Y	Y
17.		Pentax K-S1	optical	n	3.0 / 921	fixed	n	1/6000s	5.4/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The SL2 has a touchscreen, while the K-S2 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon SL2 and the Pentax K-S2 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SL2 and the K-S2 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL2 and Pentax K-S2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Pentax K-S2	Y	mono / mono	Y	-	micro	2.0	Y	Y	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon SL3	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
9.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
10.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Canon T7i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
15.		Pentax K-70	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
16.		Pentax KP	Y	stereo / mono	Y	-	-	2.0	Y	-	-
17.		Pentax K-S1	Y	stereo / mono	-	-	micro	2.0	-	-	-

Both the SL2 and the K-S2 have been discontinued, but can regularly be found used on ebay. The SL2 was replaced by the Canon SL2, while the K-S2 does not have a direct successor. Further information on the features and operation of the SL2 and K-S2 can be found, respectively, in the Canon SL2 Manual (free pdf) or the online Pentax K-S2 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon SL2 and the Pentax K-S2? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS Rebel SL2:

• More detail: Offers more megapixels (24 vs 20MP) with a 10% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Less heavy: Is lighter (by 225g or 33 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (650 versus 410) on a single battery charge.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (27 percent cheaper at launch).
• More modern: Reflects 2 years and 4 months of technical progress since the K-S2 launch.

Advantages of the Pentax K-S2:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.54x).
• Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/4000s) to freeze action.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More heavily discounted: Has been around for much longer (launched in February 2015).

If the number of relative strengths (bullet points above) is taken as a guide, the SL2 is the clear winner of the match-up (11 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SL2 and the Pentax K-S2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SL2 and the K-S2 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
2.		Pentax K-S2	4.5/5	..	..	..	5/5	4.5/5	Feb 2015	US$ 749	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
5.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
6.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
7.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
8.		Canon SL3	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	US$ 599	amazon.com
9.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
10.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
11.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
12.		Canon T7i	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	US$ 749	ebay.com
13.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
14.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	US$ 1 099	ebay.com
15.		Pentax K-70	4.5/5	..	4/5	79/100	4.5/5	4.5/5	Jun 2016	US$ 649	ebay.com
16.		Pentax KP	4/5	..	3/5	82/100	5/5	4.5/5	Jan 2017	US$ 1 099	ebay.com
17.		Pentax K-S1	4/5	..	..	..	4.5/5	4/5	Aug 2014	US$ 749	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check SL2 offers at
ebay.com
Check K-S2 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check SL2 offers at
ebay.com
Check K-S2 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
