Canon SX510 vs SX700

The Canon PowerShot SX510 HS and the Canon PowerShot SX700 HS are two digital cameras that were revealed to the public, respectively, in August 2013 and February 2014. Both the SX510 and the SX700 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. Both cameras offer a resolution of 15.9 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX510		Canon SX700
Fixed lens compact camera		Fixed lens compact camera
24-720mm f/3.4-5.8		25-750mm f/3.2-6.9
15.9 MP – 1/2.3" sensor		15.9 MP – 1/2.3" sensor
1080/24p Video		1080/60p Video
ISO 80-3,200		ISO 100-3,200
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 461k dots		3.0" LCD – 922k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3.8 shutter flaps per second		8.5 shutter flaps per second
250 shots per battery charge		250 shots per battery charge
104 x 70 x 80 mm, 349 g		113 x 66 x 35 mm, 269 g

Check SX510 offers at
ebay.com
Check SX700 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Canon PowerShot SX700 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

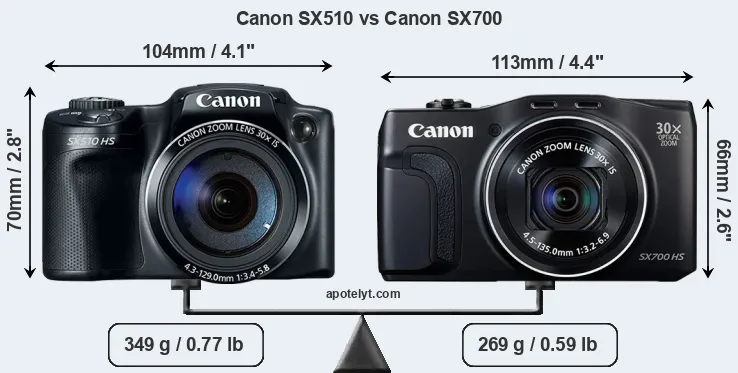

The physical size and weight of the Canon SX510 and the Canon SX700 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The SX700 can be obtained in two different colors (black, red), while the SX510 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX700 is somewhat larger (2 percent) than the Canon SX510. However, the SX700 is markedly lighter (23 percent) than the SX510. In this context, it is worth noting that neither the SX510 nor the SX700 are weather-sealed.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	EUR 329	ebay.com
2.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	EUR 349	ebay.com
3.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	EUR 579	ebay.com
4.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	EUR 599	ebay.com
5.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	EUR 499	ebay.com
6.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	EUR 179	ebay.com
7.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	EUR 299	ebay.com
8.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	EUR 319	ebay.com
9.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	EUR 299	ebay.com
10.		Canon SX600	104 mm	61 mm	26 mm	188 g	290	n	Jan 2014	EUR 249	ebay.com
11.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	EUR 299	ebay.com
12.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	EUR 399	ebay.com
13.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	EUR 1 749	ebay.com
14.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	EUR 249	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX510 was launched at a markedly lower price (by 29 percent) than the SX700, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the SX700 uses a more advanced image processing engine (DIGIC 6) than the SX510 (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the SX510 and the SX700 have the same pixel density, as well as the same pixel size. It should, however, be noted that the SX700 is a somewhat more recent model (by 5 months) than the SX510, and its sensor might have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Canon PowerShot SX700 HS are ISO 100 to ISO 3200 (no boost).

In terms of underlying technology, the SX510 is build around a CMOS sensor, while the SX700 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
2.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
3.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
4.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
5.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
6.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
7.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
8.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
9.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
10.		Canon SX600	1/2.3	15.9	4608	3456	1080/30p	20.0	11.4	620	45
11.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
12.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
13.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
14.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX700 provides a faster frame rate than the SX510. It can shoot movie footage at 1080/60p, while the SX510 is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The SX510 and the SX700 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Canon SX510 and Canon SX700 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
2.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
3.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
4.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
5.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
6.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
7.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
9.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
10.		Canon SX600	none	n	3.0 / 461	fixed	n	1/2000s	3.9/s	Y	Y
11.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
12.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
13.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
14.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX510 and the SX700 have zoom lenses built in. The SX510 has a 24-720mm f/3.4-5.8 optic and the SX700 offers a 25-750mm f/3.2-6.9 (focal lengths in full frame equivalent terms). Hence, the SX510 provides a wider angle of view at the short end than the SX700, but less tele-photo reach at the long end. The SX700 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX510 and the SX700 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Canon PowerShot SX700 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
5.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
7.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
8.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
9.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
10.		Canon SX600	-	mono / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
13.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
14.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-

Both the SX510 and the SX700 have been discontinued, but can regularly be found used on ebay. The SX510 was replaced by the Canon SX520, while the SX700 was followed by the Canon SX710. Further information on the features and operation of the SX510 and SX700 can be found, respectively, in the Canon SX510 Manual (free pdf) or the online Canon SX700 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon SX510 and the Canon SX700? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Canon PowerShot SX510 HS:

• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More affordable: Was introduced into a lower priced category (29 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in August 2013).

Reasons to prefer the Canon PowerShot SX700 HS:

• Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 4).
• Better video: Provides higher movie framerates (1080/60p versus 1080/24p).
• More detailed LCD: Has a higher resolution rear screen (922k vs 461k dots).
• Faster shutter: Has higher mechanical shutter speed (1/3200s vs 1/1600s) to freeze action.
• Faster burst: Shoots at higher frequency (8.5 vs 3.8 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/3.2 vs f/3.4).
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Less heavy: Has a lower weight (by 80g or 23 percent) and is thus easier to take along.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More modern: Was introduced somewhat (5 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the SX700 is the clear winner of the contest (10 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX510 and the Canon SX700 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX510 or the SX700. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	EUR 329	ebay.com
2.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	EUR 349	ebay.com
3.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	EUR 579	ebay.com
4.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	EUR 599	ebay.com
5.		Canon M10	..	..	..	..	..	4/5	Oct 2015	EUR 499	ebay.com
6.		Canon SX400	..	+	..	..	..	..	Jul 2014	EUR 179	ebay.com
7.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	EUR 299	ebay.com
8.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	EUR 319	ebay.com
9.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	EUR 299	ebay.com
10.		Canon SX600	..	+	..	..	4/5	4/5	Jan 2014	EUR 249	ebay.com
11.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	EUR 299	ebay.com
12.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	EUR 399	ebay.com
13.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	EUR 1 749	ebay.com
14.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	EUR 249	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
