Canon SX510 vs Ricoh GR

The Canon PowerShot SX510 HS and the Ricoh GR are two digital cameras that were announced, respectively, in August 2013 and April 2013. Both the SX510 and the GR are fixed lens compact cameras that are based on a 1/2.3-inch (SX510) and an APS-C (GR) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Ricoh provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX510		Ricoh GR
Fixed lens compact camera		Fixed lens compact camera
24-720mm f/3.4-5.8		28mm f/2.8
15.9 MP – 1/2.3" sensor		16.1 MP – APS-C sensor
1080/24p Video		1080/30p Video
ISO 80-3,200		ISO 100-25,600
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 461k dots		3.0" LCD – 1230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3.8 shutter flaps per second		4 shutter flaps per second
250 shots per battery charge		290 shots per battery charge
104 x 70 x 80 mm, 349 g		117 x 61 x 35 mm, 245 g

Check SX510 offers at
ebay.com
Check GR offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Ricoh GR? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

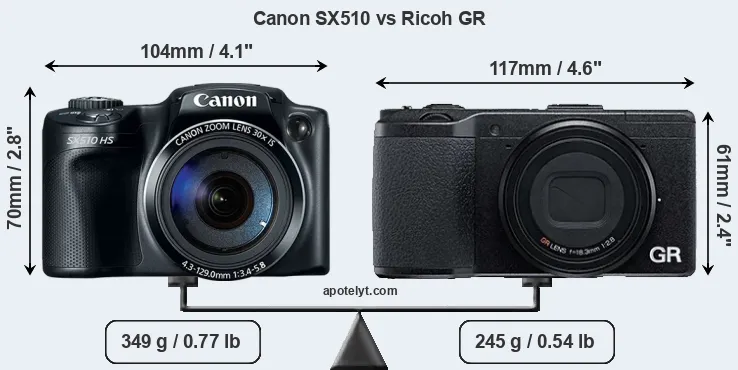

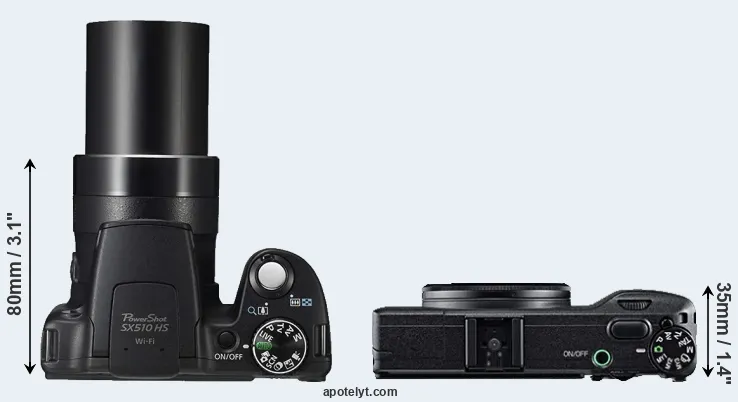

An illustration of the physical size and weight of the Canon SX510 and the Ricoh GR is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Ricoh GR is somewhat smaller (2 percent) than the Canon SX510. Moreover, the GR is markedly lighter (30 percent) than the SX510. In this context, it is worth noting that neither the SX510 nor the GR are weather-sealed.

Concerning battery life, the SX510 gets 250 shots out of its Canon NB-6LH battery, while the GR can take 290 images on a single charge of its Ricoh DB-65 power pack. The power pack in the GR can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
2.		Ricoh GR	117 mm	61 mm	35 mm	245 g	290	n	Apr 2013	US$ 799	ebay.com
3.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
4.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
5.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	US$ 249	ebay.com
6.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
7.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	US$ 329	ebay.com
8.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	US$ 399	ebay.com
9.		Canon SX600	104 mm	61 mm	26 mm	188 g	290	n	Jan 2014	US$ 249	ebay.com
10.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
11.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
12.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	US$ 749	ebay.com
13.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	US$ 749	ebay.com
14.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
15.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	US$ 249	ebay.com
16.		Sony RX100 II	102 mm	58 mm	38 mm	281 g	350	n	Jun 2013	US$ 749	ebay.com
17.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX510 was launched at a markedly lower price (by 69 percent) than the GR, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

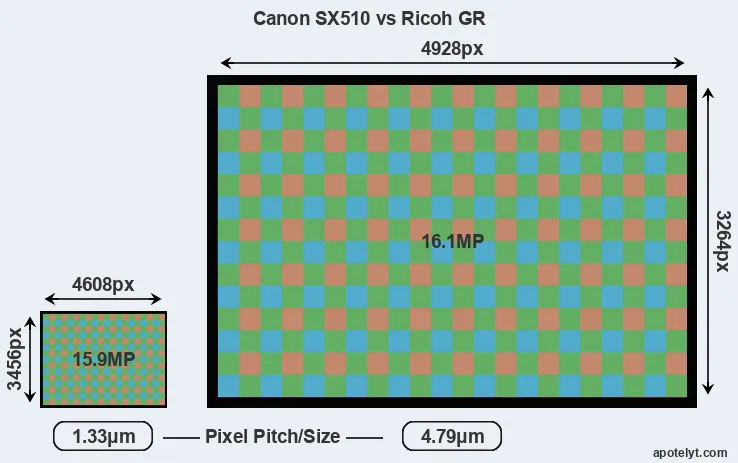

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX510 features a 1/2.3-inch sensor and the Ricoh GR an APS-C sensor. The sensor area in the GR is 1221 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX510 has a native 4:3 aspect ratio, while the one in the GR offers a 3:2 aspect.

With 16.1MP, the GR offers a higher resolution than the SX510 (15.9MP), but the GR nevertheless has larger individual pixels (pixel pitch of 4.79μm versus 1.33μm for the SX510) due to its larger sensor. However, the SX510 is a somewhat more recent model (by 4 months) than the GR, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Ricoh GR are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
2.		Ricoh GR	APS-C	16.1	4928	3264	1080/30p	23.6	13.5	972	78
3.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
4.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
5.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
6.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
7.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
8.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
9.		Canon SX600	1/2.3	15.9	4608	3456	1080/30p	20.0	11.4	620	45
10.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
11.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
12.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
13.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
14.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
15.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
16.		Sony RX100 II	1-inch	20.0	5472	3648	1080/60p	22.5	12.4	483	67
17.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the GR provides a faster frame rate than the SX510. It can shoot movie footage at 1080/30p, while the Canon is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The SX510 and the GR are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the GR can be equipped with an optional viewfinder – the GV-1. The table below summarizes some of the other core capabilities of the Canon SX510 and Ricoh GR in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
2.		Ricoh GR	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
3.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
4.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
5.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
6.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
8.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
9.		Canon SX600	none	n	3.0 / 461	fixed	n	1/2000s	3.9/s	Y	Y
10.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
11.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
12.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
13.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
14.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
15.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
16.		Sony RX100 II	optional	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Ricoh GR has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The SX510 is equipped with a zoom lens, while the GR comes with a built-in prime. The SX510 has a 24-720mm f/3.4-5.8 optic and the GR offers a 28mm f/2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Ricoh. The GR offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX510 and the GR write their files to SDXC cards. The GR supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX510 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Ricoh GR and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Ricoh GR	Y	mono / mono	-	-	micro	2.0	-	-	-
3.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
5.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
6.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
7.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
8.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
9.		Canon SX600	-	mono / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
12.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-
16.		Sony RX100 II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the SX510 offers wifi support, while the GR does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX510 and the GR have been discontinued, but can regularly be found used on ebay. The GR was replaced by the Ricoh GR II, while the SX510 was followed by the Canon SX520. Further information on the features and operation of the SX510 and GR can be found, respectively, in the Canon SX510 Manual (free pdf) or the online Ricoh GR Manual.

Review summary

So how do things add up? Is the Canon SX510 better than the Ricoh GR or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon PowerShot SX510 HS:

• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced into a lower priced category (69 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 4 months after the GR).

Reasons to prefer the Ricoh GR:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/30p versus 1080/24p).
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 461k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.4).
• Less heavy: Has a lower weight (by 104g or 30 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (290 versus 250) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been on the market for longer (launched in April 2013).

If the count of individual advantages (bullet points above) is taken as a guide, the GR is the clear winner of the contest (16 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX510 and the Ricoh GR place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the SX510 and the GR in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
2.		Ricoh GR	5/5	..	..	79/100	4.5/5	4.5/5	Apr 2013	US$ 799	ebay.com
3.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
4.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
5.		Canon SX400	..	+	..	..	..	..	Jul 2014	US$ 249	ebay.com
6.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
7.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	US$ 329	ebay.com
8.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	US$ 399	ebay.com
9.		Canon SX600	..	+	..	..	4/5	4/5	Jan 2014	US$ 249	ebay.com
10.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
11.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
12.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	US$ 749	ebay.com
13.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	US$ 749	ebay.com
14.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
15.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	US$ 249	ebay.com
16.		Sony RX100 II	5/5	+ +	..	79/100	4.5/5	4.5/5	Jun 2013	US$ 749	ebay.com
17.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
