Canon SX700 vs Panasonic LX5

The Canon PowerShot SX700 HS and the Panasonic Lumix DMC-LX5 are two digital cameras that were announced, respectively, in February 2014 and July 2010. Both the SX700 and the LX5 are fixed lens compact cameras that are based on a 1/2.3-inch (SX700) and a 1/1.7-inch (LX5) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Panasonic provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX700		Panasonic LX5
Fixed lens compact camera		Fixed lens compact camera
25-750mm f/3.2-6.9		24-90mm f/2.0-3.3
15.9 MP – 1/2.3" sensor		10 MP – 1/1.7" sensor
1080/60p Video		720/60p Video
ISO 100-3,200		ISO 80-3,200 (80 - 12,800)
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 922k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
8.5 shutter flaps per second		2.5 shutter flaps per second
250 shots per battery charge		400 shots per battery charge
113 x 66 x 35 mm, 269 g		110 x 65 x 43 mm, 271 g

Check SX700 offers at
ebay.com
Check LX5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX700 HS and the Panasonic Lumix DMC-LX5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

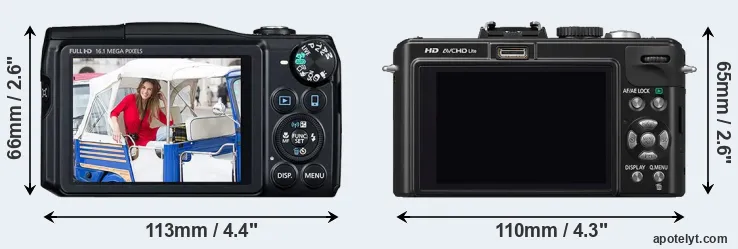

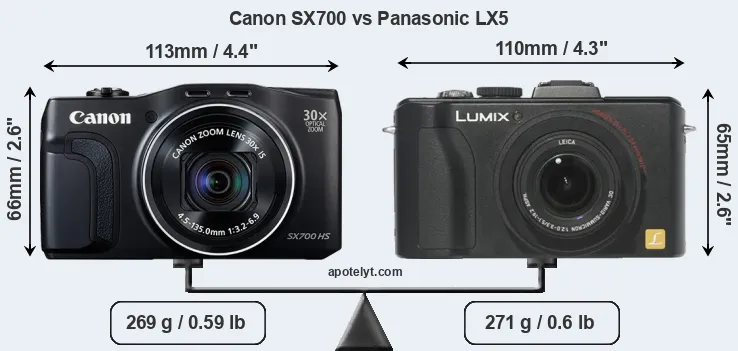

The physical size and weight of the Canon SX700 and the Panasonic LX5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The SX700 can be obtained in two different colors (black, red), while the LX5 is also available in two color-versions, but different ones (black, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX5 is somewhat smaller (4 percent) than the Canon SX700. However, the LX5 is slightly heavier (1 percent) than the SX700. In this context, it is worth noting that neither the SX700 nor the LX5 are weather-sealed.

Concerning battery life, the SX700 gets 250 shots out of its Canon NB-6LH battery, while the LX5 can take 400 images on a single charge of its Panasonic DMW-BCJ13 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
2.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
3.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	US$ 249	ebay.com
4.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
5.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
6.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	US$ 399	ebay.com
7.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	US$ 429	ebay.com
8.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
9.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
10.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
11.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
12.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
13.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
14.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
15.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	US$ 549	ebay.com
16.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
17.		Sony WX800	102 mm	58 mm	36 mm	233 g	370	n	Oct 2018	US$ 399	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX700 was launched at a markedly lower price (by 30 percent) than the LX5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

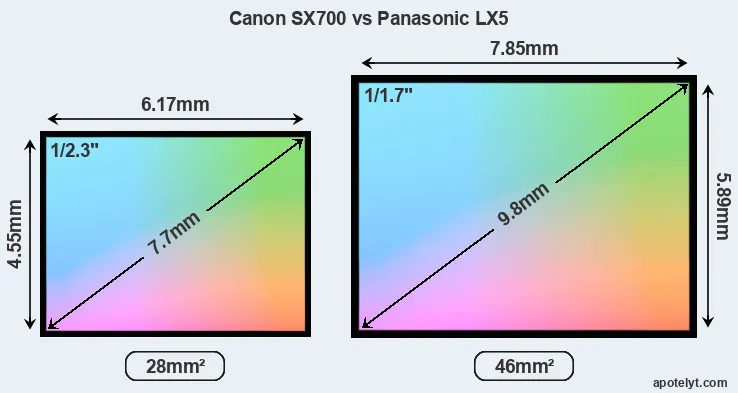

Of the two cameras under consideration, the Canon SX700 features a 1/2.3-inch sensor and the Panasonic LX5 a 1/1.7-inch sensor. The sensor area in the LX5 is 64 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 4.4. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3. The LX5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

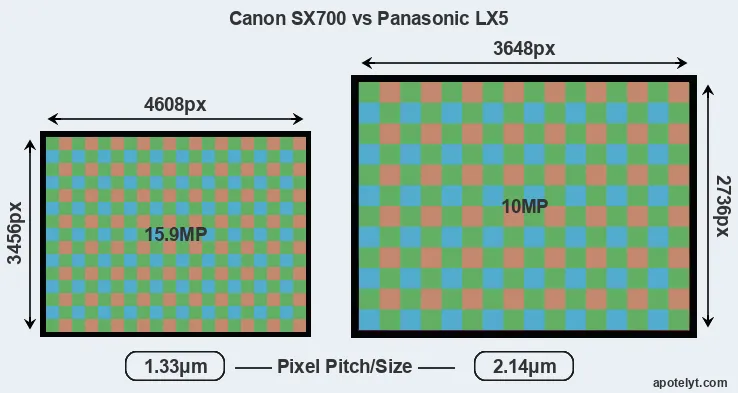

Despite having a smaller sensor, the Canon SX700 offers a higher resolution of 15.9 megapixels, compared with 10 MP of the Panasonic LX5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 2.14μm for the LX5). However, it should be noted that the SX700 is much more recent (by 3 years and 6 months) than the LX5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX700 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX700 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX700 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Panasonic LX5 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Canon PowerShot SX700 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-LX5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the SX700 is build around a BSI-CMOS sensor, while the LX5 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
2.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
3.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
4.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
5.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
6.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
7.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
8.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
9.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
10.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
11.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
12.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
13.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
14.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
15.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
16.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
17.		Sony WX800	1/2.3	18.0	4896	3672	4K/30p	20.6	12.2	1070	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX700 provides a higher video resolution than the LX5. It can shoot video footage at 1080/60p, while the Panasonic is limited to 720/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The SX700 and the LX5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the LX5 can be equipped with an optional viewfinder – the DMW-LVF1. The following table reports on some other key feature differences and similarities of the Canon SX700, the Panasonic LX5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
2.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
3.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
4.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
5.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
6.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
7.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
8.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
9.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
10.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
11.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
12.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
13.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
14.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
15.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
16.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
17.		Sony WX800	none	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX700 and the LX5 have zoom lenses built in. The SX700 has a 25-750mm f/3.2-6.9 optic and the LX5 offers a 24-90mm f/2.0-3.3 (focal lengths in full frame equivalent terms). Hence, the Panasonic provides a wider angle of view at the short end than the Canon, but less tele-photo reach at the long end. The LX5 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX700 and the LX5 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX700 HS and Panasonic Lumix DMC-LX5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
4.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
5.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
6.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
8.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
11.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
12.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
14.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony WX800	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the SX700 offers wifi support, while the LX5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX700 and the LX5 have been discontinued, but can regularly be found used on ebay. The LX5 was replaced by the Panasonic LX7, while the SX700 was followed by the Canon SX710. Further information on the features and operation of the SX700 and LX5 can be found, respectively, in the Canon SX700 Manual (free pdf) or the online Panasonic LX5 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon SX700 and the Panasonic LX5? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot SX700 HS:

• More detail: Offers more megapixels (15.9 vs 10MP) with a 26% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (1080/60p vs 720/60p).
• More detailed LCD: Has a higher resolution rear screen (922k vs 460k dots).
• Faster burst: Shoots at higher frequency (8.5 vs 2.5 flaps/sec) to capture the decisive moment.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).
• More modern: Reflects 3 years and 6 months of technical progress since the LX5 launch.

Arguments in favor of the Panasonic Lumix DMC-LX5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/3.2).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Longer lasting: Gets more shots (400 versus 250) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in July 2010).

If the count of relative strengths (bullet points above) is taken as a measure, the LX5 emerges as the winner of the match-up (13 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX700 and the Panasonic LX5 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX700 or the LX5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
2.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
3.		Canon SX400	..	+	..	..	..	..	Jul 2014	US$ 249	ebay.com
4.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
5.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
6.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	US$ 399	ebay.com
7.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	US$ 429	ebay.com
8.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
9.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
10.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
11.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
12.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
13.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
14.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
15.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	US$ 549	ebay.com
16.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
17.		Sony WX800	..	..	..	..	..	..	Oct 2018	US$ 399	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check SX700 offers at
ebay.com
Check LX5 offers at
ebay.com
