Canon SX740 vs Panasonic GH1

The Canon PowerShot SX740 HS and the Panasonic Lumix DMC-GH1 are two digital cameras that were officially introduced, respectively, in July 2018 and March 2009. The SX740 is a fixed lens compact, while the GH1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX740) and a Four Thirds (GH1) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX740		Panasonic GH1
Fixed lens compact camera		Mirrorless system camera
24-960mm f/3.3-6.9		Micro Four Thirds lenses
20.2 MP – 1/2.3" sensor		12 MP – Four Thirds sensor
4K/30p Video		1080/24p Video
ISO 100-3,200		ISO 100-1,600 (100 - 3,200)
No viewfinder, LCD framing		Electronic viewfinder (1440k dots)
3.0" LCD – 922k dots		3.0" LCD – 460k dots
Tilting screen (no touchscreen)		Swivel screen (not touch-sensitive)
10 shutter flaps per second		3 shutter flaps per second
265 shots per battery charge		300 shots per battery charge
110 x 64 x 40 mm, 299 g		124 x 90 x 45 mm, 385 g

Check SX740 price at
amazon.com
Check GH1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX740 HS and the Panasonic Lumix DMC-GH1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

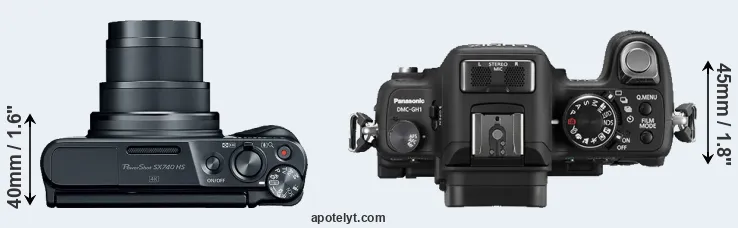

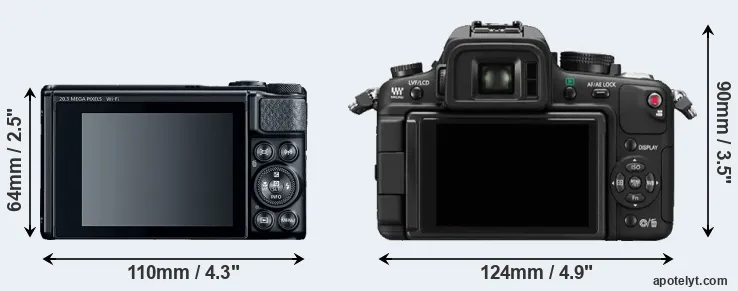

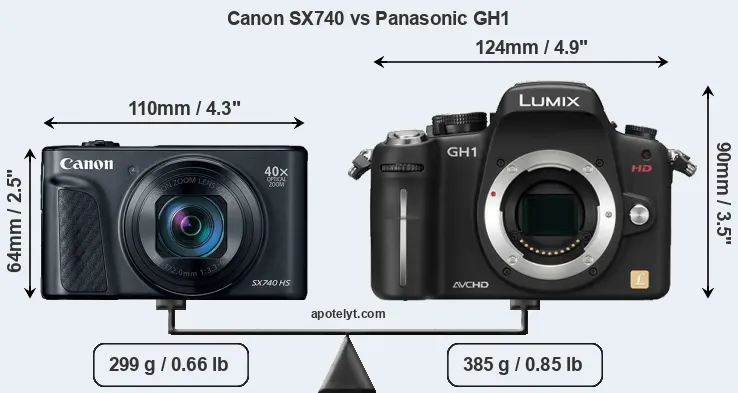

The side-by-side display below illustrates the physical size and weight of the Canon SX740 and the Panasonic GH1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The SX740 can be obtained in two different colors (black, silver), while the GH1 is also available in two color-versions, but different ones (black, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH1 is considerably larger (59 percent) than the Canon SX740. In this context, it is worth noting that neither the SX740 nor the GH1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX740 has a lens built in, whereas the GH1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GH1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX740 gets 265 shots out of its Canon NB-13L battery, while the GH1 can take 300 images on a single charge of its Panasonic DMW-BLB13 power pack. The power pack in the SX740 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	EUR 399	amazon.com
2.		Panasonic GH1	124 mm	90 mm	45 mm	385 g	300	n	Mar 2009	EUR 799	ebay.com
3.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	EUR 929	ebay.com
4.		Canon G7 X Mark III	105 mm	61 mm	41 mm	304 g	235	n	Jul 2019	EUR 779	amazon.com
5.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	EUR 499	ebay.com
6.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	EUR 479	ebay.com
7.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	EUR 299	ebay.com
8.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	EUR 299	ebay.com
9.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	EUR 329	ebay.com
10.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	EUR 399	ebay.com
11.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	EUR 499	ebay.com
12.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	EUR 549	ebay.com
13.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	EUR 499	ebay.com
14.		Panasonic GF1	119 mm	71 mm	36 mm	385 g	380	n	Sep 2009	EUR 649	ebay.com
15.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	EUR 899	ebay.com
16.		Panasonic TZ90	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	EUR 429	ebay.com
17.		Panasonic TZ95	112 mm	69 mm	42 mm	327 g	380	n	Feb 2019	EUR 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX740 was launched at a lower price than the GH1, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

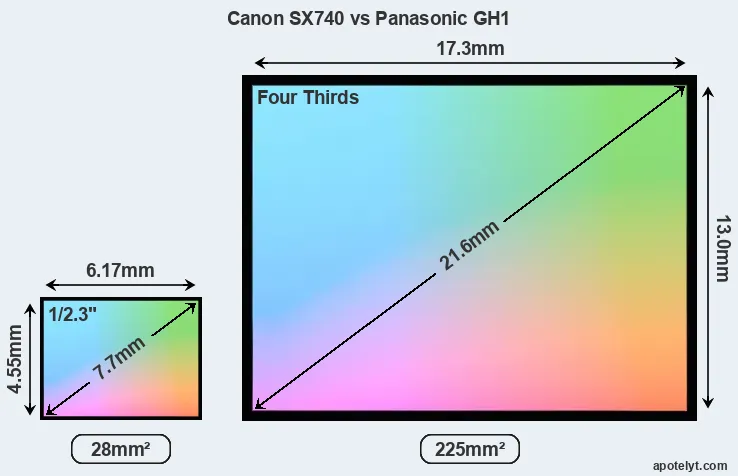

Of the two cameras under consideration, the Canon SX740 features a 1/2.3-inch sensor and the Panasonic GH1 a Four Thirds sensor. The sensor area in the GH1 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

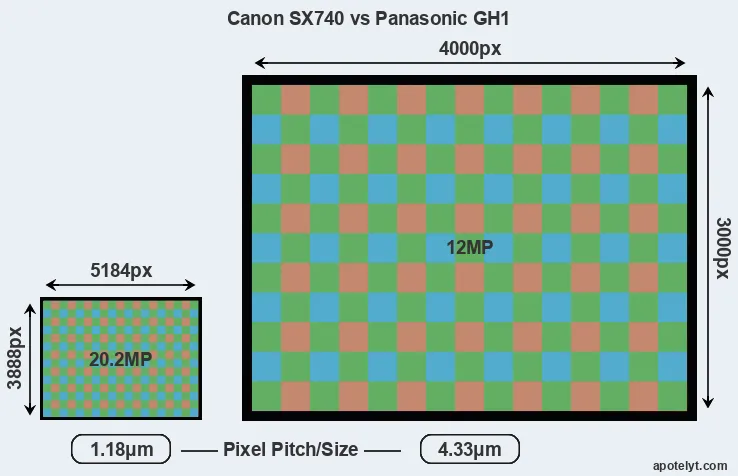

Despite having a smaller sensor, the Canon SX740 offers a higher resolution of 20.2 megapixels, compared with 12 MP of the Panasonic GH1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.33μm for the GH1). However, it should be noted that the SX740 is much more recent (by 9 years and 4 months) than the GH1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX740 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX740 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX740 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Panasonic GH1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon PowerShot SX740 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-GH1 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the SX740 is build around a BSI-CMOS sensor, while the GH1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
2.		Panasonic GH1	Four Thirds	12.0	4000	3000	1080/24p	21.6	11.6	772	64
3.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
4.		Canon G7 X Mark III	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
5.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
6.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
7.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
8.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
9.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
10.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
11.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53
12.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
13.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
14.		Panasonic GF1	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	513	54
15.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
16.		Panasonic TZ90	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
17.		Panasonic TZ95	1/2.3	20.2	5184	3888	4K/30p	20.7	12.2	1103	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SX740 provides a higher video resolution than the GH1. It can shoot video footage at 4K/30p, while the Panasonic is limited to 1080/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the GH1 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX740 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX740 and Panasonic GH1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
2.		Panasonic GH1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
3.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
4.		Canon G7 X Mark III	none	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
5.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
6.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
7.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
9.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
10.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
11.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
12.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
13.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
14.		Panasonic GF1	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
15.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
16.		Panasonic TZ90	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
17.		Panasonic TZ95	2330	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Canon SX740 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The SX740 writes its imaging data to SDXC cards, while the GH1 uses SDHC cards. The SX740 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the GH1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX740 HS and Panasonic Lumix DMC-GH1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
2.		Panasonic GH1	Y	stereo / -	Y	-	mini	2.0	-	-	-
3.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
4.		Canon G7 X Mark III	-	stereo / mono	Y	-	micro	3.1	Y	-	Y
5.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
8.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
11.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-
12.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
14.		Panasonic GF1	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic TZ90	-	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic TZ95	-	stereo / mono	-	-	micro	2.0	Y	-	Y

It is notable that the SX740 offers wifi support, while the GH1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The SX740 is a recent model that features in the current product line-up of Canon. In contrast, the GH1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the GH1 was succeeded by the Panasonic GH2. Further information on the features and operation of the SX740 and GH1 can be found, respectively, in the Canon SX740 Manual (free pdf) or the online Panasonic GH1 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon SX740 or the Panasonic GH1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon PowerShot SX740 HS:

• More detail: Offers more megapixels (20.2 vs 12MP) with a 30% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/24p).
• More detailed LCD: Has a higher resolution rear screen (922k vs 460k dots).
• Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has a lens built-in, whereas the GH1 requires a separate lens.
• More compact: Is smaller (110x64mm vs 124x90mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the GH1).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 9 years and 4 months of technical progress since the GH1 launch.

Reasons to prefer the Panasonic Lumix DMC-GH1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (300 versus 265) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in March 2009).

If the count of individual advantages (bullet points above) is taken as a guide, the SX740 emerges as the winner of the contest (16 : 13 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX740 and the Panasonic GH1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the SX740 and the GH1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	EUR 399	amazon.com
2.		Panasonic GH1	..	+ +	..	72/100	4.5/5	4.5/5	Mar 2009	EUR 799	ebay.com
3.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	EUR 929	ebay.com
4.		Canon G7 X Mark III	..	+ +	4/5	81/100	4/5	..	Jul 2019	EUR 779	amazon.com
5.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	EUR 499	ebay.com
6.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	EUR 479	ebay.com
7.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	EUR 299	ebay.com
8.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	EUR 299	ebay.com
9.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	EUR 329	ebay.com
10.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	EUR 399	ebay.com
11.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	EUR 499	ebay.com
12.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	EUR 549	ebay.com
13.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	EUR 499	ebay.com
14.		Panasonic GF1	..	85/100	..	69/100	4.5/5	4.5/5	Sep 2009	EUR 649	ebay.com
15.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	EUR 899	ebay.com
16.		Panasonic TZ90	..	+ +	4/5	..	4/5	4/5	Apr 2017	EUR 429	ebay.com
17.		Panasonic TZ95	..	+ +	..	..	4.5/5	..	Feb 2019	EUR 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check SX740 price at
amazon.com
Check GH1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check SX740 price at
amazon.com
Check GH1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
