Fujifilm X-A5 vs X-M5

The Fujifilm X-A5 and the Fujifilm X-M5 are two digital cameras that were revealed to the public, respectively, in January 2018 and October 2025. Both the X-A5 and the X-M5 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The X-A5 has a resolution of 24 megapixels, whereas the X-M5 provides 26 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-A5		Fujifilm X-M5
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Fujifilm X mount lenses
24 MP – APS-C sensor		26 MP – APS-C sensor
4K/15p Video		4K/60p Video
ISO 200-12,800 (200 - 51,200)		ISO 160-12,800 (80 - 51,200)
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Swivel touchscreen
6 shutter flaps per second		8 shutter flaps per second
450 shots per battery charge		330 shots per battery charge
117 x 68 x 40 mm, 361 g		112 x 67 x 38 mm, 355 g

Check X-A5 offers at
ebay.com
Check X-M5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-A5 and the Fujifilm X-M5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

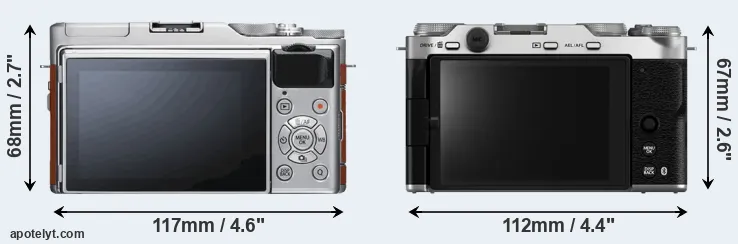

An illustration of the physical size and weight of the Fujifilm X-A5 and the Fujifilm X-M5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The X-A5 can be obtained in three different colors (silver, brown, pink), while the X-M5 is available in two color-versions (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-M5 is notably smaller (6 percent) than the Fujifilm X-A5. Moreover, the X-M5 is slightly lighter (2 percent) than the X-A5. In this context, it is worth noting that neither the X-A5 nor the X-M5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Fujinon X Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	US$ 399	ebay.com
2.		Fujifilm X-M5	112 mm	67 mm	38 mm	355 g	330	n	Oct 2025	US$ 799	amazon.com
3.		Fujifilm X-A2	117 mm	67 mm	40 mm	350 g	410	n	Jan 2015	US$ 399	ebay.com
4.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X-A7	119 mm	68 mm	41 mm	320 g	440	n	Sep 2019	US$ 499	ebay.com
6.		Fujifilm X-A10	117 mm	67 mm	40 mm	331 g	410	n	Dec 2016	US$ 399	ebay.com
7.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
8.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	US$ 699	ebay.com
9.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
10.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
11.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
12.		Fujifilm X-T200	121 mm	84 mm	55 mm	370 g	270	n	Jan 2020	US$ 699	ebay.com
13.		Nikon D3500	124 mm	97 mm	70 mm	415 g	1550	n	Aug 2018	US$ 429	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-A5 was launched at a markedly lower price (by 50 percent) than the X-M5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-M5 is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a slightly smaller sensor, the X-M5 offers a slightly higher resolution of 26 megapixels, compared with 24 MP of the X-A5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 3.92μm for the X-A5). However, it should be noted that the X-M5 is much more recent (by 7 years and 8 months) than the X-A5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the X-M5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Fujifilm X-A5 has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 200-51200. The corresponding ISO settings for the Fujifilm X-M5 are ISO 160 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

In terms of underlying technology, the X-A5 is build around a CMOS sensor, while the X-M5 uses a BSI-CMOS imager. Like most digital cameras, the X-A5 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-M5 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
2.		Fujifilm X-M5	APS-C	26.0	6240	4160	4K/60p	24.3	14.2	2558	86
3.		Fujifilm X-A2	APS-C	16.0	4896	3264	1080/30p	23.6	12.8	1515	79
4.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
5.		Fujifilm X-A7	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1955	84
6.		Fujifilm X-A10	APS-C	16.0	4896	3264	1080/30p	23.9	13.2	1691	81
7.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
8.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
9.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
10.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
11.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
12.		Fujifilm X-T200	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1991	84
13.		Nikon D3500	APS-C	24.0	6000	4000	1080/60p	24.0	13.4	1851	83
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the X-M5 provides a faster frame rate than the X-A5. It can shoot movie footage at 4K/60p, while the X-A5 is limited to 4K/15p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The X-A5 and the X-M5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Fujifilm X-A5, the Fujifilm X-M5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
2.		Fujifilm X-M5	none	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	n
3.		Fujifilm X-A2	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
4.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
5.		Fujifilm X-A7	none	n	3.5 / 2760	swivel	Y	1/4000s	6.0/s	Y	n
6.		Fujifilm X-A10	none	n	3.0 / 1040	tilting	n	1/4000s	6.0/s	Y	n
7.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
8.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
9.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
10.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
11.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
12.		Fujifilm X-T200	2360	n	3.5 / 2780	swivel	Y	1/4000s	8.0/s	Y	n
13.		Nikon D3500	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-A5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-A5 and the X-M5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-A5 and Fujifilm X-M5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Fujifilm X-M5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Fujifilm X-A2	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm X-A7	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Fujifilm X-A10	-	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	Y
9.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
10.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
11.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
12.		Fujifilm X-T200	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
13.		Nikon D3500	Y	mono / mono	-	-	mini	2.0	-	-	Y

It is notable that the X-M5 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The X-A5 lacks such a headphone port.

The X-M5 is a recent model that features in the current product line-up of Fujifilm. In contrast, the X-A5 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the X-A5 from Fujifilm. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm website.

Review summary

So how do things add up? Is the Fujifilm X-A5 better than the Fujifilm X-M5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Fujifilm X-A5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Can take more shots (450 versus 330) on a single battery charge.
• More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in January 2018).

Reasons to prefer the Fujifilm X-M5:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (4K/60p versus 4K/15p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster burst: Shoots at higher frequency (8 vs 6 flaps/sec) to capture the decisive moment.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• More modern: Reflects 7 years and 8 months of technical progress since the X-A5 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the X-M5 emerges as the winner of the match-up (7 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-A5 and the Fujifilm X-M5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the X-A5 and the X-M5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	US$ 399	ebay.com
2.		Fujifilm X-M5	..	..	..	84/100	..	..	Oct 2025	US$ 799	amazon.com
3.		Fujifilm X-A2	4/5	..	..	..	4.5/5	4.5/5	Jan 2015	US$ 399	ebay.com
4.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X-A7	3/5	..	3.5/5	81/100	4/5	3.5/5	Sep 2019	US$ 499	ebay.com
6.		Fujifilm X-A10	..	..	..	..	4/5	4/5	Dec 2016	US$ 399	ebay.com
7.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
8.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	US$ 699	ebay.com
9.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
10.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
11.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
12.		Fujifilm X-T200	3.5/5	..	4/5	82/100	4/5	4.5/5	Jan 2020	US$ 699	ebay.com
13.		Nikon D3500	4/5	..	4/5	75/100	4/5	4.5/5	Aug 2018	US$ 429	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
