Fujifilm X-T200 vs Samsung NX500

The Fujifilm X-T200 and the Samsung NX500 are two digital cameras that were revealed to the public, respectively, in January 2020 and February 2015. Both the X-T200 and the NX500 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The Fujifilm has a resolution of 24 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-T200		Samsung NX500
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Samsung NX mount lenses
24 MP – APS-C sensor		28 MP – APS-C sensor
4K/30p Video		4K/30p Video
ISO 200-12,800 (100 - 51,200)		ISO 100-25,600 (100 - 51,200)
Electronic viewfinder (2360k dots)		No viewfinder, LCD framing
3.5" LCD – 2780k dots		3.0" LCD – 1036k dots
Swivel touchscreen		Tilting touchscreen
8 shutter flaps per second		9 shutter flaps per second
270 shots per battery charge		370 shots per battery charge
121 x 84 x 55 mm, 370 g		120 x 64 x 43 mm, 287 g

Check X-T200 offers at
ebay.com
Check NX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-T200 and the Samsung NX500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

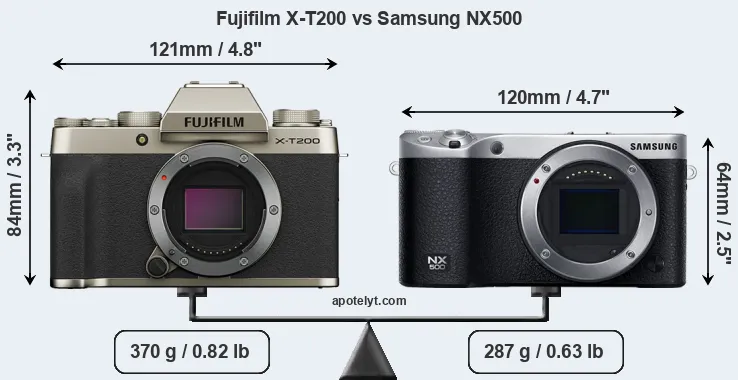

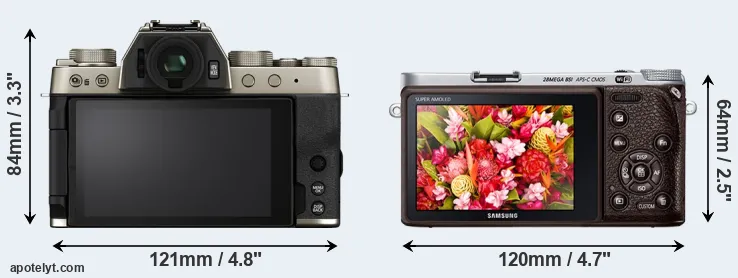

An illustration of the physical size and weight of the Fujifilm X-T200 and the Samsung NX500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The X-T200 can be obtained in three different colors (silver, gold, titanium), while the NX500 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX500 is notably smaller (24 percent) than the Fujifilm X-T200. Moreover, the NX500 is markedly lighter (22 percent) than the X-T200. In this context, it is worth noting that neither the X-T200 nor the NX500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-T200	121 mm	84 mm	55 mm	370 g	270	n	Jan 2020	US$ 699	ebay.com
2.		Samsung NX500	120 mm	64 mm	43 mm	287 g	370	n	Feb 2015	US$ 799	ebay.com
3.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
4.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	US$ 399	ebay.com
6.		Fujifilm X-A7	119 mm	68 mm	41 mm	320 g	440	n	Sep 2019	US$ 499	ebay.com
7.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
8.		Fujifilm X-E4	121 mm	73 mm	33 mm	364 g	380	n	Jan 2021	US$ 849	ebay.com
9.		Fujifilm X-M5	112 mm	67 mm	38 mm	355 g	330	n	Oct 2025	US$ 799	amazon.com
10.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
11.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
12.		Fujifilm X-T30 II	118 mm	83 mm	47 mm	383 g	380	n	Sep 2021	US$ 899	ebay.com
13.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
14.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
15.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
16.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
17.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X-T200 was launched at a somewhat lower price (by 13 percent) than the NX500, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.5. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

While the two cameras under review share the same sensor size, the NX500 offers a higher resolution of 28 megapixels, compared with 24 MP of the X-T200. This megapixels advantage translates into a 8 percent gain in linear resolution. On the other hand, these sensor specs imply that the NX500 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.63μm versus 3.92μm for the X-T200). Moreover, it should be noted, that the X-T200 is much more recent (by 4 years and 11 months) than the NX500, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels. Coming back to sensor resolution, it should be mentioned that the NX500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Samsung NX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX500 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Fujifilm X-T200 are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The Fujifilm X-T200 has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 100-51200. The corresponding ISO settings for the Samsung NX500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the X-T200 is build around a CMOS sensor, while the NX500 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-T200	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1991	84
2.		Samsung NX500	APS-C	28.0	6480	4320	4K/30p	24.8	13.9	1379	87
3.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
4.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
5.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
6.		Fujifilm X-A7	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1955	84
7.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
8.		Fujifilm X-E4	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2085	85
9.		Fujifilm X-M5	APS-C	26.0	6240	4160	4K/60p	24.3	14.2	2558	86
10.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
11.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
12.		Fujifilm X-T30 II	APS-C	26.0	6240	4160	4K/30p	24.2	13.8	2144	85
13.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
14.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
15.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
16.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
17.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the X-T200 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the NX500 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Fujifilm X-T200, the Samsung NX500, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-T200	2360	n	3.5 / 2780	swivel	Y	1/4000s	8.0/s	Y	n
2.		Samsung NX500	none	n	3.0 / 1036	tilting	Y	1/6000s	9.0/s	Y	n
3.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
4.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
5.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
6.		Fujifilm X-A7	none	n	3.5 / 2760	swivel	Y	1/4000s	6.0/s	Y	n
7.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
8.		Fujifilm X-E4	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	n	n
9.		Fujifilm X-M5	none	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	n
10.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
11.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
12.		Fujifilm X-T30 II	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	Y	n
13.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
14.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
15.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
16.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
17.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T200 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-T200 and the Samsung NX500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-T200 and the NX500 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-T200 and Samsung NX500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-T200	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
2.		Samsung NX500	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
3.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Fujifilm X-A7	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Fujifilm X-E4	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
9.		Fujifilm X-M5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
10.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
12.		Fujifilm X-T30 II	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
13.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
14.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
15.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
16.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the X-T200 has a microphone port, which is missing on the NX500. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the X-T200 and the NX500 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Fujifilm and Samsung. Further information on the features and operation of the X-T200 and NX500 can be found, respectively, in the Fujifilm X-T200 Manual (free pdf) or the online Samsung NX500 Manual.

Review summary

So how do things add up? Is the Fujifilm X-T200 better than the Samsung NX500 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Fujifilm X-T200:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Larger screen: Has a bigger rear LCD (3.5" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2780k vs 1036k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• More affordable: Was introduced into a lower priced segment (13 percent cheaper at launch).
• More modern: Reflects 4 years and 11 months of technical progress since the NX500 launch.

Arguments in favor of the Samsung NX500:

• More detail: Has more megapixels (28 vs 24MP), which boosts linear resolution by 8%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 8 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (120x64mm vs 121x84mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 83g or 22 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (370 versus 270) out of a single battery charge.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More heavily discounted: Has been around for much longer (launched in February 2015).

If the count of relative strengths (bullet points above) is taken as a measure, the X-T200 emerges as the winner of the contest (11 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-T200 and the Samsung NX500 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the X-T200 or the NX500 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-T200	3.5/5	..	4/5	82/100	4/5	4.5/5	Jan 2020	US$ 699	ebay.com
2.		Samsung NX500	4.5/5	..	..	81/100	5/5	4.5/5	Feb 2015	US$ 799	ebay.com
3.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
4.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	US$ 399	ebay.com
6.		Fujifilm X-A7	3/5	..	3.5/5	81/100	4/5	3.5/5	Sep 2019	US$ 499	ebay.com
7.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
8.		Fujifilm X-E4	4/5	..	4/5	..	4.5/5	4/5	Jan 2021	US$ 849	ebay.com
9.		Fujifilm X-M5	..	..	..	84/100	..	..	Oct 2025	US$ 799	amazon.com
10.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
11.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
12.		Fujifilm X-T30 II	5/5	..	4/5	..	4.5/5	4.5/5	Sep 2021	US$ 899	ebay.com
13.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
14.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
15.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
16.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
17.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
