Leica M Typ 240 vs Pentax MX-1

The Leica M (Typ 240) and the Pentax MX-1 are two digital cameras that were officially introduced, respectively, in September 2012 and January 2013. The M Typ 240 is a rangefinder-focusing mirrorless camera, while the MX-1 is a fixed lens compact. The cameras are based on a full frame (M Typ 240) and a 1/1.7-inch (MX-1) sensor. The Leica has a resolution of 23.7 megapixels, whereas the Pentax provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica M Typ 240		Pentax MX-1
Rangefinder camera		Fixed lens compact camera
Leica M mount lenses		28-112mm f/1.8-2.5
23.7 MP – Full Frame sensor		12 MP – 1/1.7" sensor
1080/25p Video		1080/30p Video
ISO 200-6,400		ISO 100-12,800
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 920k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
3 shutter flaps per second		1 shutter flaps per second
no shake reduction		In-body stabilization
Weathersealed body		not weather sealed
500 shots per battery charge		290 shots per battery charge
139 x 80 x 42 mm, 680 g		122 x 61 x 51 mm, 391 g

Check M Typ 240 offers at
ebay.com
Check MX-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M (Typ 240) and the Pentax MX-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

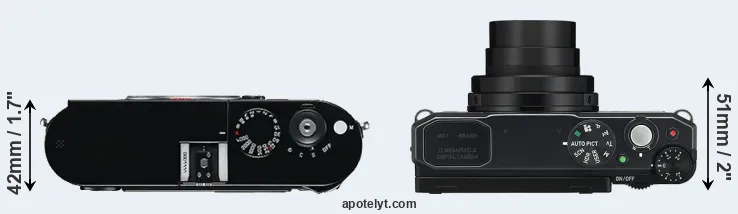

An illustration of the physical size and weight of the Leica M Typ 240 and the Pentax MX-1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The M Typ 240 can be obtained in two different colors (black, silver), while the MX-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax MX-1 is considerably smaller (33 percent) than the Leica M Typ 240. It is worth mentioning in this context that the M Typ 240 is splash and dust resistant, while the MX-1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the MX-1 has a lens built in, whereas the M Typ 240 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the M Typ 240 and their specifications in the Leica M Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
2.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	US$ 499	ebay.com
3.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
4.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
5.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
6.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
7.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
8.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
9.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
10.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
11.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
12.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	US$ 8 299	ebay.com
13.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
14.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	US$ 7 449	ebay.com
15.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
16.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
17.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The MX-1 was launched at a lower price than the M Typ 240, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

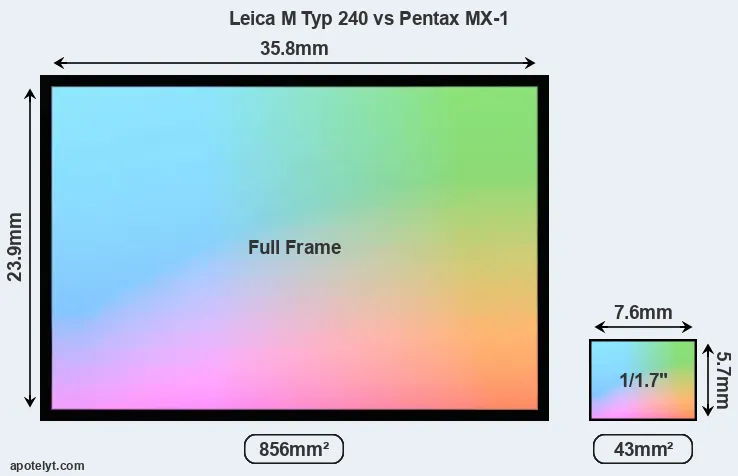

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Leica M Typ 240 features a full frame sensor and the Pentax MX-1 a 1/1.7-inch sensor. The sensor area in the MX-1 is 95 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 4.5. The sensor in the M Typ 240 has a native 3:2 aspect ratio, while the one in the MX-1 offers a 4:3 aspect.

With 23.7MP, the M Typ 240 offers a higher resolution than the MX-1 (12MP), but the M Typ 240 nevertheless has larger individual pixels (pixel pitch of 6.01μm versus 1.89μm for the MX-1) due to its larger sensor. However, the MX-1 is a somewhat more recent model (by 3 months) than the M Typ 240, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Leica M Typ 240 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M Typ 240 for good quality output (200 dots per inch) amounts to 29.8 x 19.9 inches or 75.6 x 50.5 cm, for very good quality (250 dpi) 23.8 x 15.9 inches or 60.5 x 40.4 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.7 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Leica M (Typ 240) has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-6400. The corresponding ISO settings for the Pentax MX-1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the M Typ 240 provides substantially higher image quality than the MX-1, with an overall score that is 35 points higher. This advantage is based on 3.6 bits higher color depth, 2 EV in additional dynamic range, and 3.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
2.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
3.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
4.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
5.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
6.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
7.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
8.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
9.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
10.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
11.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
12.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
13.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
14.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
15.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
16.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
17.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the MX-1 provides a faster frame rate than the M Typ 240. It can shoot movie footage at 1080/30p, while the Leica is limited to 1080/25p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the M Typ 240 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the MX-1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Leica M Typ 240, the Pentax MX-1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
2.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
3.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
4.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
5.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
6.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
7.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
8.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
9.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
10.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
11.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
12.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
13.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
14.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
15.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
16.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
17.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The MX-1 has one, while the M Typ 240 does not. While the built-in flash of the MX-1 is not very powerful, it can at times be useful as a fill-in light.

Concerning the storage of imaging data, both the M Typ 240 and the MX-1 write their files to SDXC cards. The M Typ 240 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the MX-1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M (Typ 240) and Pentax MX-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
2.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
4.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
8.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
9.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
10.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
11.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
12.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
13.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
14.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
15.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-

It is notable that the M Typ 240 has a hotshoe, while the MX-1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the M Typ 240 and the MX-1 have been discontinued, but can regularly be found used on ebay. The M Typ 240 was replaced by the Leica M Typ 262, while the MX-1 does not have a direct successor. Further information on the features and operation of the M Typ 240 and MX-1 can be found, respectively, in the Leica M Typ 240 Manual (free pdf) or the online Pentax MX-1 Manual.

Review summary

So what is the bottom line? Is the Leica M Typ 240 better than the Pentax MX-1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Leica M (Typ 240):

• More detail: Offers more megapixels (23.7 vs 12MP) with a 43% higher linear resolution.
• Better image quality: Scores substantially higher (35 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (3.6 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (2 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (3.2 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster burst: Shoots at higher frequency (3 vs 1 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (500 versus 290) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been on the market for longer (launched in September 2012).

Arguments in favor of the Pentax MX-1:

• Better video: Provides higher movie framerates (1080/30p versus 1080/25p).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Ready to shoot: Has an integrated lens, whereas the M Typ 240 necessitates an extra lens.
• More compact: Is smaller (122x61mm vs 139x80mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the M Typ 240).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (3 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the M Typ 240 is the clear winner of the match-up (14 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M Typ 240 and the MX-1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
2.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	US$ 499	ebay.com
3.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
4.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
5.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
6.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
7.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
8.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
9.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
10.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
11.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
12.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	US$ 8 299	ebay.com
13.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
14.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	US$ 7 449	ebay.com
15.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
16.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
17.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
