Leica M11 vs Leica SL

The Leica M11 (Typ 2416) and the Leica SL (Typ 601) are two enthusiast cameras that were revealed to the public, respectively, in January 2022 and October 2015. The M11 is a rangefinder-focusing mirrorless, while the Leica SL is a mirrorless interchangeable lens camera. Both cameras are equipped with a full frame sensor. The M11 has a resolution of 60.3 megapixels, whereas the Leica SL provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica M11		Leica SL
Rangefinder camera		Mirrorless system camera
Leica M mount lenses		Leica L mount lenses
60.3 MP – Full Frame sensor		24 MP – Full Frame sensor
no Video		4K/30p Video
ISO 64-50,000		ISO 50-50,000
Optical viewfinder		Electronic viewfinder (4400k dots)
3.0" LCD – 2333k dots		3.0" LCD – 1040k dots
Fixed touchscreen		Fixed touchscreen
4.5 shutter flaps per second		11 shutter flaps per second
Weathersealed body		Weathersealed body
700 shots per battery charge		400 shots per battery charge
139 x 80 x 39 mm, 640 g		147 x 104 x 39 mm, 847 g

Check M11 price at
amazon.com
Check Leica SL offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M11 (Typ 2416) and the Leica SL (Typ 601)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

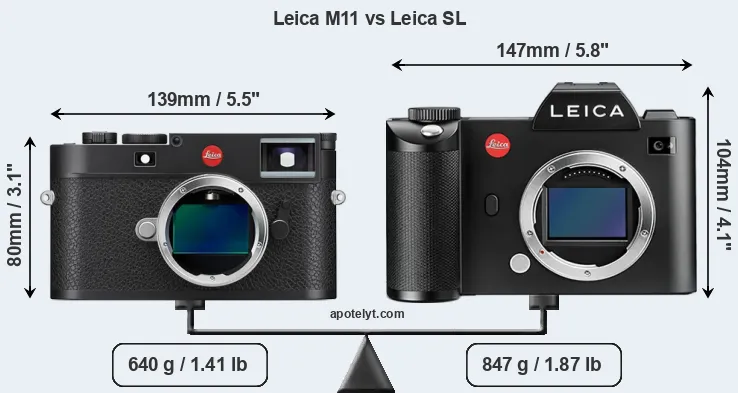

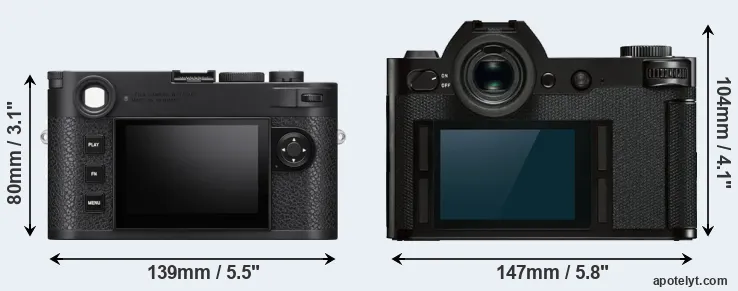

The physical size and weight of the Leica M11 and the Leica SL are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The M11 can be obtained in two different colors (black, silver), while the Leica SL is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica SL is notably larger (37 percent) than the Leica M11. Moreover, the Leica SL is markedly heavier (32 percent) than the M11. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M11 gets 700 shots out of its Leica BP-SCL7 battery, while the Leica SL can take 400 images on a single charge of its Leica BP-SCL4 power pack. The power pack in the M11 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
2.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	US$ 7 449	ebay.com
3.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
4.		Hasselblad X1D	150 mm	98 mm	71 mm	725 g	..	Y	Jun 2016	US$ 8 995	ebay.com
5.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
6.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
7.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
8.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
9.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
10.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
11.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	US$ 8 299	ebay.com
12.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
13.		Leica Q3	130 mm	80 mm	93 mm	743 g	350	Y	May 2023	US$ 5 999	amazon.com
14.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
15.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	US$ 1 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The Leica SL was launched at a somewhat lower price (by 17 percent) than the M11, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

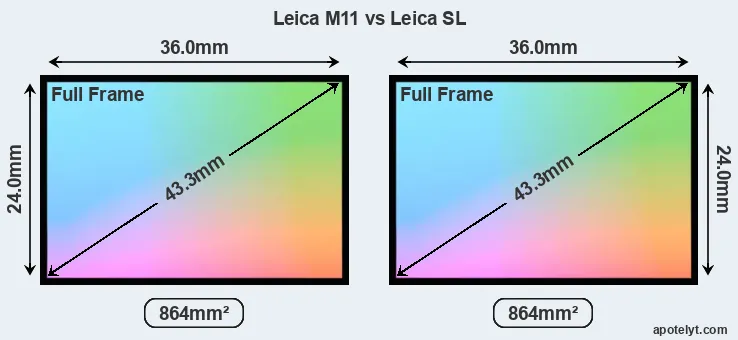

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a full frame sensor and have a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the review cameras among the large-sensor cameras that aim for top notch image quality. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the M11 uses a more advanced image processing engine (Maestro III) than the Leica SL (Maestro II), with benefits for noise reduction, color accuracy, and processing speed.

While the two cameras under review share the same sensor size, the M11 offers a higher resolution of 60.3 megapixels, compared with 24 MP of the Leica SL. This megapixels advantage translates into a 59 percent gain in linear resolution. On the other hand, these sensor specs imply that the M11 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.79μm versus 6.00μm for the Leica SL). In this context, it should be noted, however, that the M11 is much more recent (by 6 years and 2 months) than the Leica SL, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Leica M11 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M11 for good quality output (200 dots per inch) amounts to 47.6 x 31.6 inches or 121 x 80.4 cm, for very good quality (250 dpi) 38.1 x 25.3 inches or 96.8 x 64.3 cm, and for excellent quality (300 dpi) 31.8 x 21.1 inches or 80.7 x 53.6 cm. The corresponding values for the Leica SL are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The Leica M11 (Typ 2416) has a native sensitivity range from ISO 64 to ISO 50000. The corresponding ISO settings for the Leica SL (Typ 601) are ISO 50 to ISO 50000 (no boost).

In terms of underlying technology, the M11 is build around a BSI-CMOS sensor, while the Leica SL uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the M11 provides substantially higher image quality than the Leica SL, with an overall score that is 12 points higher. This advantage is based on 1.3 bits higher color depth, 1.4 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
2.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
3.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
4.		Hasselblad X1D	Medium Format	51.3	8272	6200	1080/25p	26.2	14.8	4489	102
5.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
6.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
7.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
8.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
9.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
10.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
11.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
12.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
13.		Leica Q3	Full Frame	60.3	9528	6328	8K/30p	25.4	14.7	3216	96
14.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
15.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The Leica SL indeed provides for movie recording, while the M11 does not. The highest resolution format that the Leica SL can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the Leica SL has an electronic viewfinder (4400k dots), while the M11 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the Leica SL has a higher magnification than the one of the M11 (0.80x vs 0.73x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Leica M11 and Leica SL along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
2.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
3.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
4.		Hasselblad X1D	2360	n	3.0 / 920	fixed	Y	1/2000s	2.3/s	n	n
5.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
6.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
7.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
8.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
9.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
10.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
11.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
12.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
13.		Leica Q3	5760	n	3.0 / 1840	tilting	Y	1/2000s	15.0/s	n	Y
14.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
15.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the Leica SL, but is missing on the M11 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica M11 and the Leica SL both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M11 and the Leica SL write their files to SDXC cards. The Leica SL features dual card slots, which can be very useful in case a memory card fails. In contrast, the M11 only has one slot. Both the M11 and the Leica SL support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s (the second slot of the Leica SL only offers slower UHS-I transfer rates, though).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M11 (Typ 2416) and Leica SL (Typ 601) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
2.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
3.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
4.		Hasselblad X1D	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
5.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
6.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
7.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
8.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
9.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
10.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
11.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
12.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
13.		Leica Q3	Y	stereo / mono	-	-	micro	3.1	Y	-	Y
14.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
15.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y

Studio photographers will appreciate that the Leica SL (unlike the M11) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the Leica SL has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The M11 is a recent model that features in the current product line-up of Leica. In contrast, the Leica SL has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the Leica SL was succeeded by the Leica SL2. Further information on the features and operation of the M11 and Leica SL can be found, respectively, in the Leica M11 Manual (free pdf) or the online Leica SL Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Leica M11 and the Leica SL? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Leica M11 (Typ 2416):

• More detail: Offers more megapixels (60.3 vs 24MP) with a 59% higher linear resolution.
• Better image quality: Scores substantially higher (12 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.3 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.4 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.9 stops ISO advantage).
• Better jpgs: Has a more modern image processing engine (Maestro III vs Maestro II).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More detailed LCD: Has a higher resolution rear screen (2333k vs 1040k dots).
• More compact: Is smaller (139x80mm vs 147x104mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 207g or 24 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (700 versus 400) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 6 years and 2 months of technical progress since the Leica SL launch.

Advantages of the Leica SL (Typ 601):

• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.80x vs 0.73x).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (11 vs 4.5 flaps/sec) to capture the decisive moment.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More affordable: Was released into a lower priced segment (17 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in October 2015).

If the count of relative strengths (bullet points above) is taken as a measure, the M11 emerges as the winner of the contest (14 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the M11 or the Leica SL perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
2.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	US$ 7 449	ebay.com
3.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
4.		Hasselblad X1D	..	o	..	81/100	..	4/5	Jun 2016	US$ 8 995	ebay.com
5.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
6.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
7.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
8.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
9.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
10.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
11.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	US$ 8 299	ebay.com
12.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
13.		Leica Q3	5/5	..	4.5/5	..	..	4.5/5	May 2023	US$ 5 999	amazon.com
14.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
15.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	US$ 1 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
