Leica T vs Panasonic LX5

The Leica T (Typ 701) and the Panasonic Lumix DMC-LX5 are two digital cameras that were revealed to the public, respectively, in April 2014 and July 2010. The T Typ 701 is a mirrorless interchangeable lens camera, while the LX5 is a fixed lens compact. The cameras are based on an APS-C (T Typ 701) and a 1/1.7-inch (LX5) sensor. The Leica has a resolution of 16.2 megapixels, whereas the Panasonic provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica T		Panasonic LX5
Mirrorless system camera		Fixed lens compact camera
Leica T mount lenses		24-90mm f/2.0-3.3
16.2 MP – APS-C sensor		10 MP – 1/1.7" sensor
1080/30p Video		720/60p Video
ISO 100-12,500		ISO 80-3,200 (80 - 12,800)
Viewfinder optional		Viewfinder optional
3.7" LCD – 1230k dots		3.0" LCD – 460k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
5 shutter flaps per second		2.5 shutter flaps per second
400 shots per battery charge		400 shots per battery charge
134 x 69 x 33 mm, 384 g		110 x 65 x 43 mm, 271 g

Check T Typ 701 offers at
ebay.com
Check LX5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica T (Typ 701) and the Panasonic Lumix DMC-LX5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

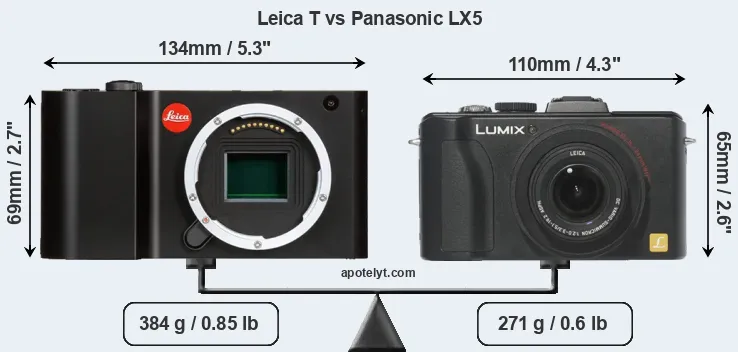

Body comparison

The side-by-side display below illustrates the physical size and weight of the Leica T and the Panasonic LX5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The T Typ 701 can be obtained in two different colors (black, silver), while the LX5 is also available in two color-versions, but different ones (black, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX5 is notably smaller (23 percent) than the Leica T. In this context, it is worth noting that neither the T Typ 701 nor the LX5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX5 has a lens built in, whereas the T Typ 701 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The power pack in the T Typ 701 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	US$ 1 849	ebay.com
2.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
3.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
4.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
5.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
6.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
7.		Leica D-LUX 8	130 mm	69 mm	62 mm	397 g	300	n	Jul 2024	US$ 1 599	amazon.com
8.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	US$ 1 695	ebay.com
9.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	US$ 1 949	ebay.com
10.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
11.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
12.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
13.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
14.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
15.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
16.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The LX5 was launched at a lower price than the T Typ 701, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

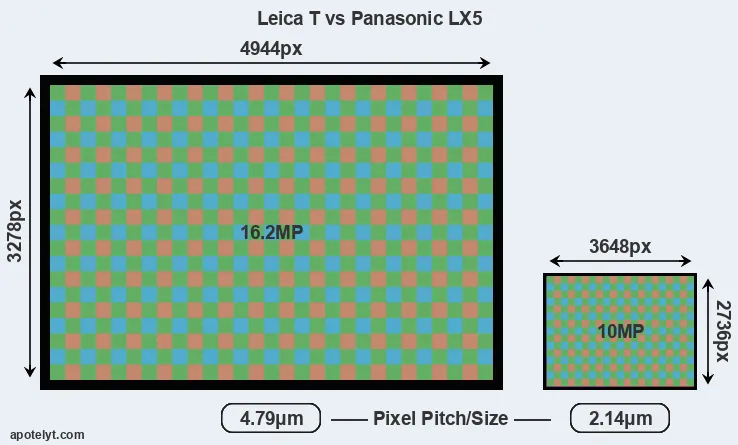

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Leica T features an APS-C sensor and the Panasonic LX5 a 1/1.7-inch sensor. The sensor area in the LX5 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.4. The sensor in the T Typ 701 has a native 3:2 aspect ratio, while the one in the LX5 offers a 4:3 aspect. The LX5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

With 16.2MP, the T Typ 701 offers a higher resolution than the LX5 (10MP), but the T Typ 701 nevertheless has larger individual pixels (pixel pitch of 4.79μm versus 2.14μm for the LX5) due to its larger sensor. Moreover, the T Typ 701 is a much more recent model (by 3 years and 9 months) than the LX5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the T Typ 701 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica T implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T Typ 701 for good quality output (200 dots per inch) amounts to 24.7 x 16.4 inches or 62.8 x 41.6 cm, for very good quality (250 dpi) 19.8 x 13.1 inches or 50.2 x 33.3 cm, and for excellent quality (300 dpi) 16.5 x 10.9 inches or 41.9 x 27.8 cm. The corresponding values for the Panasonic LX5 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Leica T (Typ 701) has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Panasonic Lumix DMC-LX5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the T Typ 701 is build around a CMOS sensor, while the LX5 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the T Typ 701 provides substantially higher image quality than the LX5, with an overall score that is 34 points higher. This advantage is based on 3.4 bits higher color depth, 1.9 EV in additional dynamic range, and 3 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
2.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
3.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
4.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
5.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
6.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
7.		Leica D-LUX 8	Four Thirds	16.8	4736	3552	4K/30p	23.1	13.4	1557	75
8.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
9.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
10.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
11.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
12.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
13.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
14.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
15.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
16.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the T Typ 701 provides a higher video resolution than the LX5. It can shoot video footage at 1080/30p, while the Panasonic is limited to 720/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The T Typ 701 and the LX5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the Visoflex (Typ 020) for the T Typ 701 and the DMW-LVF1 for the LX5 – are available as accessories. The table below summarizes some of the other core capabilities of the Leica T and Panasonic LX5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
2.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
3.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
4.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
5.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
6.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
7.		Leica D-LUX 8	2360	n	3.0 / 1860	fixed	Y	1/4000s	11.0/s	n	Y
8.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
9.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
10.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
11.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
12.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
13.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
14.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
15.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
16.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The T Typ 701 has a touchscreen, while the LX5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the T Typ 701 and the LX5 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica T (Typ 701) and Panasonic Lumix DMC-LX5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
2.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Leica D-LUX 8	Y	stereo / mono	-	-	micro	3.0	Y	-	Y
8.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
10.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
11.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
13.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the T Typ 701 offers wifi support, while the LX5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the T Typ 701 and the LX5 have been discontinued, but can regularly be found used on ebay. The LX5 was replaced by the Panasonic LX7, while the T Typ 701 was followed by the Leica TL. Further information on the features and operation of the T Typ 701 and LX5 can be found, respectively, in the Leica T Manual (free pdf) or the online Panasonic LX5 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Leica T or the Panasonic LX5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Leica T (Typ 701):

• More detail: Offers more megapixels (16.2 vs 10MP) with a 30% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (34 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (3.4 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.9 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (3 stops ISO advantage).
• Better video: Provides higher definition movie capture (1080/30p vs 720/60p).
• Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 460k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (5 vs 2.5 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 3 years and 9 months of technical progress since the LX5 launch.

Reasons to prefer the Panasonic Lumix DMC-LX5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Ready to shoot: Has an integrated lens, whereas the T Typ 701 necessitates an extra lens.
• More compact: Is smaller (110x65mm vs 134x69mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the T Typ 701).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been around for much longer (launched in July 2010).

If the count of individual advantages (bullet points above) is taken as a guide, the T Typ 701 is the clear winner of the match-up (16 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica T and the Panasonic LX5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the T Typ 701 or the LX5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	US$ 1 849	ebay.com
2.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
3.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
4.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
5.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
6.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
7.		Leica D-LUX 8	..	..	..	..	..	..	Jul 2024	US$ 1 599	amazon.com
8.		Leica TL	..	..	..	..	..	4/5	Nov 2016	US$ 1 695	ebay.com
9.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	US$ 1 949	ebay.com
10.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
11.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
12.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
13.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
14.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
15.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
16.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
