Leica TL2 vs X2

The Leica TL2 and the Leica X2 are two digital cameras that were revealed to the public, respectively, in July 2017 and May 2012. The TL2 is a mirrorless interchangeable lens camera, while the X2 is a fixed lens compact. Both cameras are equipped with an APS-C sensor. The TL2 has a resolution of 24.1 megapixels, whereas the X2 provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica TL2		Leica X2
Mirrorless system camera		Fixed lens compact camera
Leica T mount lenses		36mm f/2.8
24.1 MP – APS-C sensor		16.1 MP – APS-C sensor
4K/30p Video		no Video
ISO 100-50,000		ISO 100-12,500
Viewfinder optional		Viewfinder optional
3.7" LCD – 1230k dots		2.7" LCD – 230k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
7 shutter flaps per second		5 shutter flaps per second
250 shots per battery charge		450 shots per battery charge
134 x 69 x 33 mm, 399 g		124 x 69 x 52 mm, 345 g

Check TL2 offers at
ebay.com
Check X2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica TL2 and the Leica X2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

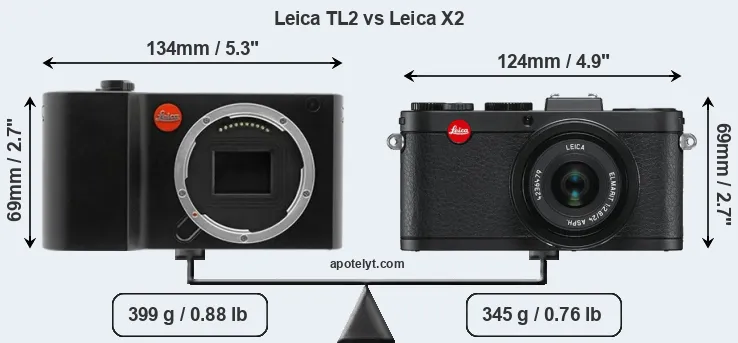

The physical size and weight of the Leica TL2 and the Leica X2 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica X2 is notably smaller (7 percent) than the Leica TL2. In this context, it is worth noting that neither the TL2 nor the X2 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X2 has a lens built in, whereas the TL2 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the TL2 gets 250 shots out of its Leica BP-DC13 battery, while the X2 can take 450 images on a single charge of its Leica BP-DC8 power pack. The power pack in the TL2 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	EUR 1 949	ebay.com
2.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	EUR 1 749	ebay.com
3.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	EUR 599	ebay.com
4.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	EUR 799	ebay.com
5.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	EUR 779	ebay.com
6.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	EUR 449	ebay.com
7.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	EUR 899	ebay.com
8.		Fujifilm X100F	127 mm	75 mm	52 mm	469 g	390	n	Jan 2017	EUR 1 399	ebay.com
9.		Leica C-LUX	113 mm	67 mm	46 mm	340 g	370	n	Jun 2018	EUR 970	ebay.com
10.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	EUR 2 490	ebay.com
11.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	EUR 1 499	ebay.com
12.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	EUR 1 649	ebay.com
13.		Leica X1	124 mm	60 mm	32 mm	306 g	260	n	Sep 2009	EUR 1 549	ebay.com
14.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	EUR 2 449	ebay.com
15.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	EUR 1 849	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

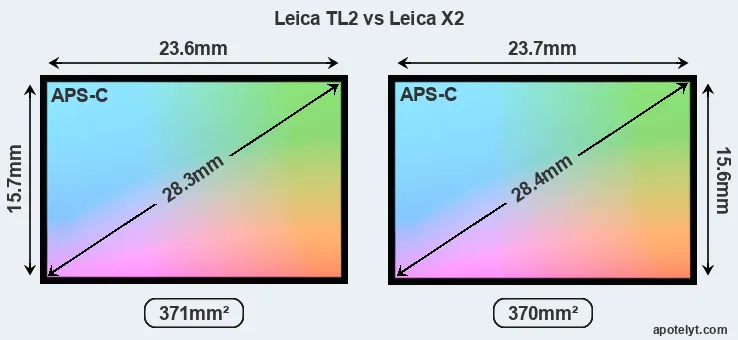

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

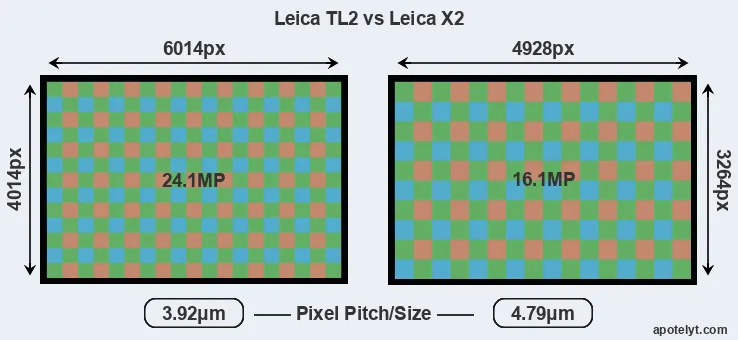

With 24.1MP, the TL2 offers a higher resolution than the X2 (16.1MP), but the TL2 has smaller individual pixels (pixel pitch of 3.92μm versus 4.79μm for the X2). However, the TL2 is a much more recent model (by 5 years and 2 months) than the X2, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the TL2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica TL2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TL2 for good quality output (200 dots per inch) amounts to 30.1 x 20.1 inches or 76.4 x 51 cm, for very good quality (250 dpi) 24.1 x 16.1 inches or 61.1 x 40.8 cm, and for excellent quality (300 dpi) 20 x 13.4 inches or 50.9 x 34 cm. The corresponding values for the Leica X2 are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.

The Leica TL2 has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Leica X2 are ISO 100 to ISO 12500 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
2.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
3.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
4.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
5.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
6.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
7.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
8.		Fujifilm X100F	APS-C	24.0	6000	4000	1080/60p	23.9	13.2	1704	81
9.		Leica C-LUX	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	481	64
10.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
11.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
12.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
13.		Leica X1	APS-C	12.2	4272	2856	none	22.6	11.8	1037	69
14.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
15.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The TL2 indeed provides movie recording capabilities, while the X2 does not. The highest resolution format that the TL2 can use is 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The TL2 and the X2 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the Visoflex (Typ 020) for the TL2 and the EVF 2 for the X2 – are available as accessories. The following table reports on some other key feature differences and similarities of the Leica TL2, the Leica X2, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
2.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
3.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
5.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
6.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
7.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
8.		Fujifilm X100F	2360	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
9.		Leica C-LUX	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
10.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
11.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
12.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
13.		Leica X1	none	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	n
14.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
15.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The TL2 has a touchscreen, while the X2 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The TL2 writes its imaging data to SDXC cards, while the X2 uses SDHC cards. The TL2 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X2 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica TL2 and Leica X2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
2.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
3.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Fujifilm X100F	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Leica C-LUX	-	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
11.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
12.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Leica X1	Y	- / -	-	-	mini	2.0	-	-	-
14.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the TL2 offers wifi support, while the X2 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the TL2 and the X2 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Leica. Further information on the features and operation of the TL2 and X2 can be found, respectively, in the Leica TL2 Manual (free pdf) or the online Leica X2 Manual.

Review summary

So how do things add up? Which of the two cameras – the Leica TL2 or the Leica X2 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Leica TL2:

• More detail: Offers more megapixels (24.1 vs 16.1MP) with a 22% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can record not only still images but also 4K/30p movies.
• Larger screen: Has a bigger rear LCD (3.7" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 230k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Easier travel charging: Can be conveniently charged via its USB port.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
• More modern: Reflects 5 years and 2 months of technical progress since the X2 launch.

Arguments in favor of the Leica X2:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Ready to shoot: Has an integrated lens, whereas the TL2 necessitates an extra lens.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the TL2).
• Longer lasting: Gets more shots (450 versus 250) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More heavily discounted: Has been around for much longer (launched in May 2012).

If the count of relative strengths (bullet points above) is taken as a measure, the TL2 is the clear winner of the match-up (14 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica TL2 and the Leica X2 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the TL2 and the X2 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	EUR 1 949	ebay.com
2.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	EUR 1 749	ebay.com
3.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	EUR 599	ebay.com
4.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	EUR 799	ebay.com
5.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	EUR 779	ebay.com
6.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	EUR 449	ebay.com
7.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	EUR 899	ebay.com
8.		Fujifilm X100F	5/5	+	3.9/5	83/100	4.5/5	4.5/5	Jan 2017	EUR 1 399	ebay.com
9.		Leica C-LUX	..	..	3.5/5	..	4.5/5	4/5	Jun 2018	EUR 970	ebay.com
10.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	EUR 2 490	ebay.com
11.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	EUR 1 499	ebay.com
12.		Leica TL	..	..	..	..	..	4/5	Nov 2016	EUR 1 649	ebay.com
13.		Leica X1	3/5	..	..	+	..	4/5	Sep 2009	EUR 1 549	ebay.com
14.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	EUR 2 449	ebay.com
15.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	EUR 1 849	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
