Leica X-U Typ 113 vs Olympus XZ-1

The Leica X-U (Typ 113) and the Olympus XZ-1 are two digital cameras that were revealed to the public, respectively, in January 2016 and January 2011. Both the X-U Typ 113 and the XZ-1 are fixed lens compact cameras that are based on an APS-C (X-U Typ 113) and a 1/1.7-inch (XZ-1) sensor. The Leica has a resolution of 16.1 megapixels, whereas the Olympus provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica X-U Typ 113		Olympus XZ-1
Fixed lens compact camera		Fixed lens compact camera
35mm f/1.7		28-112mm f/1.8-2.5
16.1 MP – APS-C sensor		10.1 MP – 1/1.7" sensor
1080/30p Video		720/30p Video
ISO 100-12,500		ISO 100-6,400
Viewfinder optional		Viewfinder optional
3.0" LCD – 920k dots		3.0" LCD – 614k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		2 shutter flaps per second
no shake reduction		In-body stabilization
Waterproof body (3m)		not weather sealed
450 shots per battery charge		320 shots per battery charge
140 x 79 x 88 mm, 635 g		111 x 65 x 42 mm, 275 g

Check X-U Typ 113 offers at
ebay.com
Check XZ-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica X-U (Typ 113) and the Olympus XZ-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

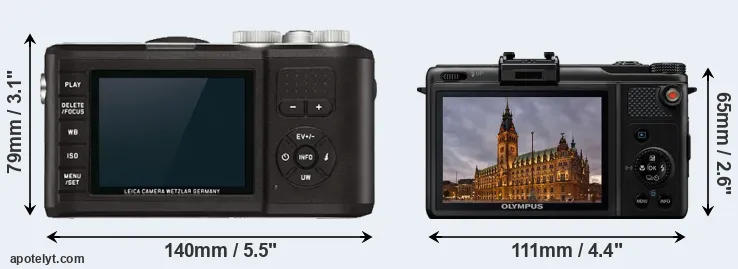

The side-by-side display below illustrates the physical size and weight of the Leica X-U Typ 113 and the Olympus XZ-1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The XZ-1 can be obtained in two different colors (black, white), while the X-U Typ 113 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-1 is considerably smaller (35 percent) than the Leica X-U Typ 113. Moreover, the XZ-1 is substantially lighter (57 percent) than the X-U Typ 113. It is worth mentioning in this context that the X-U Typ 113 is splash and dust resistant, while the XZ-1 does not feature any corresponding weather-sealing. More than that, the X-U Typ 113 is water-proof up to 3m and can, thus, be used for underwater photography.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica X-U Typ 113	140 mm	79 mm	88 mm	635 g	450	Y	Jan 2016	US$ 2 949	ebay.com
2.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
3.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	US$ 999	ebay.com
4.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
5.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
6.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
7.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	US$ 849	ebay.com
8.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
9.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	US$ 2 749	ebay.com
10.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
11.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
12.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
13.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
14.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
15.		Panasonic FZ82	130 mm	94 mm	119 mm	616 g	330	n	Jan 2017	US$ 399	amazon.com
16.		Panasonic FZ330	132 mm	92 mm	117 mm	691 g	380	Y	Jul 2015	US$ 599	amazon.com
17.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XZ-1 was launched at a markedly lower price (by 83 percent) than the X-U Typ 113, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica X-U Typ 113 features an APS-C sensor and the Olympus XZ-1 a 1/1.7-inch sensor. The sensor area in the XZ-1 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.4. The sensor in the X-U Typ 113 has a native 3:2 aspect ratio, while the one in the XZ-1 offers a 4:3 aspect.

With 16.1MP, the X-U Typ 113 offers a higher resolution than the XZ-1 (10.1MP), but the X-U Typ 113 nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 2.13μm for the XZ-1) due to its larger sensor. Moreover, the X-U Typ 113 is a much more recent model (by 5 years) than the XZ-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Leica X-U Typ 113 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-U Typ 113 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Olympus XZ-1 are 18.3 x 13.8 inches or 46.5 x 35 cm for good quality, 14.7 x 11 inches or 37.2 x 28 cm for very good quality, and 12.2 x 9.2 inches or 31 x 23.3 cm for excellent quality prints.

The Leica X-U (Typ 113) has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Olympus XZ-1 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the X-U Typ 113 is build around a CMOS sensor, while the XZ-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica X-U Typ 113	APS-C	16.1	4928	3264	1080/30p	23.8	13.0	1614	80
2.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
3.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
4.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
5.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
6.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
7.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
8.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
9.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
10.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
11.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
12.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
13.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
14.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
15.		Panasonic FZ82	1/2.3	18.0	4896	3672	4K/30p	20.5	11.9	900	49
16.		Panasonic FZ330	1/2.3	12.0	4000	3000	4K/30p	19.3	11.0	97	38
17.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the X-U Typ 113 provides a higher video resolution than the XZ-1. It can shoot video footage at 1080/30p, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The X-U Typ 113 and the XZ-1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the Visoflex (Typ 020) for the X-U Typ 113 and the VF-2 for the XZ-1 – are available as accessories. The following table reports on some other key feature differences and similarities of the Leica X-U Typ 113, the Olympus XZ-1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica X-U Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
2.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
3.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
4.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
5.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
6.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
7.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
8.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
9.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
10.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
11.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
12.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
13.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
14.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
15.		Panasonic FZ82	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
16.		Panasonic FZ330	1440	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
17.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Olympus XZ-1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The XZ-1 is equipped with a zoom lens, while the X-U Typ 113 comes with a built-in prime. The XZ-1 has a 28-112mm f/1.8-2.5 optic and the X-U Typ 113 offers a 35mm f/1.7 (focal lengths in full frame equivalent terms). Hence, the Olympus provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Leica. The X-U Typ 113 offers the faster maximum aperture.

Concerning the storage of imaging data, both the X-U Typ 113 and the XZ-1 write their files to SDXC cards. The X-U Typ 113 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XZ-1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica X-U (Typ 113) and Olympus XZ-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica X-U Typ 113	Y	stereo / mono	-	-	-	2.0	-	-	-
2.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
3.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
4.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
5.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
7.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
10.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
11.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic FZ82	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Panasonic FZ330	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
17.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-

Both the X-U Typ 113 and the XZ-1 have been discontinued, but can regularly be found used on ebay. The XZ-1 was replaced by the Olympus XZ-2, while the X-U Typ 113 does not have a direct successor. Further information on the features and operation of the X-U Typ 113 and XZ-1 can be found, respectively, in the Leica X-U Typ 113 Manual (free pdf) or the online Olympus XZ-1 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Leica X-U Typ 113 or the Olympus XZ-1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Leica X-U (Typ 113):

• More detail: Offers more megapixels (16.1 vs 10.1MP) with a 29% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
• More detailed LCD: Has a higher resolution rear screen (920k vs 614k dots).
• Faster burst: Shoots at higher frequency (5 vs 2 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.7 vs f/1.8).
• Longer lasting: Can take more shots (450 versus 320) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 3m).
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 5 years of technical progress since the XZ-1 launch.

Arguments in favor of the Olympus XZ-1:

• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More compact: Is smaller (111x65mm vs 140x79mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 360g or 57 percent) and is thus easier to take along.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced into a lower priced category (83 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in January 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the X-U Typ 113 is the clear winner of the match-up (15 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica X-U Typ 113 and the Olympus XZ-1 place the cameras among the top in their class? Find out in the latest Best Prime Lens Compact Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-U Typ 113 or the XZ-1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica X-U Typ 113	3.5/5	..	..	..	..	3.5/5	Jan 2016	US$ 2 949	ebay.com
2.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
3.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	US$ 999	ebay.com
4.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
5.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
6.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
7.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	US$ 849	ebay.com
8.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
9.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	US$ 2 749	ebay.com
10.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
11.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
12.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
13.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
14.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
15.		Panasonic FZ82	..	+ +	..	..	4.5/5	4.5/5	Jan 2017	US$ 399	amazon.com
16.		Panasonic FZ330	..	+ +	..	..	4.5/5	4.5/5	Jul 2015	US$ 599	amazon.com
17.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
