Leica X Vario vs Olympus E-1

The Leica X Vario (Typ 107) and the Olympus E-1 are two digital cameras that were officially introduced, respectively, in June 2013 and June 2003. The X Vario is a fixed lens compact, while the E-1 is a DSLR. The cameras are based on an APS-C (X Vario) and a Four Thirds (E-1) sensor. The Leica has a resolution of 16.1 megapixels, whereas the Olympus provides 4.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica X Vario		Olympus E-1
Fixed lens compact camera		Digital single lens reflex
28-70mm f/3.5-6.4		Four Thirds lenses
16.1 MP – APS-C sensor		4.9 MP – Four Thirds sensor
1080/30p Video		no Video
ISO 100-12,500		ISO 100-800 (100 - 3,200)
Viewfinder optional		Optical viewfinder
3.0" LCD – 920k dots		1.8" LCD – 134k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		3 shutter flaps per second
not weather sealed		Weathersealed body
450 shots per battery charge		750 shots per battery charge
133 x 73 x 95 mm, 680 g		141 x 104 x 81 mm, 738 g

Check X Vario offers at
ebay.com
Check E-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica X Vario (Typ 107) and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

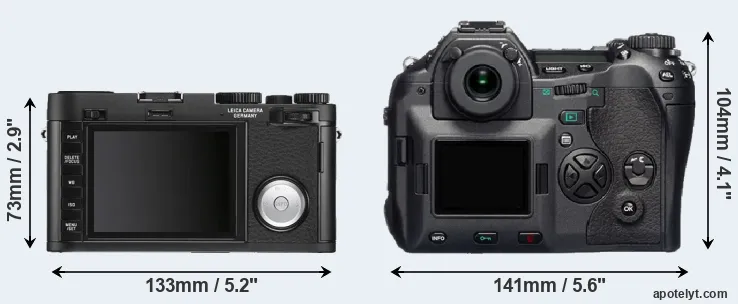

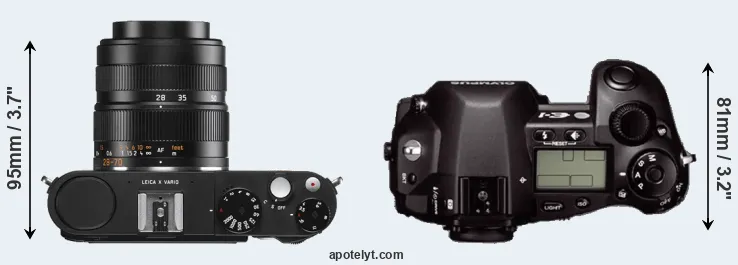

The side-by-side display below illustrates the physical size and weight of the Leica X Vario and the Olympus E-1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The X Vario can be obtained in two different colors (black, silver), while the E-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is considerably larger (51 percent) than the Leica X Vario. It is noteworthy in this context that the E-1 is splash and dust-proof, while the X Vario does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X Vario has a lens built in, whereas the E-1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-1 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the X Vario gets 450 shots out of its Leica BP-DC8 battery, while the E-1 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
2.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	US$ 1 699	ebay.com
3.		Leica Digilux 3	146 mm	87 mm	77 mm	606 g	750	n	Sep 2006	US$ 1 499	ebay.com
4.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
5.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	US$ 1 849	ebay.com
6.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
7.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	US$ 2 299	ebay.com
8.		Leica X-U Typ 113	140 mm	79 mm	88 mm	635 g	450	Y	Jan 2016	US$ 2 949	ebay.com
9.		Nikon Coolpix A	111 mm	64 mm	40 mm	299 g	230	n	Mar 2013	US$ 1 099	ebay.com
10.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	US$ 2 749	ebay.com
11.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	US$ 1 699	ebay.com
12.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	US$ 1 699	ebay.com
13.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
14.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	US$ 999	ebay.com
15.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
16.		Ricoh GR	117 mm	61 mm	35 mm	245 g	290	n	Apr 2013	US$ 799	ebay.com
17.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	US$ 2 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Leica X Vario features an APS-C sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X Vario has a native 3:2 aspect ratio, while the one in the E-1 offers a 4:3 aspect.

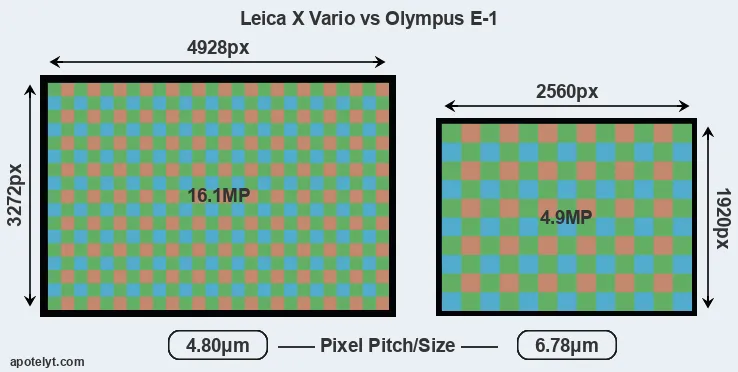

With 16.1MP, the X Vario offers a higher resolution than the E-1 (4.9MP), but the X Vario has smaller individual pixels (pixel pitch of 4.80μm versus 6.78μm for the E-1). However, the X Vario is a much more recent model (by 9 years and 11 months) than the E-1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Leica X Vario implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X Vario for good quality output (200 dots per inch) amounts to 24.6 x 16.4 inches or 62.6 x 41.6 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.7 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

The Leica X Vario (Typ 107) has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the X Vario is build around a CMOS sensor, while the E-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
2.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
3.		Leica Digilux 3	Four Thirds	7.4	3136	2352	none	21.0	10.6	127	53
4.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
5.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
6.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
7.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
8.		Leica X-U Typ 113	APS-C	16.1	4928	3264	1080/30p	23.8	13.0	1614	80
9.		Nikon Coolpix A	APS-C	16.1	4928	3264	1080/30p	23.4	13.8	1164	80
10.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
11.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
12.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
13.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
14.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
15.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
16.		Ricoh GR	APS-C	16.1	4928	3264	1080/30p	23.6	13.5	972	78
17.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The X Vario indeed provides movie recording capabilities, while the E-1 does not. The highest resolution format that the X Vario can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X Vario relies on live view and the rear LCD for framing. That said, the X Vario can be equipped with an optional viewfinder – the EVF 2. The following table reports on some other key feature differences and similarities of the Leica X Vario, the Olympus E-1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
2.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
3.		Leica Digilux 3	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
4.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
5.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
6.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
7.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
8.		Leica X-U Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
9.		Nikon Coolpix A	optional	n	3.0 / 921	fixed	n	1/2000s	4.0/s	Y	n
10.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
11.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
12.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
13.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
14.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
15.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
16.		Ricoh GR	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
17.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X Vario has one, while the E-1 does not. While the built-in flash of the X Vario is not very powerful, it can at times be useful as a fill-in light.

The X Vario writes its imaging data to SDXC cards, while the E-1 uses Compact Flash or xD Picture cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the X Vario only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica X Vario (Typ 107) and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
3.		Leica Digilux 3	Y	stereo / mono	-	-	-	2.0	-	-	-
4.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
6.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
7.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Leica X-U Typ 113	Y	stereo / mono	-	-	-	2.0	-	-	-
9.		Nikon Coolpix A	Y	stereo / mono	-	-	-	2.0	-	-	-
10.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
11.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
15.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
16.		Ricoh GR	Y	mono / mono	-	-	micro	2.0	-	-	-
17.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Olympus E-1 (unlike the X Vario) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the X Vario and the E-1 have been discontinued, but can regularly be found used on ebay. The E-1 was replaced by the Olympus E-3, while the X Vario does not have a direct successor. Further information on the features and operation of the X Vario and E-1 can be found, respectively, in the Leica X Vario Manual (free pdf) or the online Olympus E-1 Manual.

Review summary

So how do things add up? Which of the two cameras – the Leica X Vario or the Olympus E-1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Leica X Vario (Typ 107):

• More detail: Offers more megapixels (16.1 vs 4.9MP) with a 85% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 134k dots).
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the E-1 requires a separate lens.
• More compact: Is smaller (133x73mm vs 141x104mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-1).
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 9 years and 11 months of technical progress since the E-1 launch.

Arguments in favor of the Olympus E-1:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (750 versus 450) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in June 2003).

If the number of relative strengths (bullet points above) is taken as a guide, the X Vario is the clear winner of the match-up (15 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica X Vario and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the X Vario or the E-1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
2.		Olympus E-1	..	..	..	+	o	..	Jun 2003	US$ 1 699	ebay.com
3.		Leica Digilux 3	..	..	..	..	..	..	Sep 2006	US$ 1 499	ebay.com
4.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
5.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	US$ 1 849	ebay.com
6.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
7.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	US$ 2 299	ebay.com
8.		Leica X-U Typ 113	3.5/5	..	..	..	..	3.5/5	Jan 2016	US$ 2 949	ebay.com
9.		Nikon Coolpix A	4/5	+	..	75/100	4/5	4/5	Mar 2013	US$ 1 099	ebay.com
10.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	US$ 2 749	ebay.com
11.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	US$ 1 699	ebay.com
12.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	US$ 1 699	ebay.com
13.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
14.		Olympus E-330	..	..	..	+	o	..	Jan 2006	US$ 999	ebay.com
15.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
16.		Ricoh GR	5/5	..	..	79/100	4.5/5	4.5/5	Apr 2013	US$ 799	ebay.com
17.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	US$ 2 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
