Leica X1 vs Nikon D500

The Leica X1 and the Nikon D500 are two digital cameras that were revealed to the public, respectively, in September 2009 and January 2016. The X1 is a fixed lens compact, while the D500 is a DSLR. Both cameras are equipped with an APS-C sensor. The Leica has a resolution of 12.2 megapixels, whereas the Nikon provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica X1		Nikon D500
Fixed lens compact camera		Digital single lens reflex
36mm f/2.8		Nikon F mount lenses
12.2 MP – APS-C sensor		20.7 MP – APS-C sensor
no Video		4K/30p Video
ISO 100-3,200		ISO 100-51,200 (50 - 1,640,000)
No viewfinder, LCD framing		Optical viewfinder
2.7" LCD – 230k dots		3.2" LCD – 2359k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		10 shutter flaps per second
not weather sealed		Weathersealed body
260 shots per battery charge		1240 shots per battery charge
124 x 60 x 32 mm, 306 g		147 x 115 x 81 mm, 860 g

Check X1 offers at
ebay.com
Check D500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica X1 and the Nikon D500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

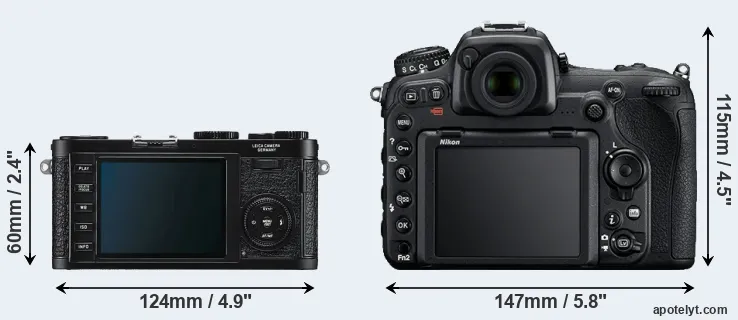

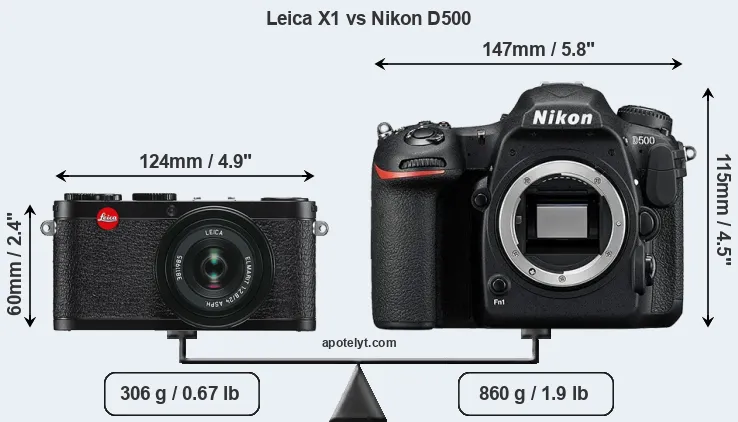

The physical size and weight of the Leica X1 and the Nikon D500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The X1 can be obtained in two different colors (black, silver), while the D500 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D500 is considerably larger (127 percent) than the Leica X1. It is noteworthy in this context that the D500 is splash and dust-proof, while the X1 does not feature any corresponding weather-sealing.

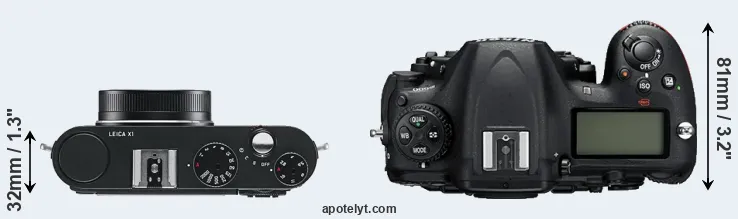

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X1 has a lens built in, whereas the D500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D500 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the X1 gets 260 shots out of its Leica BP-DC8 battery, while the D500 can take 1240 images on a single charge of its Nikon EN-EL15 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica X1	124 mm	60 mm	32 mm	306 g	260	n	Sep 2009	US$ 1 999	ebay.com
2.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	US$ 1 999	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
4.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
5.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	US$ 1 195	ebay.com
6.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	US$ 699	ebay.com
7.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	US$ 699	ebay.com
8.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	US$ 849	ebay.com
9.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
10.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	US$ 2 299	ebay.com
11.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	US$ 1 799	ebay.com
12.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
13.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	US$ 1 199	ebay.com
14.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	US$ 1 199	ebay.com
15.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	US$ 1 299	amazon.com
16.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

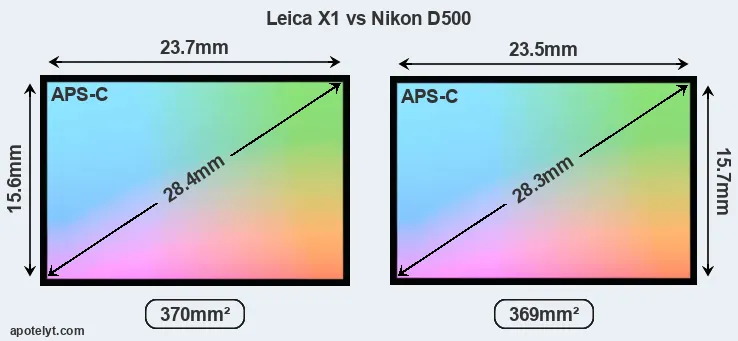

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

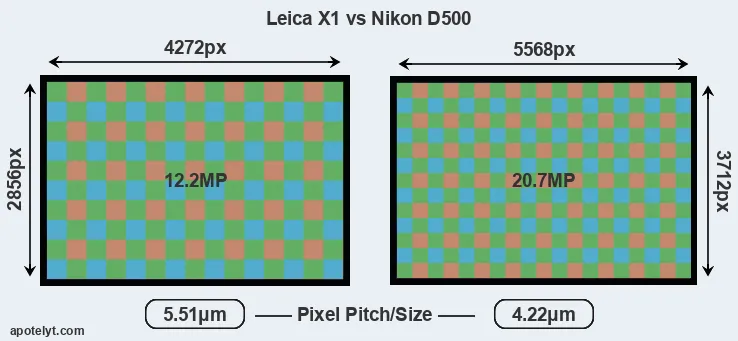

Despite having a slightly smaller sensor, the D500 offers a higher resolution of 20.7 megapixels, compared with 12.2 MP of the X1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.22μm versus 5.51μm for the X1). However, it should be noted that the D500 is much more recent (by 6 years and 3 months) than the X1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the D500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D500 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Leica X1 are 21.4 x 14.3 inches or 54.3 x 36.3 cm for good quality, 17.1 x 11.4 inches or 43.4 x 29 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.2 cm for excellent quality prints.

The Leica X1 has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Nikon D500 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-1640000.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica X1	APS-C	12.2	4272	2856	none	22.6	11.8	1037	69
2.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
5.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
6.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
7.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
8.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
9.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
10.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
11.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
12.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
13.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
14.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
15.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
16.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D500 indeed provides for movie recording, while the X1 does not. The highest resolution format that the D500 can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X1 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Leica X1 and Nikon D500 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica X1	none	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	n
2.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
5.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
6.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
7.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
8.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
9.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
10.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
11.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
12.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
13.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
14.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
15.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
16.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X1 has one, while the D500 does not. While the built-in flash of the X1 is not very powerful, it can at times be useful as a fill-in light.

The Nikon D500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The X1 writes its imaging data to SDHC cards, while the D500 uses SDXC or XQD cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the X1 only has one slot. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica X1 and Nikon D500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica X1	Y	- / -	-	-	mini	2.0	-	-	-
2.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
5.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
7.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
10.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
13.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
14.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
15.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
16.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the D500 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the X1 does not provide wifi capability.

Studio photographers will appreciate that the Nikon D500 (unlike the X1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the X1 and the D500 have been discontinued, but can regularly be found used on ebay. The X1 was replaced by the Leica X2, while the D500 does not have a direct successor. Further information on the features and operation of the X1 and D500 can be found, respectively, in the Leica X1 Manual (free pdf) or the online Nikon D500 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Leica X1 and the Nikon D500? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Leica X1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Ready to shoot: Comes with a built-in lens, while the D500 requires a separate lens.
• More compact: Is smaller (124x60mm vs 147x115mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the D500).
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been available for much longer (launched in September 2009).

Reasons to prefer the Nikon D500:

• More detail: Has more megapixels (20.7 vs 12.2MP), which boosts linear resolution by 30%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2359k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (1240 versus 260) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.
• More modern: Reflects 6 years and 3 months of technical progress since the X1 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the D500 is the clear winner of the contest (23 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica X1 and the Nikon D500 place the cameras among the top in their class? Find out in the latest Best Prime Lens Compact Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the X1 and the D500 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica X1	3/5	..	..	+	..	4/5	Sep 2009	US$ 1 999	ebay.com
2.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	US$ 1 999	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
4.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
5.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	US$ 1 195	ebay.com
6.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	US$ 699	ebay.com
7.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	US$ 699	ebay.com
8.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	US$ 849	ebay.com
9.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
10.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	US$ 2 299	ebay.com
11.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	US$ 1 799	ebay.com
12.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
13.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	US$ 1 199	ebay.com
14.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	US$ 1 199	ebay.com
15.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	US$ 1 299	amazon.com
16.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check X1 offers at
ebay.com
Check D500 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check X1 offers at
ebay.com
Check D500 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
