Nikon 1 J5 vs Panasonic GF1

The Nikon 1 J5 and the Panasonic Lumix DMC-GF1 are two digital cameras that were revealed to the public, respectively, in April 2015 and September 2009. Both the J5 and the GF1 are mirrorless interchangeable lens cameras that are based on an one-inch (J5) and a Four Thirds (GF1) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon 1 J5		Panasonic GF1
Mirrorless system camera		Mirrorless system camera
Nikon 1 mount lenses		Micro Four Thirds lenses
20.7 MP – 1" sensor		12 MP – Four Thirds sensor
4K/15p Video		720/30p Video
ISO 160-12,800		ISO 100-3,200
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 1037k dots		3.0" LCD – 460k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
60 shutter flaps per second		3 shutter flaps per second
250 shots per battery charge		380 shots per battery charge
98 x 60 x 32 mm, 231 g		119 x 71 x 36 mm, 385 g

Check J5 offers at
ebay.com
Check GF1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon 1 J5 and the Panasonic Lumix DMC-GF1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

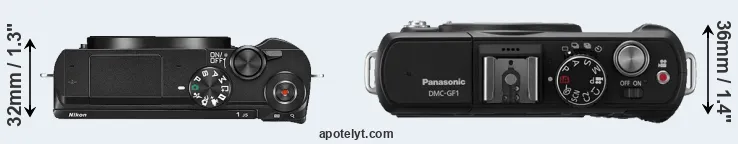

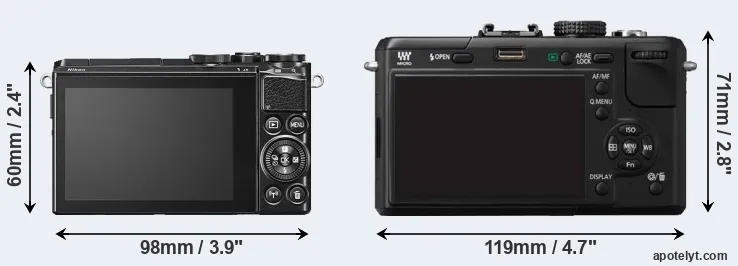

The side-by-side display below illustrates the physical size and weight of the Nikon 1 J5 and the Panasonic GF1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The J5 can be obtained in three different colors (black, silver, white), while the GF1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GF1 is considerably larger (44 percent) than the Nikon 1 J5. Moreover, the GF1 is substantially heavier (67 percent) than the J5. In this context, it is worth noting that neither the J5 nor the GF1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon 1 J5	98 mm	60 mm	32 mm	231 g	250	n	Apr 2015	US$ 399	ebay.com
2.		Panasonic GF1	119 mm	71 mm	36 mm	385 g	380	n	Sep 2009	US$ 749	ebay.com
3.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
5.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
6.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
7.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	US$ 549	ebay.com
8.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	US$ 799	ebay.com
9.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	US$ 599	ebay.com
10.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
11.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
12.		Panasonic GH1	124 mm	90 mm	45 mm	385 g	300	n	Mar 2009	US$ 899	ebay.com
13.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
14.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	US$ 449	ebay.com
15.		Sony HX80	102 mm	58 mm	36 mm	245 g	390	n	Mar 2016	US$ 349	ebay.com
16.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	US$ 429	ebay.com
17.		YI M1	114 mm	64 mm	34 mm	281 g	450	n	Sep 2016	US$ 349	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The J5 was launched at a markedly lower price (by 47 percent) than the GF1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon 1 J5 features an one-inch sensor and the Panasonic GF1 a Four Thirds sensor. The sensor area in the GF1 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the J5 has a native 3:2 aspect ratio, while the one in the GF1 offers a 4:3 aspect.

Despite having a smaller sensor, the Nikon 1 J5 offers a higher resolution of 20.7 megapixels, compared with 12 MP of the Panasonic GF1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.37μm versus 4.33μm for the GF1). However, it should be noted that the J5 is much more recent (by 5 years and 7 months) than the GF1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the J5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon 1 J5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the J5 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Panasonic GF1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The J5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Nikon 1 J5 has a native sensitivity range from ISO 160 to ISO 12800. The corresponding ISO settings for the Panasonic Lumix DMC-GF1 are ISO 100 to ISO 3200 (no boost).

In terms of underlying technology, the J5 is build around a BSI-CMOS sensor, while the GF1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the J5 provides substantially higher image quality than the GF1, with an overall score that is 11 points higher. This advantage is based on 0.099999999999998 bits lower color depth, 1.7 EV in additional dynamic range, and 0.1 stops of reduced low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon 1 J5	1-inch	20.7	5568	3712	4K/15p	21.1	12.0	479	65
2.		Panasonic GF1	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	513	54
3.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
6.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
7.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
8.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
9.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53
10.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
11.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
12.		Panasonic GH1	Four Thirds	12.0	4000	3000	1080/24p	21.6	11.6	772	64
13.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
14.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
15.		Sony HX80	1/2.3	18.0	4896	3672	1080/60p	20.4	11.8	822	48
16.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
17.		YI M1	Four Thirds	20.2	5184	3888	4K/30p	23.0	12.6	1030	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the J5 provides a higher video resolution than the GF1. It can shoot video footage at 4K/15p, while the Panasonic is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The J5 and the GF1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the GF1 can be equipped with an optional viewfinder – the DMW-LVF1. The following table reports on some other key feature differences and similarities of the Nikon 1 J5, the Panasonic GF1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon 1 J5	none	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
2.		Panasonic GF1	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
6.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
7.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
8.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
9.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
10.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
11.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
12.		Panasonic GH1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
13.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
14.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
15.		Sony HX80	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
17.		YI M1	none	n	3.0 / 1040	fixed	Y	1/4000s	5.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The J5 has a touchscreen, while the GF1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the J5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon 1 J5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The J5 writes its imaging data to SDXC cards, while the GF1 uses SDHC cards. The J5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the GF1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon 1 J5 and Panasonic Lumix DMC-GF1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon 1 J5	-	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Panasonic GF1	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
8.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
9.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-
10.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
12.		Panasonic GH1	Y	stereo / -	Y	-	mini	2.0	-	-	-
13.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony HX80	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		YI M1	Y	stereo / mono	-	-	micro	2.0	Y	-	Y

It is notable that the J5 offers wifi support, while the GF1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the J5 and the GF1 have been discontinued, but can regularly be found used on ebay. The GF1 was replaced by the Panasonic DMC-GF2, while the J5 does not have a direct successor. Further information on the features and operation of the J5 and GF1 can be found, respectively, in the Nikon 1 J5 Manual (free pdf) or the online Panasonic GF1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Nikon 1 J5 and the Panasonic GF1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Nikon 1 J5:

• More detail: Offers more megapixels (20.7 vs 12MP) with a 34% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (11 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (1.7 EV of extra DR).
• Better video: Provides higher definition movie capture (4K/15p vs 720/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (60 vs 3 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (98x60mm vs 119x71mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 154g or 40 percent) and hence easier to carry around.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (47 percent cheaper at launch).
• More modern: Reflects 5 years and 7 months of technical progress since the GF1 launch.

Reasons to prefer the Panasonic Lumix DMC-GF1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Longer lasting: Gets more shots (380 versus 250) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in September 2009).

If the number of relative strengths (bullet points above) is taken as a guide, the J5 is the clear winner of the match-up (20 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon 1 J5 and the Panasonic GF1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the J5 or the GF1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon 1 J5	..	..	..	..	4.5/5	4.5/5	Apr 2015	US$ 399	ebay.com
2.		Panasonic GF1	..	85/100	..	69/100	4.5/5	4.5/5	Sep 2009	US$ 749	ebay.com
3.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
5.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
6.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
7.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	US$ 549	ebay.com
8.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	US$ 799	ebay.com
9.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	US$ 599	ebay.com
10.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
11.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
12.		Panasonic GH1	..	+ +	..	72/100	4.5/5	4.5/5	Mar 2009	US$ 899	ebay.com
13.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
14.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	US$ 449	ebay.com
15.		Sony HX80	..	..	..	..	..	..	Mar 2016	US$ 349	ebay.com
16.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	US$ 429	ebay.com
17.		YI M1	..	..	..	69/100	..	..	Sep 2016	US$ 349	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
