Nikon D300S vs Olympus E-3

The Nikon D300S and the Olympus E-3 are two digital cameras that were revealed to the public, respectively, in July 2009 and October 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D300S) and a Four Thirds (E-3) sensor. The Nikon has a resolution of 12.2 megapixels, whereas the Olympus provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D300S		Olympus E-3
Digital single lens reflex		Digital single lens reflex
Nikon F mount lenses		Four Thirds lenses
12.2 MP – APS-C sensor		10 MP – Four Thirds sensor
720/24p Video		no Video
ISO 200-3,200 (100 - 6,400)		ISO 100-3,200
Optical viewfinder		Optical viewfinder
3.0" LCD – 920k dots		2.5" LCD – 230k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
7 shutter flaps per second		5 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		Weathersealed body
950 shots per battery charge		750 shots per battery charge
147 x 115 x 81 mm, 938 g		142 x 116 x 75 mm, 876 g

Check D300S offers at
ebay.com
Check E-3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D300S and the Olympus E-3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

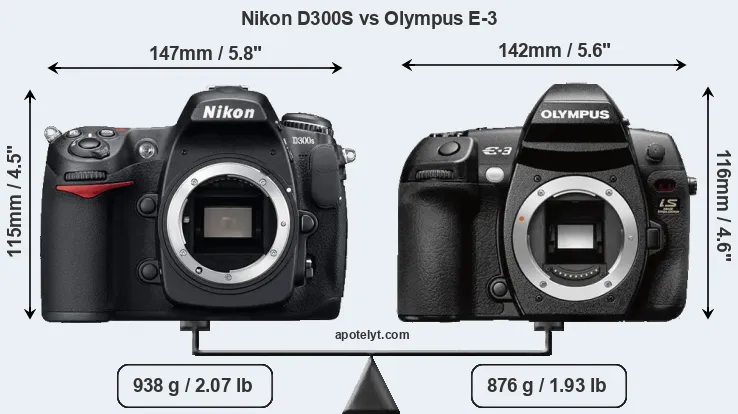

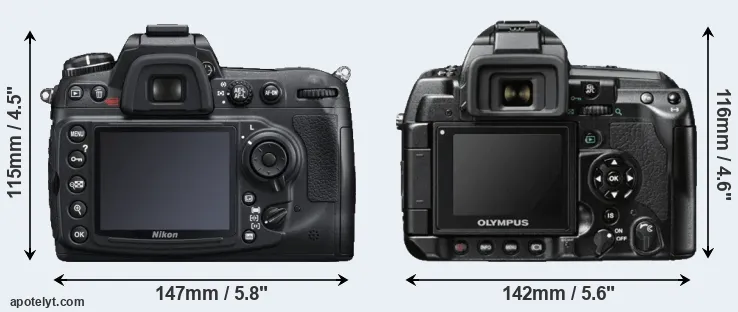

An illustration of the physical size and weight of the Nikon D300S and the Olympus E-3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-3 is somewhat smaller (3 percent) than the Nikon D300S. Moreover, the E-3 is markedly lighter (7 percent) than the D300S. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D300S) and the Four Thirds Lens Catalog (E-3).

Concerning battery life, the D300S gets 950 shots out of its Nikon EN-EL3e battery, while the E-3 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	US$ 1 799	ebay.com
2.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	US$ 1 699	ebay.com
3.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
4.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
5.		Nikon D90	132 mm	103 mm	77 mm	703 g	850	n	Aug 2008	US$ 1 299	ebay.com
6.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	US$ 1 699	ebay.com
7.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	US$ 1 799	ebay.com
8.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	US$ 1 999	ebay.com
9.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	US$ 2 999	ebay.com
10.		Nikon D3000	126 mm	97 mm	64 mm	536 g	500	n	Jul 2009	US$ 599	ebay.com
11.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	US$ 599	ebay.com
12.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	US$ 1 499	ebay.com
13.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	US$ 1 699	ebay.com
14.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	US$ 1 699	ebay.com
15.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	US$ 1 299	ebay.com
16.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	US$ 799	ebay.com
17.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-3 was somewhat cheaper (by 6 percent) than the D300S at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Nikon D300S features an APS-C sensor and the Olympus E-3 a Four Thirds sensor. The sensor area in the E-3 is 40 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D300S has a native 3:2 aspect ratio, while the one in the E-3 offers a 4:3 aspect.

With 12.2MP, the D300S offers a higher resolution than the E-3 (10MP), but the D300S nevertheless has larger individual pixels (pixel pitch of 5.53μm versus 4.74μm for the E-3) due to its larger sensor. Moreover, the D300S is a somewhat more recent model (by 1 year and 9 months) than the E-3, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Nikon D300S implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D300S for good quality output (200 dots per inch) amounts to 21.4 x 14.2 inches or 54.5 x 36.2 cm, for very good quality (250 dpi) 17.2 x 11.4 inches or 43.6 x 28.9 cm, and for excellent quality (300 dpi) 14.3 x 9.5 inches or 36.3 x 24.1 cm. The corresponding values for the Olympus E-3 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Nikon D300S has a native sensitivity range from ISO 200 to ISO 3200, which can be extended to ISO 100-6400. The corresponding ISO settings for the Olympus E-3 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the D300S provides substantially higher image quality than the E-3, with an overall score that is 14 points higher. This advantage is based on 0.9 bits higher color depth, 1.7 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
2.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
3.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
4.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
5.		Nikon D90	APS-C	12.2	4288	2848	720/24p	22.7	12.5	977	73
6.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
7.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
8.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
9.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
10.		Nikon D3000	APS-C	10.0	3872	2592	none	22.3	11.1	563	62
11.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
12.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
13.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
14.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
15.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
16.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
17.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D300S indeed provides movie recording capabilities, while the E-3 does not. The highest resolution format that the D300S can use is 720/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The D300S and the E-3 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D300S has a higher magnification than the one of the E-3 (0.63x vs 0.58x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Nikon D300S and Olympus E-3 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
2.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
3.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
4.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
5.		Nikon D90	optical	Y	3.0 / 920	fixed	n	1/4000s	4.5/s	Y	n
6.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
7.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
8.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
9.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
10.		Nikon D3000	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
13.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
14.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
15.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
16.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
17.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-3 and the D300S is in-body image stabilization (IBIS). The E-3 reduces the risk of handshake-induced blur with all attached lenses, while the D300S offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The Nikon D300S has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D300S writes its imaging data to Compact Flash or SDXC cards, while the E-3 uses Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D300S and Olympus E-3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
4.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
5.		Nikon D90	Y	mono / mono	-	-	mini	2.0	-	-	-
6.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
7.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
8.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
9.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-
10.		Nikon D3000	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-
13.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the D300S and the E-3 have been discontinued, but can regularly be found used on ebay. The E-3 was replaced by the Olympus E-5, while the D300S was followed by the Nikon D500. Further information on the features and operation of the D300S and E-3 can be found, respectively, in the Nikon D300S Manual (free pdf) or the online Olympus E-3 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Nikon D300S or the Olympus E-3 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Advantages of the Nikon D300S:

• More detail: Offers more megapixels (12.2 vs 10MP) with a 13% higher linear resolution.
• Better image quality: Scores substantially higher (14 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (1.7 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
• Broader imaging potential: Can record not only still images but also 720/24p movies.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.58x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
• Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Can take more shots (950 versus 750) on a single battery charge.
• More modern: Is somewhat more recent (announced 1 year and 9 months after the E-3).

Reasons to prefer the Olympus E-3:

• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More heavily discounted: Has been on the market for longer (launched in October 2007).

If the number of relative strengths (bullet points above) is taken as a guide, the D300S is the clear winner of the match-up (12 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D300S and the Olympus E-3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D300S and the E-3 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	US$ 1 799	ebay.com
2.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	US$ 1 699	ebay.com
3.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
4.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
5.		Nikon D90	..	+ +	..	+ +	4/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
6.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	US$ 1 699	ebay.com
7.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	US$ 1 799	ebay.com
8.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	US$ 1 999	ebay.com
9.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	US$ 2 999	ebay.com
10.		Nikon D3000	..	+	..	72/100	4/5	4.5/5	Jul 2009	US$ 599	ebay.com
11.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	US$ 599	ebay.com
12.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	US$ 1 499	ebay.com
13.		Olympus E-1	..	..	..	+	o	..	Jun 2003	US$ 1 699	ebay.com
14.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	US$ 1 699	ebay.com
15.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	US$ 1 299	ebay.com
16.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	US$ 799	ebay.com
17.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check D300S offers at
ebay.com
Check E-3 offers at
ebay.com
