Nikon D40X vs Panasonic LF1

The Nikon D40X and the Panasonic Lumix DMC-LF1 are two digital cameras that were officially introduced, respectively, in March 2007 and April 2013. The D40X is a DSLR, while the LF1 is a fixed lens compact. The cameras are based on an APS-C (D40X) and a 1/1.7-inch (LF1) sensor. The Nikon has a resolution of 10 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D40X		Panasonic LF1
Digital single lens reflex		Fixed lens compact camera
Nikon F mount lenses		28-200mm f/2.0-5.9
10 MP – APS-C sensor		12 MP – 1/1.7" sensor
no Video		1080/60i Video
ISO 100-1,600 (100 - 3,200)		ISO 80-6,400 (80 - 12,800)
Optical viewfinder		Electronic viewfinder (200k dots)
2.5" LCD – 230k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		10 shutter flaps per second
520 shots per battery charge		250 shots per battery charge
124 x 94 x 64 mm, 522 g		103 x 62 x 28 mm, 192 g

Check D40X offers at
ebay.com
Check LF1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D40X and the Panasonic Lumix DMC-LF1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

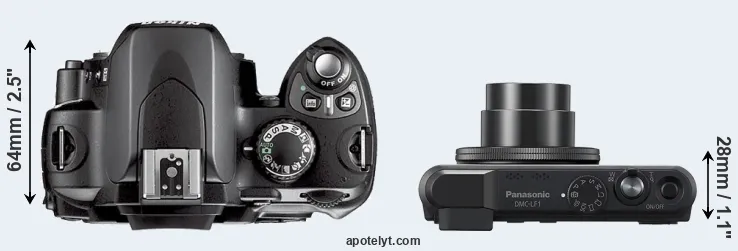

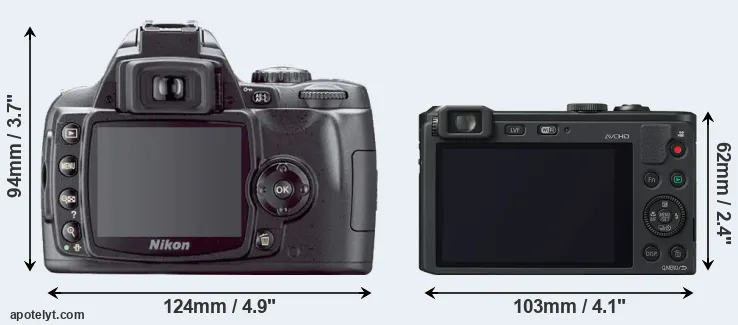

The physical size and weight of the Nikon D40X and the Panasonic LF1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The D40X can be obtained in two different colors (black, silver), while the LF1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LF1 is considerably smaller (45 percent) than the Nikon D40X. In this context, it is worth noting that neither the D40X nor the LF1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LF1 has a lens built in, whereas the D40X is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D40X and their specifications in the Nikon Lens Catalog.

The power pack in the LF1 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	US$ 729	ebay.com
2.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	US$ 499	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
4.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	US$ 449	ebay.com
5.		Nikon D40	124 mm	94 mm	64 mm	522 g	470	n	Nov 2006	US$ 499	ebay.com
6.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
7.		Nikon D60	126 mm	94 mm	64 mm	522 g	500	n	Jan 2008	US$ 629	ebay.com
8.		Nikon D80	132 mm	103 mm	77 mm	668 g	600	n	Aug 2006	US$ 999	ebay.com
9.		Nikon D90	132 mm	103 mm	77 mm	703 g	850	n	Aug 2008	US$ 1 299	ebay.com
10.		Nikon D3000	126 mm	97 mm	64 mm	536 g	500	n	Jul 2009	US$ 599	ebay.com
11.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	US$ 599	ebay.com
12.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	US$ 749	ebay.com
13.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
14.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	US$ 599	ebay.com
15.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
16.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	US$ 599	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The LF1 was launched at a lower price than the D40X, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

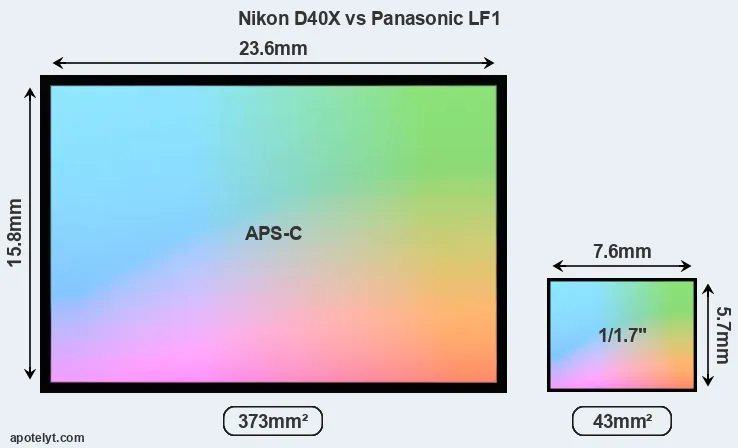

Of the two cameras under consideration, the Nikon D40X features an APS-C sensor and the Panasonic LF1 a 1/1.7-inch sensor. The sensor area in the LF1 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.5. The sensor in the D40X has a native 3:2 aspect ratio, while the one in the LF1 offers a 4:3 aspect.

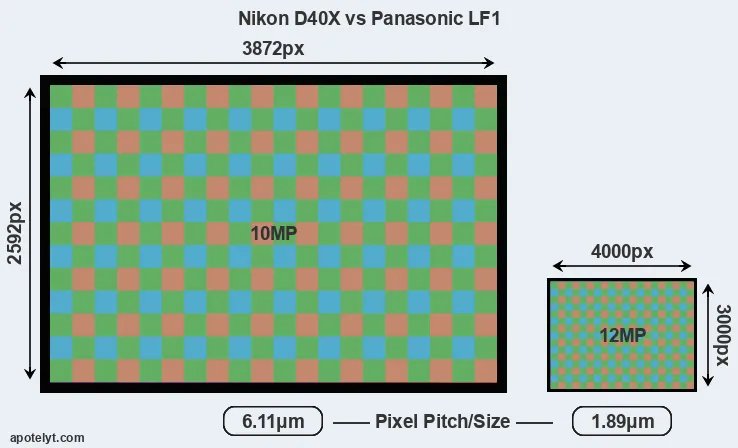

Despite having a smaller sensor, the LF1 offers a higher resolution of 12 megapixels, compared with 10 MP of the D40X. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.89μm versus 6.11μm for the D40X). However, it should be noted that the LF1 is much more recent (by 6 years and 1 month) than the D40X, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic LF1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the LF1 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Nikon D40X are 19.4 x 13 inches or 49.2 x 32.9 cm for good quality, 15.5 x 10.4 inches or 39.3 x 26.3 cm for very good quality, and 12.9 x 8.6 inches or 32.8 x 21.9 cm for excellent quality prints.

The Nikon D40X has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Panasonic Lumix DMC-LF1 are ISO 80 to ISO 6400, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the D40X is build around a CCD sensor, while the LF1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the D40X provides substantially higher image quality than the LF1, with an overall score that is 11 points higher. This advantage is based on 1.6 bits higher color depth, 0.2 EV of lower dynamic range, and 1.3 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
2.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
5.		Nikon D40	APS-C	6.0	3008	2000	none	21.0	11.0	561	56
6.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
7.		Nikon D60	APS-C	10.0	3872	2592	none	22.5	11.4	562	65
8.		Nikon D80	APS-C	10.0	3872	2592	none	22.1	11.2	524	61
9.		Nikon D90	APS-C	12.2	4288	2848	720/24p	22.7	12.5	977	73
10.		Nikon D3000	APS-C	10.0	3872	2592	none	22.3	11.1	563	62
11.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
12.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
13.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
14.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
15.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
16.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50

Many modern cameras are not only capable of taking still images, but can also record movies. The LF1 indeed provides for movie recording, while the D40X does not. The highest resolution format that the LF1 can use is 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the LF1 has an electronic viewfinder (200k dots), while the D40X has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Nikon D40X, the Panasonic LF1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
5.		Nikon D40	optical	n	2.5 / 230	fixed	n	1/4000s	2.5/s	Y	n
6.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
7.		Nikon D60	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
8.		Nikon D80	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
9.		Nikon D90	optical	Y	3.0 / 920	fixed	n	1/4000s	4.5/s	Y	n
10.		Nikon D3000	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
13.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
14.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
15.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
16.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The D40X writes its imaging data to SDHC cards, while the LF1 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D40X and Panasonic Lumix DMC-LF1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
2.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Nikon D40	Y	- / -	-	-	-	2.0	-	-	-
6.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
7.		Nikon D60	Y	- / -	-	-	-	2.0	-	-	-
8.		Nikon D80	Y	- / -	-	-	-	2.0	-	-	-
9.		Nikon D90	Y	mono / mono	-	-	mini	2.0	-	-	-
10.		Nikon D3000	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
13.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
15.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the D40X has a hotshoe, while the LF1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the D40X and the LF1 have been discontinued, but can regularly be found used on ebay. The D40X was replaced by the Nikon D60 , while the LF1 does not have a direct successor. Further information on the features and operation of the D40X and LF1 can be found, respectively, in the Nikon D40X Manual (free pdf) or the online Panasonic LF1 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Nikon D40X and the Panasonic LF1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Nikon D40X:

• Better image quality: Scores substantially higher (11 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.6 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (1.3 stops ISO advantage).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (520 versus 250) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been available for much longer (launched in March 2007).

Arguments in favor of the Panasonic Lumix DMC-LF1:

• More detail: Has more megapixels (12 vs 10MP), which boosts linear resolution by 7%.
• Broader imaging potential: Can capture not only stills but also 1080/60i video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
• Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with an integrated lens, while the D40X requires a separate lens.
• More compact: Is smaller (103x62mm vs 124x94mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the D40X).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 6 years and 1 month of technical progress since the D40X launch.

If the count of relative strengths (bullet points above) is taken as a measure, the LF1 is the clear winner of the contest (15 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D40X and the Panasonic LF1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D40X and the LF1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	US$ 729	ebay.com
2.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	US$ 499	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
4.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	US$ 449	ebay.com
5.		Nikon D40	..	81/100	..	+ +	o	4.5/5	Nov 2006	US$ 499	ebay.com
6.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
7.		Nikon D60	..	80/100	..	+ +	4/5	4.5/5	Jan 2008	US$ 629	ebay.com
8.		Nikon D80	..	+	..	+ +	o	4.5/5	Aug 2006	US$ 999	ebay.com
9.		Nikon D90	..	+ +	..	+ +	4/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
10.		Nikon D3000	..	+	..	72/100	4/5	4.5/5	Jul 2009	US$ 599	ebay.com
11.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	US$ 599	ebay.com
12.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	US$ 749	ebay.com
13.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
14.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	US$ 599	ebay.com
15.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
16.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	US$ 599	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
