Olympus E-520 vs Panasonic GH1

The Olympus E-520 and the Panasonic Lumix DMC-GH1 are two digital cameras that were announced, respectively, in May 2008 and March 2009. The E-520 is a DSLR, while the GH1 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The Olympus has a resolution of 10 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-520		Panasonic GH1
Digital single lens reflex		Mirrorless system camera
Four Thirds lenses		Micro Four Thirds lenses
10 MP – Four Thirds sensor		12 MP – Four Thirds sensor
no Video		1080/24p Video
ISO 100-1,600		ISO 100-1,600 (100 - 3,200)
Optical viewfinder		Electronic viewfinder (1440k dots)
2.7" LCD – 215k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
3.5 shutter flaps per second		3 shutter flaps per second
In-body stabilization		Lens stabilization only
750 shots per battery charge		300 shots per battery charge
136 x 92 x 68 mm, 535 g		124 x 90 x 45 mm, 385 g

Check E-520 offers at
ebay.com
Check GH1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-520 and the Panasonic Lumix DMC-GH1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

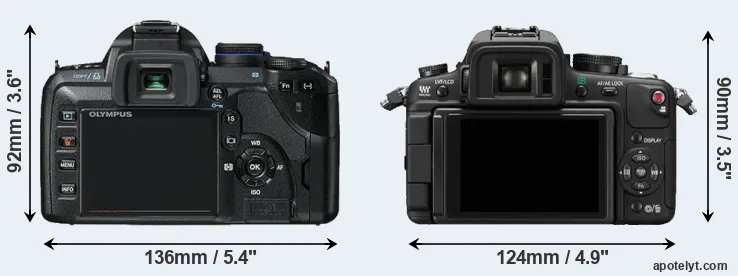

The physical size and weight of the Olympus E-520 and the Panasonic GH1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The GH1 can be obtained in two different colors (black, red), while the E-520 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH1 is notably smaller (11 percent) than the Olympus E-520. Moreover, the GH1 is markedly lighter (28 percent) than the E-520. In this context, it is worth noting that neither the E-520 nor the GH1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-520) and the Micro Four Thirds Lens Catalog (GH1). Mirrorless cameras, such as the GH1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-520 gets 750 shots out of its Olympus BLM-1 battery, while the GH1 can take 300 images on a single charge of its Panasonic DMW-BLB13 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	US$ 699	ebay.com
2.		Panasonic GH1	124 mm	90 mm	45 mm	385 g	300	n	Mar 2009	US$ 899	ebay.com
3.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	US$ 1 299	ebay.com
4.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
5.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	US$ 599	ebay.com
6.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	US$ 499	ebay.com
7.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	US$ 799	ebay.com
8.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	US$ 449	ebay.com
9.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
10.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
11.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
12.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	US$ 599	ebay.com
13.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
14.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
15.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
16.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	US$ 599	ebay.com
17.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	US$ 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-520 was launched at a somewhat lower price (by 22 percent) than the GH1, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

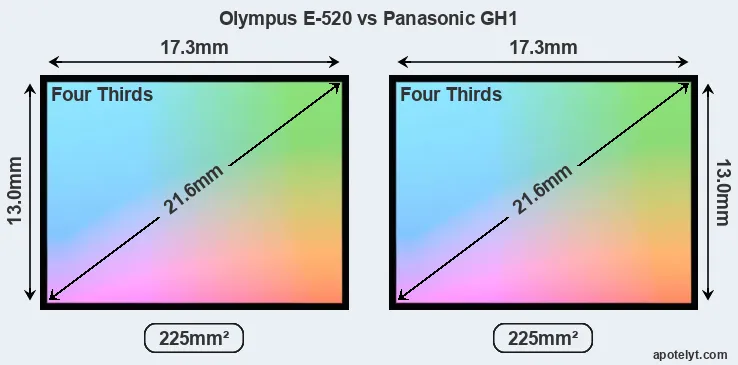

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

While the two cameras under review share the same sensor size, the GH1 offers a higher resolution of 12 megapixels, compared with 10 MP of the E-520. This megapixels advantage translates into a 10 percent gain in linear resolution. On the other hand, these sensor specs imply that the GH1 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.33μm versus 4.74μm for the E-520). However, it should be noted that the GH1 is a somewhat more recent model (by 9 months) than the E-520, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size.

The resolution advantage of the Panasonic GH1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GH1 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Olympus E-520 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-520 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-GH1 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the GH1 has a markedly higher DXO score than the E-520 (overall score 9 points higher), which will translate into better image quality. The advantage is based on 0.2 bits higher color depth, 1.2 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
2.		Panasonic GH1	Four Thirds	12.0	4000	3000	1080/24p	21.6	11.6	772	64
3.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
4.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
5.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
6.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
7.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
8.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
9.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
10.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
11.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
12.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53
13.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
14.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
15.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
16.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
17.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The GH1 indeed provides for movie recording, while the E-520 does not. The highest resolution format that the GH1 can use is 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the GH1 has an electronic viewfinder (1440k dots), while the E-520 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the GH1 offers a wider field of view (100%) than the one in the E-520 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the GH1 has a higher magnification (0.70x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Olympus E-520 and Panasonic GH1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
2.		Panasonic GH1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
3.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
4.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
5.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
6.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
7.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
8.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
9.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
10.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
11.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
12.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
13.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
14.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
15.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
16.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
17.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-520 and the GH1 is in-body image stabilization (IBIS). The E-520 reduces the risk of handshake-induced blur with all attached lenses, while the GH1 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The E-520 writes its imaging data to Compact Flash or xD Picture cards, while the GH1 uses SDHC cards. The E-520 features dual card slots, which can be very useful in case a memory card fails. In contrast, the GH1 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-520 and Panasonic Lumix DMC-GH1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
2.		Panasonic GH1	Y	stereo / -	Y	-	mini	2.0	-	-	-
3.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
4.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
5.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-
13.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
15.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-
17.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

Both the E-520 and the GH1 have been discontinued, but can regularly be found used on ebay. The GH1 was replaced by the Panasonic GH2, while the E-520 does not have a direct successor. Further information on the features and operation of the E-520 and GH1 can be found, respectively, in the Olympus E-520 Manual (free pdf) or the online Panasonic GH1 Manual.

Review summary

So what conclusions can be drawn? Is the Olympus E-520 better than the Panasonic GH1 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Olympus E-520:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Faster burst: Shoots at higher frequency (3.5 vs 3 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (750 versus 300) on a single battery charge.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More affordable: Was introduced into a lower priced segment (22 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in May 2008).

Arguments in favor of the Panasonic Lumix DMC-GH1:

• More detail: Has more megapixels (12 vs 10MP), which boosts linear resolution by 10%.
• Better image quality: Scores markedly higher (9 points) in the DXO overall evaluation.
• More dynamic range: Captures a broader range of light and dark details (1.2 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.5 stops ISO advantage).
• Broader imaging potential: Can capture not only stills but also 1080/24p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.46x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 215k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (124x90mm vs 136x92mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 150g or 28 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More modern: Was introduced somewhat (9 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the GH1 is the clear winner of the contest (16 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-520 and the Panasonic GH1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the E-520 or the GH1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	US$ 699	ebay.com
2.		Panasonic GH1	..	+ +	..	72/100	4.5/5	4.5/5	Mar 2009	US$ 899	ebay.com
3.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	US$ 1 299	ebay.com
4.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
5.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	US$ 599	ebay.com
6.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	US$ 499	ebay.com
7.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	US$ 799	ebay.com
8.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	US$ 449	ebay.com
9.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
10.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
11.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
12.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	US$ 599	ebay.com
13.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
14.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
15.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
16.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	US$ 599	ebay.com
17.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	US$ 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
