Olympus E-PL10 vs Sony NEX-5

The Olympus PEN E-PL10 and the Sony Alpha NEX-5 are two digital cameras that were announced, respectively, in October 2019 and May 2010. Both the E-PL10 and the NEX-5 are mirrorless interchangeable lens cameras that are based on a Four Thirds (E-PL10) and an APS-C (NEX-5) sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Sony provides 14 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL10		Sony NEX-5
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Sony E mount lenses
15.9 MP – Four Thirds sensor		14 MP – APS-C sensor
4K/30p Video		1080/60i Video
ISO 200-6,400 (100 - 25,600)		ISO 200-12,800
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 1040k dots		3.0" LCD – 920k dots
Tilting touchscreen		Tilting screen (no touchscreen)
8.6 shutter flaps per second		7 shutter flaps per second
In-body stabilization		Lens stabilization only
350 shots per battery charge		330 shots per battery charge
117 x 68 x 39 mm, 380 g		111 x 59 x 38 mm, 287 g

Check E-PL10 offers at
ebay.com
Check NEX-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL10 and the Sony Alpha NEX-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

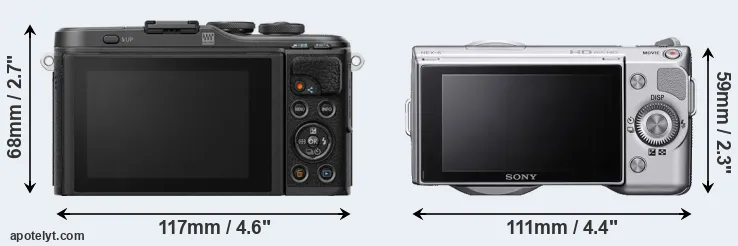

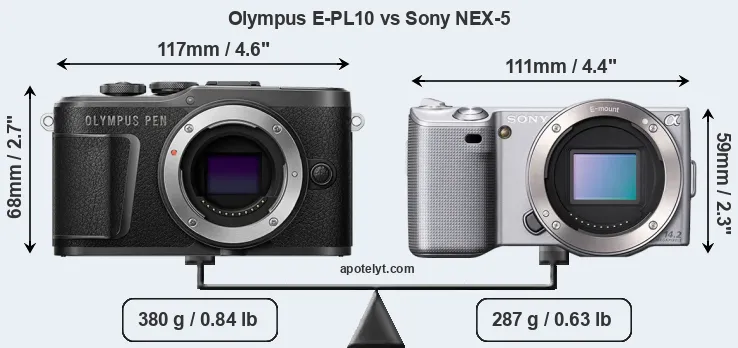

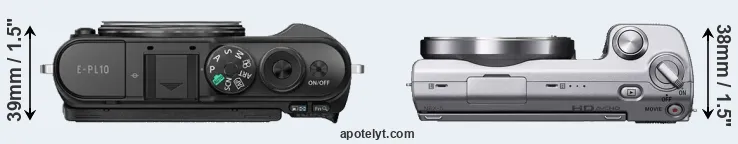

The side-by-side display below illustrates the physical size and weight of the Olympus E-PL10 and the Sony NEX-5. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-PL10 can be obtained in four different colors (black, brown, blue, white), while the NEX-5 is available in two color-versions (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5 is notably smaller (18 percent) than the Olympus E-PL10. Moreover, the NEX-5 is markedly lighter (24 percent) than the E-PL10. In this context, it is worth noting that neither the E-PL10 nor the NEX-5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Micro Four Thirds Lens Catalog (E-PL10) and the Sony E-Mount Lens Catalog (NEX-5). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the E-PL10 gets 350 shots out of its Olympus BLS-50 battery, while the NEX-5 can take 330 images on a single charge of its Sony NP-FW50 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL10	117 mm	68 mm	39 mm	380 g	350	n	Oct 2019	US$ 599	ebay.com
2.		Sony NEX-5	111 mm	59 mm	38 mm	287 g	330	n	May 2010	US$ 699	ebay.com
3.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
4.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
5.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	US$ 649	ebay.com
6.		Olympus E-M10 IV	122 mm	84 mm	49 mm	383 g	360	n	Aug 2020	US$ 699	amazon.com
7.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
8.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
9.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	US$ 599	ebay.com
10.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
11.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	US$ 549	ebay.com
12.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	US$ 599	ebay.com
13.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	US$ 599	ebay.com
14.		Sony NEX-5N	111 mm	59 mm	38 mm	269 g	460	n	Aug 2011	US$ 699	ebay.com
15.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	US$ 749	ebay.com
16.		Sony NEX-C3	110 mm	60 mm	33 mm	225 g	400	n	Jun 2011	US$ 599	ebay.com
17.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL10 was launched at a somewhat lower price (by 14 percent) than the NEX-5, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

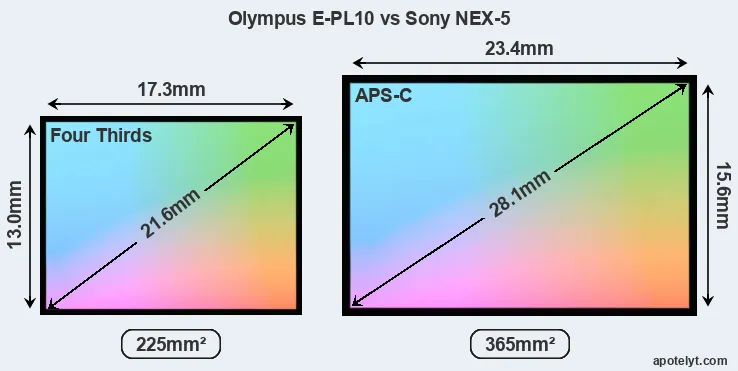

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-PL10 features a Four Thirds sensor and the Sony NEX-5 an APS-C sensor. The sensor area in the NEX-5 is 62 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-PL10 has a native 4:3 aspect ratio, while the one in the NEX-5 offers a 3:2 aspect.

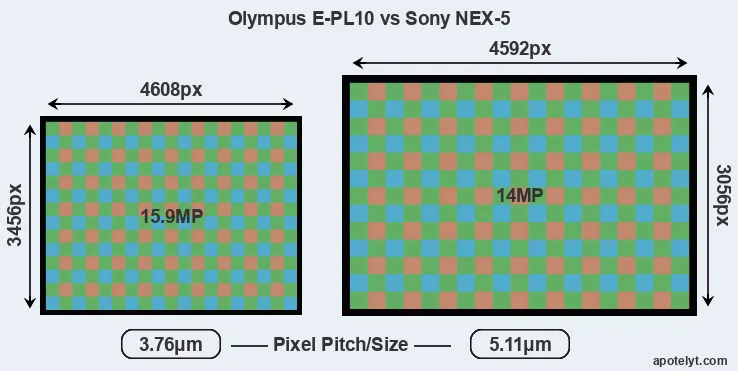

Despite having a smaller sensor, the Olympus E-PL10 offers a higher resolution of 15.9 megapixels, compared with 14 MP of the Sony NEX-5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 5.11μm for the NEX-5). However, it should be noted that the E-PL10 is much more recent (by 9 years and 5 months) than the NEX-5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The Olympus PEN E-PL10 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Alpha NEX-5 are ISO 200 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL10	Four Thirds	15.9	4608	3456	4K/30p	23.3	13.1	1324	76
2.		Sony NEX-5	APS-C	14.0	4592	3056	1080/60i	22.2	12.2	796	69
3.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
4.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
5.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
6.		Olympus E-M10 IV	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.2	1402	76
7.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
8.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
9.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
10.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
11.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
12.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
13.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68
14.		Sony NEX-5N	APS-C	16.0	4912	3264	1080/60i	23.6	12.7	1079	77
15.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
16.		Sony NEX-C3	APS-C	16.0	4912	3264	720/30p	22.7	12.2	1083	73
17.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-PL10 provides a higher video resolution than the NEX-5. It can shoot video footage at 4K/30p, while the Sony is limited to 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The E-PL10 and the NEX-5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the NEX-5 can be equipped with an optional viewfinder – the FDA-SV1. The following table reports on some other key feature differences and similarities of the Olympus E-PL10, the Sony NEX-5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL10	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
2.		Sony NEX-5	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
3.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
4.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
5.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
6.		Olympus E-M10 IV	2360	n	3.0 / 1040	tilting	Y	1/4000s	15.0/s	Y	Y
7.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
8.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
9.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
10.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
13.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
14.		Sony NEX-5N	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
15.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
16.		Sony NEX-C3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	n	n
17.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The E-PL10 has one, while the NEX-5 does not. While the built-in flash of the E-PL10 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-PL10 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-PL10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-PL10 writes its imaging data to SDXC cards, while the NEX-5 uses SDXC or Memory Stick PRO Duo cards. The E-PL10 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL10 and Sony Alpha NEX-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL10	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
2.		Sony NEX-5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
4.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Olympus E-M10 IV	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
7.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony NEX-5N	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
16.		Sony NEX-C3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the E-PL10 offers wifi support, while the NEX-5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the E-PL10 and the NEX-5 have been discontinued, but can regularly be found used on ebay. The NEX-5 was replaced by the Sony NEX-5N, while the E-PL10 does not have a direct successor. Further information on the features and operation of the E-PL10 and NEX-5 can be found, respectively, in the Olympus E-PL10 Manual (free pdf) or the online Sony NEX-5 Manual.

Review summary

So how do things add up? Is the Olympus E-PL10 better than the Sony NEX-5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Olympus PEN E-PL10:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (8.6 vs 7 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced segment (14 percent cheaper at launch).
• More modern: Reflects 9 years and 5 months of technical progress since the NEX-5 launch.

Arguments in favor of the Sony Alpha NEX-5:

• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More compact: Is smaller (111x59mm vs 117x68mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 93g or 24 percent) and is thus easier to take along.
• More heavily discounted: Has been around for much longer (launched in May 2010).

If the number of relative strengths (bullet points above) is taken as a guide, the E-PL10 is the clear winner of the match-up (13 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL10 and the Sony NEX-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the E-PL10 or the NEX-5 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL10	..	..	4/5	77/100	..	4/5	Oct 2019	US$ 599	ebay.com
2.		Sony NEX-5	3/5	+ +	..	71/100	4.5/5	4/5	May 2010	US$ 699	ebay.com
3.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
4.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
5.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	US$ 649	ebay.com
6.		Olympus E-M10 IV	4.5/5	..	5/5	81/100	4.5/5	4.5/5	Aug 2020	US$ 699	amazon.com
7.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
8.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
9.		Olympus E-PL6	..	..	..	..	..	..	May 2013	US$ 599	ebay.com
10.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
11.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	US$ 549	ebay.com
12.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	US$ 599	ebay.com
13.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	US$ 599	ebay.com
14.		Sony NEX-5N	3/5	+ +	..	79/100	4.5/5	4.5/5	Aug 2011	US$ 699	ebay.com
15.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	US$ 749	ebay.com
16.		Sony NEX-C3	3/5	+ +	..	74/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
17.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check E-PL10 offers at
ebay.com
Check NEX-5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check E-PL10 offers at
ebay.com
Check NEX-5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
