Olympus E-PL2 vs Pentax MX-1

The Olympus PEN E-PL2 and the Pentax MX-1 are two digital cameras that were announced, respectively, in January 2011 and January 2013. The E-PL2 is a mirrorless interchangeable lens camera, while the MX-1 is a fixed lens compact. The cameras are based on a Four Thirds (E-PL2) and a 1/1.7-inch (MX-1) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Pentax provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL2		Pentax MX-1
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		28-112mm f/1.8-2.5
12.2 MP – Four Thirds sensor		12 MP – 1/1.7" sensor
720/30p Video		1080/30p Video
ISO 200-6,400		ISO 100-12,800
Viewfinder optional		No viewfinder, LCD framing
3.0" LCD – 460k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
3 shutter flaps per second		1 shutter flaps per second
In-body stabilization		In-body stabilization
280 shots per battery charge		290 shots per battery charge
114 x 72 x 42 mm, 362 g		122 x 61 x 51 mm, 391 g

Check E-PL2 offers at
ebay.com
Check MX-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL2 and the Pentax MX-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

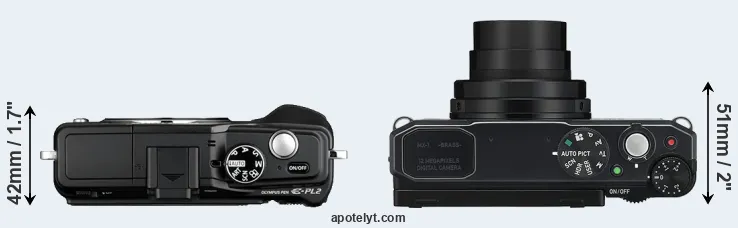

The side-by-side display below illustrates the physical size and weight of the Olympus E-PL2 and the Pentax MX-1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-PL2 can be obtained in four different colors (black, silver, red, white), while the MX-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax MX-1 is notably smaller (9 percent) than the Olympus E-PL2. In this context, it is worth noting that neither the E-PL2 nor the MX-1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the MX-1 has a lens built in, whereas the E-PL2 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL2 and their specifications in the Micro Four Thirds Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
2.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	US$ 499	ebay.com
3.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
6.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
7.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
8.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
9.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
10.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
11.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
12.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
13.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
14.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
15.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	US$ 549	ebay.com
16.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The MX-1 was launched at a lower price than the E-PL2, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

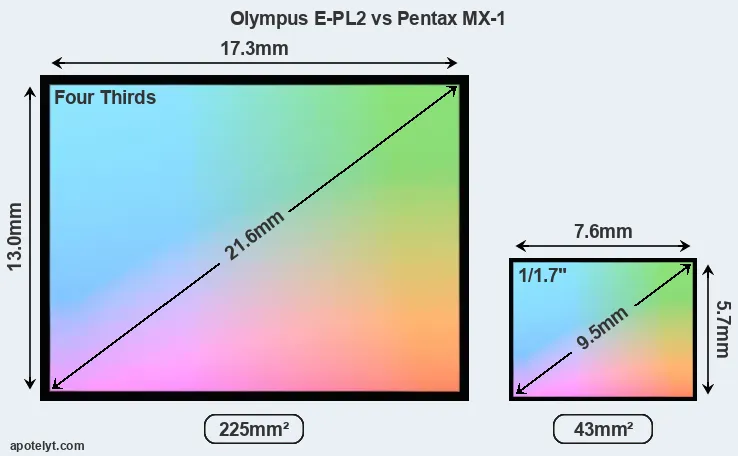

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Olympus E-PL2 features a Four Thirds sensor and the Pentax MX-1 a 1/1.7-inch sensor. The sensor area in the MX-1 is 81 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 4.5. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

With 12.2MP, the E-PL2 offers a slightly higher resolution than the MX-1 (12MP), but the E-PL2 nevertheless has larger individual pixels (pixel pitch of 4.29μm versus 1.89μm for the MX-1) due to its larger sensor. However, the MX-1 is a much more recent model (by 2 years) than the E-PL2, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The Olympus PEN E-PL2 has a native sensitivity range from ISO 200 to ISO 6400. The corresponding ISO settings for the Pentax MX-1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the E-PL2 has a notably higher overall DXO score than the MX-1 (overall score 6 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 1 bits higher color depth, 1.1 EV of lower dynamic range, and 1.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
2.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
3.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
6.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
7.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
8.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
9.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
10.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
11.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
12.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
13.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
14.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
15.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54
16.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the MX-1 provides a better video resolution than the E-PL2. It can shoot movie footage at 1080/30p, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The E-PL2 and the MX-1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL2 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Olympus E-PL2, the Pentax MX-1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
2.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
3.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
6.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
7.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
8.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
9.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
10.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
11.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
13.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
14.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
15.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
16.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The E-PL2 writes its imaging data to SDHC cards, while the MX-1 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL2 and Pentax MX-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
7.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
10.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
15.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-

It is notable that the E-PL2 has a hotshoe, while the MX-1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the E-PL2 and the MX-1 have been discontinued, but can regularly be found used on ebay. The E-PL2 was replaced by the Olympus E-PL3, while the MX-1 does not have a direct successor. Further information on the features and operation of the E-PL2 and MX-1 can be found, respectively, in the Olympus E-PL2 Manual (free pdf) or the online Pentax MX-1 Manual.

Review summary

So what is the bottom line? Is the Olympus E-PL2 better than the Pentax MX-1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Olympus PEN E-PL2:

• Better image quality: Scores markedly higher (6 points) in the DXO overall assessment.
• Better low-light sensitivity: Requires less light for good images (1.5 stops ISO advantage).
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Faster burst: Shoots at higher frequency (3 vs 1 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been available for much longer (launched in January 2011).

Reasons to prefer the Pentax MX-1:

• More dynamic range: Captures a broader range of light and dark details (1.1 EV of extra DR).
• Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
• More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Ready to shoot: Has an integrated lens, whereas the E-PL2 necessitates an extra lens.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 2 years of technical progress since the E-PL2 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the MX-1 comes out slightly ahead of the E-PL2 (8 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL2 and the Pentax MX-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-PL2 or the MX-1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
2.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	US$ 499	ebay.com
3.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
6.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
7.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
8.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
9.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
10.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
11.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
12.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
13.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
14.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
15.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	US$ 549	ebay.com
16.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
