OM System OM-3 vs OM-5

The OM System OM-3 and the OM System OM-5 are two enthusiast cameras that were officially introduced, respectively, in February 2025 and October 2022. Both the OM-3 and the OM-5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 20.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

OM System OM-3		OM System OM-5
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Micro Four Thirds lenses
20.2 MP – Four Thirds sensor		20.2 MP – Four Thirds sensor
4K/60p Video		4K/30p Video
ISO 80-25,600 (80 - 102,400)		ISO 200-25,600
Electronic viewfinder (2360k dots)		Electronic viewfinder (2360k dots)
3.0" LCD – 1640k dots		3.0" LCD – 1040k dots
Swivel touchscreen		Swivel touchscreen
6 shutter flaps per second		10 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
590 shots per battery charge		310 shots per battery charge
139 x 89 x 46 mm, 496 g		125 x 85 x 50 mm, 414 g

Check OM-3 price at
amazon.com
Check OM-5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the OM System OM-3 and the OM System OM-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the OM System OM-3 and the OM System OM-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the OM System OM-5 is notably smaller (14 percent) than the OM System OM-3. Moreover, the OM-5 is markedly lighter (17 percent) than the OM-3. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the OM-3 gets 590 shots out of its OM System BLX-1 battery, while the OM-5 can take 310 images on a single charge of its OM System BLS-50 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		OM System OM-3	139 mm	89 mm	46 mm	496 g	590	Y	Feb 2025	US$ 1 999	amazon.com
2.		OM System OM-5	125 mm	85 mm	50 mm	414 g	310	Y	Oct 2022	US$ 1 199	amazon.com
3.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	US$ 1 999	ebay.com
4.		Olympus E-M1 III	134 mm	91 mm	69 mm	580 g	420	Y	Feb 2020	US$ 1 799	ebay.com
5.		Olympus E-M5 III	125 mm	85 mm	50 mm	414 g	310	Y	Oct 2019	US$ 1 199	ebay.com
6.		OM System OM-1	135 mm	92 mm	73 mm	599 g	520	Y	Feb 2022	US$ 2 199	ebay.com
7.		OM System OM-1 II	135 mm	92 mm	73 mm	599 g	500	Y	Jan 2024	US$ 2 399	amazon.com
8.		OM System OM-5 II	125 mm	85 mm	50 mm	414 g	310	Y	Jun 2025	US$ 1 199	amazon.com
9.		Panasonic G9	137 mm	97 mm	92 mm	658 g	400	Y	Nov 2017	US$ 1 699	ebay.com
10.		Panasonic G95	130 mm	94 mm	77 mm	536 g	290	Y	Apr 2019	US$ 999	ebay.com
11.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
12.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	US$ 1 199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The OM-5 was launched at a markedly lower price (by 40 percent) than the OM-3, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

In terms of chip-set technology, the OM-3 uses a more advanced image processing engine (TruePic X) than the OM-5 (TruePic IX), with benefits for noise reduction, color accuracy, and processing speed.

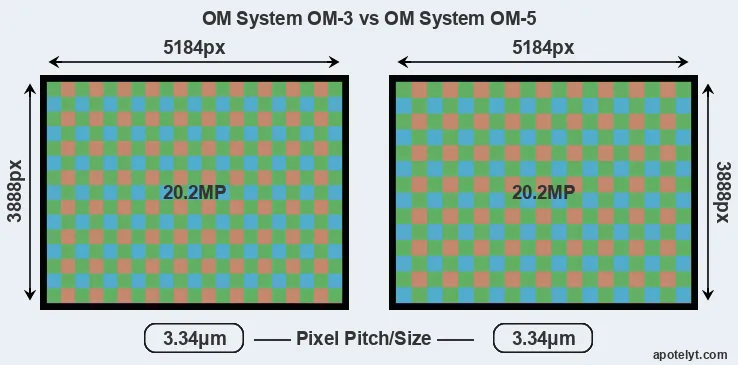

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 20.2 megapixels. This similarity in sensor specs implies that both the OM-3 and the OM-5 have the same pixel density, as well as the same pixel size. It should, however, be noted that the OM-3 is much more recent (by 2 years and 3 months) than the OM-5, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

Both cameras have the capacity to capture high quality composite images by combining multiple shots after shifting the sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The OM System OM-3 has a native sensitivity range from ISO 80 to ISO 25600, which can be extended to ISO 80-102400. The corresponding ISO settings for the OM System OM-5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.

In terms of underlying technology, the OM-3 is build around a Stacked BSI-CMOS sensor, while the OM-5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		OM System OM-3	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.7	1852	78
2.		OM System OM-5	Four Thirds	20.2	5184	3888	4K/30p	23.4	13.4	1622	78
3.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
4.		Olympus E-M1 III	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.1	1356	76
5.		Olympus E-M5 III	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.1	1324	76
6.		OM System OM-1	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.4	1553	77
7.		OM System OM-1 II	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.6	1749	78
8.		OM System OM-5 II	Four Thirds	20.2	5184	3888	4K/30p	23.4	13.7	1889	78
9.		Panasonic G9	Four Thirds	20.2	5184	3888	4K/60p	23.1	12.8	1138	74
10.		Panasonic G95	Four Thirds	20.2	5184	3888	4K/30p	23.2	13.0	1273	75
11.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
12.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the OM-3 provides a higher frame rate than the OM-5. It can shoot video footage at 4K/60p, while the OM-5 is limited to 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The OM-3 and the OM-5 are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The following table reports on some other key feature differences and similarities of the OM System OM-3, the OM System OM-5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		OM System OM-3	2360	n	3.0 / 1640	swivel	Y	1/8000s	6.0/s	n	Y
2.		OM System OM-5	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
3.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
4.		Olympus E-M1 III	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
5.		Olympus E-M5 III	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
6.		OM System OM-1	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
7.		OM System OM-1 II	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
8.		OM System OM-5 II	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
9.		Panasonic G9	3680	Y	3.0 / 1040	swivel	Y	1/8000s	20.0/s	n	Y
10.		Panasonic G95	2360	n	3.0 / 1240	swivel	Y	1/4000s	9.0/s	Y	Y
11.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
12.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The OM System OM-3 and the OM System OM-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the OM-3 and the OM-5 write their files to SDXC cards. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the OM System OM-3 and OM System OM-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		OM System OM-3	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
2.		OM System OM-5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
3.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
4.		Olympus E-M1 III	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
5.		Olympus E-M5 III	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		OM System OM-1	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
7.		OM System OM-1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
8.		OM System OM-5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Panasonic G9	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
10.		Panasonic G95	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
11.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
12.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-

It is notable that the OM-3 has a headphone jack, which is not present on the OM-5 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Both the OM-3 and the OM-5 are recent models that are part of the current product line-up. The OM-5 replaced the earlier Olympus E-M5 III, while the OM-3 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official OM System website.

Review summary

So what is the bottom line? Is the OM System OM-3 better than the OM System OM-5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the OM System OM-3:

• Better jpgs: Has a more modern image processing engine (TruePic X vs TruePic IX).
• Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.69x vs 0.68x).
• More detailed LCD: Has a higher resolution rear screen (1640k vs 1040k dots).
• Longer lasting: Can take more shots (590 versus 310) on a single battery charge.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• More modern: Reflects 2 years and 3 months of technical progress since the OM-5 launch.

Reasons to prefer the OM System OM-5:

• Faster burst: Shoots at higher frequency (10 vs 6 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (125x85mm vs 139x89mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 82g or 17 percent) and is thus easier to take along.
• More affordable: Was introduced into a lower priced category (40 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in October 2022).

If the count of individual advantages (bullet points above) is taken as a guide, the OM-3 emerges as the winner of the contest (8 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the OM System OM-3 and the OM System OM-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the OM-3 and the OM-5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		OM System OM-3	..	..	..	86/100	..	..	Feb 2025	US$ 1 999	amazon.com
2.		OM System OM-5	5/5	..	4.5/5	83/100	5/5	4.5/5	Oct 2022	US$ 1 199	amazon.com
3.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	US$ 1 999	ebay.com
4.		Olympus E-M1 III	5/5	..	5/5	83/100	4.5/5	4/5	Feb 2020	US$ 1 799	ebay.com
5.		Olympus E-M5 III	5/5	+	5/5	82/100	4.5/5	4.5/5	Oct 2019	US$ 1 199	ebay.com
6.		OM System OM-1	5/5	..	..	87/100	5/5	4.5/5	Feb 2022	US$ 2 199	ebay.com
7.		OM System OM-1 II	..	..	..	..	..	..	Jan 2024	US$ 2 399	amazon.com
8.		OM System OM-5 II	..	..	..	..	..	..	Jun 2025	US$ 1 199	amazon.com
9.		Panasonic G9	..	+ +	5/5	85/100	5/5	5/5	Nov 2017	US$ 1 699	ebay.com
10.		Panasonic G95	4.5/5	+	4.5/5	83/100	4.5/5	4.5/5	Apr 2019	US$ 999	ebay.com
11.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
12.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	US$ 1 199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
