Pentax K-5 II vs KP

The Pentax K-5 II and the Pentax KP are two enthusiast cameras that were revealed to the public, respectively, in September 2012 and January 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The K-5 II has a resolution of 16.1 megapixels, whereas the KP provides 24.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax K-5 II		Pentax KP
Digital single lens reflex		Digital single lens reflex
Pentax K mount lenses		Pentax K mount lenses
16.1 MP – APS-C sensor		24.1 MP – APS-C sensor
1080/25p Video		1080/60i Video
ISO 100-12,800 (80 - 51,200)		ISO 100-819,200
Optical viewfinder		Optical viewfinder
3.0" LCD – 921k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
7 shutter flaps per second		7 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
740 shots per battery charge		390 shots per battery charge
131 x 97 x 73 mm, 760 g		132 x 101 x 76 mm, 703 g

Check K-5 II offers at
ebay.com
Check KP offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax K-5 II and the Pentax KP? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

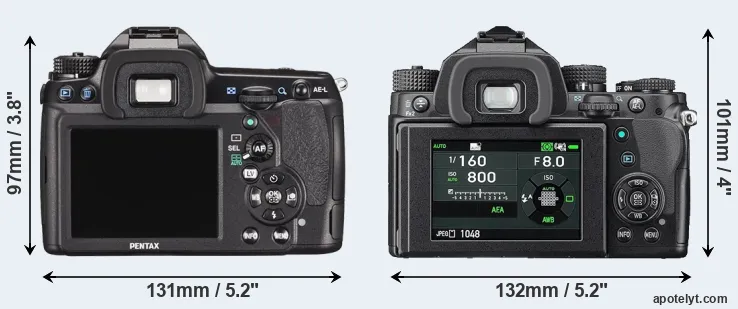

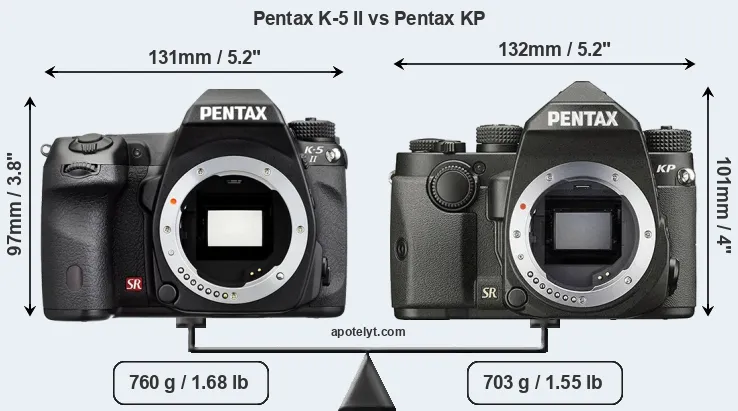

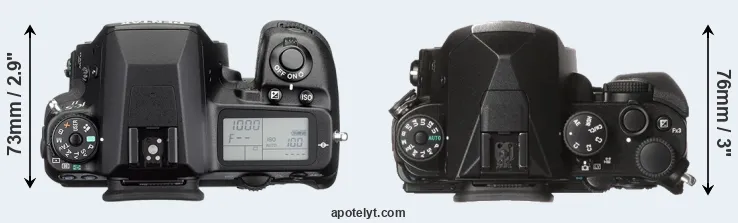

The physical size and weight of the Pentax K-5 II and the Pentax KP are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The KP can be obtained in two different colors (black, silver), while the K-5 II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax KP is somewhat larger (5 percent) than the Pentax K-5 II. However, the KP is markedly lighter (8 percent) than the K-5 II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the K-5 II gets 740 shots out of its Pentax D-LI90 battery, while the KP can take 390 images on a single charge of its Pentax D-LI109 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	US$ 1 099	ebay.com
2.		Pentax KP	132 mm	101 mm	76 mm	703 g	390	Y	Jan 2017	US$ 1 099	ebay.com
3.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	US$ 1 199	ebay.com
4.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	US$ 1 299	ebay.com
5.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
6.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	US$ 1 099	ebay.com
7.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
8.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	US$ 849	ebay.com
9.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	US$ 599	ebay.com
10.		Pentax K-70	126 mm	93 mm	74 mm	688 g	410	Y	Jun 2016	US$ 649	ebay.com
11.		Pentax K-500	130 mm	97 mm	71 mm	646 g	710	n	Jun 2013	US$ 549	ebay.com
12.		Pentax K-S2	123 mm	91 mm	73 mm	678 g	410	Y	Feb 2015	US$ 749	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the KP is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the KP uses a more advanced image processing engine (PRIME IV) than the K-5 II (PRIME II), with benefits for noise reduction, color accuracy, and processing speed.

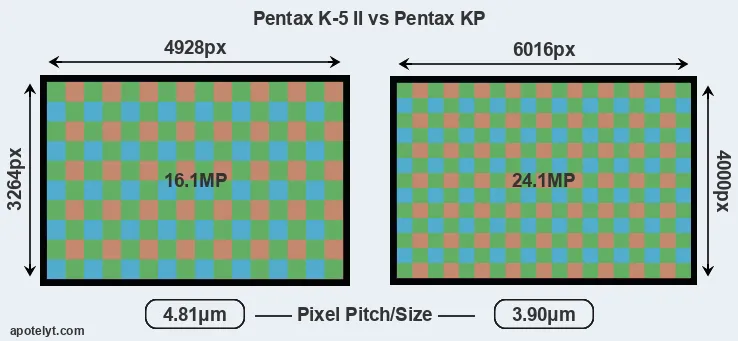

Despite having a slightly smaller sensor, the KP offers a higher resolution of 24.1 megapixels, compared with 16.1 MP of the K-5 II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.90μm versus 4.81μm for the K-5 II). However, it should be noted that the KP is much more recent (by 4 years and 4 months) than the K-5 II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the KP has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Pentax KP implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the KP for good quality output (200 dots per inch) amounts to 30.1 x 20 inches or 76.4 x 50.8 cm, for very good quality (250 dpi) 24.1 x 16 inches or 61.1 x 40.6 cm, and for excellent quality (300 dpi) 20.1 x 13.3 inches or 50.9 x 33.9 cm. The corresponding values for the Pentax K-5 II are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.

Unlike the K-5 II, the KP has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Pentax K-5 II has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 80-51200. The corresponding ISO settings for the Pentax KP are ISO 100 to ISO 819200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
2.		Pentax KP	APS-C	24.1	6016	4000	1080/60i	23.9	13.2	1699	81
3.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
4.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
5.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
6.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
7.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
8.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
9.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
10.		Pentax K-70	APS-C	24.0	6000	4000	1080/60i	23.8	13.1	1639	80
11.		Pentax K-500	APS-C	16.1	4928	3264	1080/30p	23.7	13.1	1087	79
12.		Pentax K-S2	APS-C	20.0	5472	3648	1080/30p	23.6	12.9	1514	79
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the KP provides a faster frame rate than the K-5 II. It can shoot movie footage at 1080/60i, while the K-5 II is limited to 1080/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The K-5 II and the KP are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the KP has a higher magnification than the one of the K-5 II (0.63x vs 0.61x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Pentax K-5 II and Pentax KP in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
2.		Pentax KP	optical	n	3.0 / 921	tilting	n	1/6000s	7.0/s	Y	Y
3.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
4.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
5.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
6.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
7.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
8.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
9.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
10.		Pentax K-70	optical	n	3.0 / 921	swivel	n	1/6000s	6.0/s	Y	Y
11.		Pentax K-500	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
12.		Pentax K-S2	optical	n	3.0 / 921	swivel	n	1/6000s	5.4/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the K-5 II, but is missing on the KP is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the KP is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Pentax K-5 II and the Pentax KP both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the K-5 II and the KP write their files to SDXC cards. The KP supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the K-5 II cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax K-5 II and Pentax KP and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Pentax KP	Y	stereo / mono	Y	-	-	2.0	Y	-	-
3.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
4.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
6.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
7.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
9.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
10.		Pentax K-70	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
11.		Pentax K-500	Y	mono / mono	-	-	-	2.0	-	-	-
12.		Pentax K-S2	Y	mono / mono	Y	-	micro	2.0	Y	Y	-

It is notable that the KP offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the K-5 II does not provide wifi capability.

Studio photographers will appreciate that the Pentax K-5 II (unlike the KP) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the K-5 II and the KP have been discontinued, but can regularly be found used on ebay. The K-5 II was replaced by the Pentax K-3, while the KP does not have a direct successor. Further information on the features and operation of the K-5 II and KP can be found, respectively, in the Pentax K-5 II Manual (free pdf) or the online Pentax KP Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Pentax K-5 II or the Pentax KP – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Pentax K-5 II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/6000s) to freeze action.
• Longer lasting: Can take more shots (740 versus 390) on a single battery charge.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in September 2012).

Reasons to prefer the Pentax KP:

• More detail: Has more megapixels (24.1 vs 16.1MP), which boosts linear resolution by 22%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better jpgs: Has a more modern image processing engine (PRIME IV vs PRIME II).
• Better video: Provides higher movie framerates (1080/60i versus 1080/25p).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.61x).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 4 years and 4 months of technical progress since the K-5 II launch.

If the count of relative strengths (bullet points above) is taken as a measure, the KP is the clear winner of the contest (11 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax K-5 II and the Pentax KP place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the K-5 II or the KP perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	US$ 1 099	ebay.com
2.		Pentax KP	4/5	..	3/5	82/100	5/5	4.5/5	Jan 2017	US$ 1 099	ebay.com
3.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	US$ 1 199	ebay.com
4.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	US$ 1 299	ebay.com
5.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
6.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	US$ 1 099	ebay.com
7.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
8.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	US$ 849	ebay.com
9.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	US$ 599	ebay.com
10.		Pentax K-70	4.5/5	..	4/5	79/100	4.5/5	4.5/5	Jun 2016	US$ 649	ebay.com
11.		Pentax K-500	..	..	..	..	4.5/5	4.5/5	Jun 2013	US$ 549	ebay.com
12.		Pentax K-S2	4.5/5	..	..	..	5/5	4.5/5	Feb 2015	US$ 749	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
