Canon 77D vs SX70

The Canon EOS 77D and the Canon PowerShot SX70 HS are two digital cameras that were announced, respectively, in February 2017 and September 2018. The 77D is a DSLR, while the SX70 is a fixed lens compact. The cameras are based on an APS-C (77D) and a 1/2.3-inch (SX70) sensor. The 77D has a resolution of 24 megapixels, whereas the SX70 provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 77D		Canon SX70
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		21-1365mm f/3.4-6.5
24 MP – APS-C sensor		20.2 MP – 1/2.3" sensor
1080/60p Video		4K/30p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-3,200
Optical viewfinder		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 922k dots
Swivel touchscreen		Swivel screen (not touch-sensitive)
6 shutter flaps per second		10 shutter flaps per second
600 shots per battery charge		325 shots per battery charge
131 x 100 x 76 mm, 540 g		127 x 91 x 117 mm, 608 g

Check 77D offers at
ebay.com
Check SX70 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 77D and the Canon PowerShot SX70 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

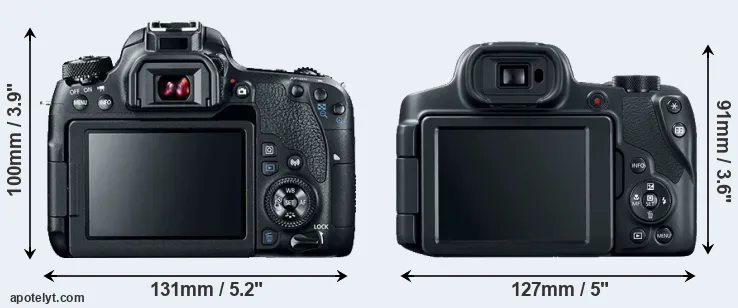

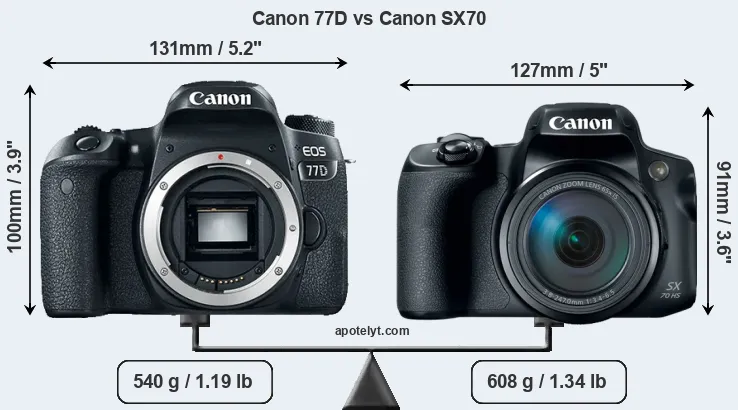

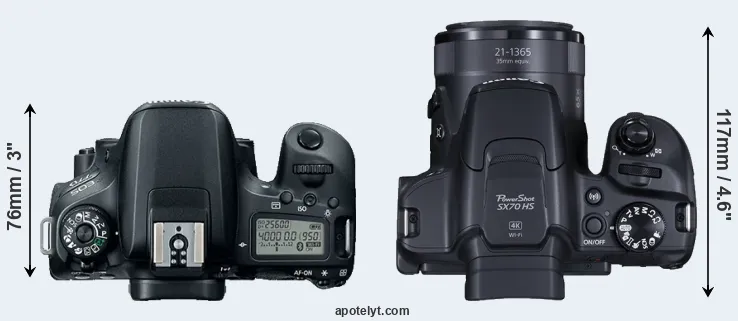

The side-by-side display below illustrates the physical size and weight of the Canon 77D and the Canon SX70. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX70 is notably smaller (12 percent) than the Canon 77D. In this context, it is worth noting that neither the 77D nor the SX70 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX70 has a lens built in, whereas the 77D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 77D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 77D gets 600 shots out of its Canon LP-E17 battery, while the SX70 can take 325 images on a single charge of its Canon LP-E12 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
2.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	US$ 549	amazon.com
3.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
4.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
5.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
6.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
7.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
8.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
9.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
10.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
11.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
12.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
13.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
14.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
15.		Canon T7i	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	US$ 749	ebay.com
16.		Canon T8i	131 mm	103 mm	76 mm	515 g	800	n	Feb 2020	US$ 749	ebay.com
17.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX70 was launched at a lower price than the 77D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

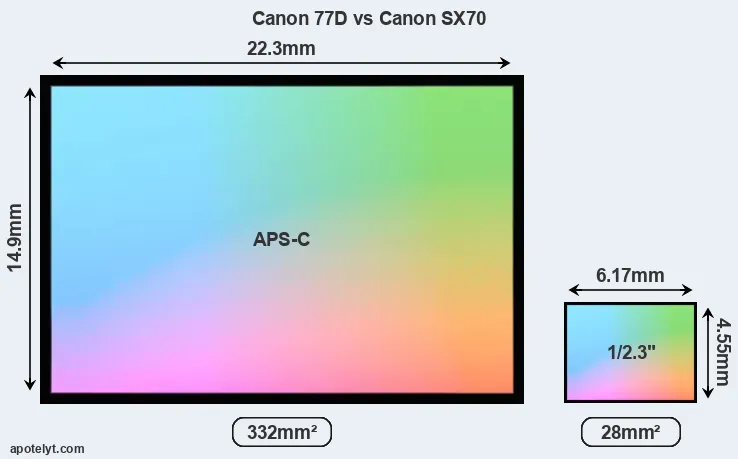

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 77D features an APS-C sensor and the Canon SX70 a 1/2.3-inch sensor. The sensor area in the SX70 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 77D has a native 3:2 aspect ratio, while the one in the SX70 offers a 4:3 aspect.

Technology-wise, the SX70 uses a more advanced image processing engine (DIGIC 8) than the 77D (DIGIC 7), with benefits for noise reduction, color accuracy, and processing speed.

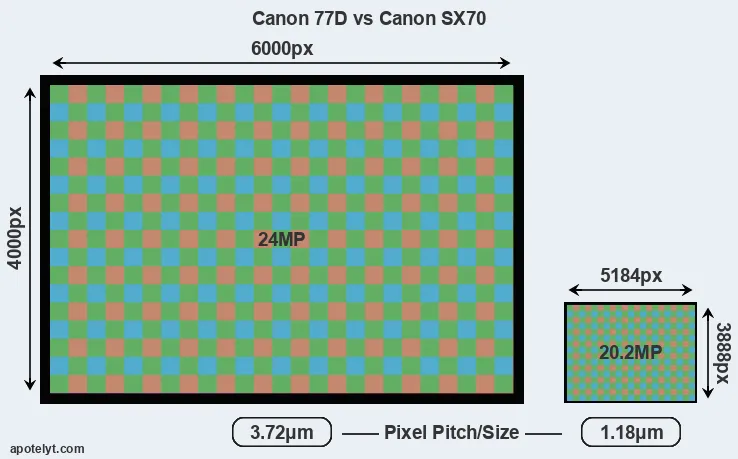

With 24MP, the 77D offers a higher resolution than the SX70 (20.2MP), but the 77D nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.18μm for the SX70) due to its larger sensor. However, the SX70 is a somewhat more recent model (by 1 year and 7 months) than the 77D, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX70 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 77D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 77D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX70 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The 77D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 77D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon PowerShot SX70 HS are ISO 100 to ISO 3200 (no boost).

In terms of underlying technology, the 77D is build around a CMOS sensor, while the SX70 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
2.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
3.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
4.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
5.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
6.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
7.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
8.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
9.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
10.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
11.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
12.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
13.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
14.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
15.		Canon T7i	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
16.		Canon T8i	APS-C	24.0	6000	4000	4K/24p	24.0	13.5	1873	83
17.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SX70 provides a better video resolution than the 77D. It can shoot movie footage at 4K/30p, while the 77D is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the SX70 has an electronic viewfinder (2360k dots), while the 77D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon 77D and Canon SX70 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
2.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
3.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
4.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
5.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
8.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
9.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
10.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
14.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
15.		Canon T7i	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
16.		Canon T8i	optical	n	3.0 / 1040	swivel	Y	1/4000s	7.5/s	Y	n
17.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 77D, but is missing on the SX70 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 77D and the SX70 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and Canon PowerShot SX70 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
3.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
13.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
14.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
15.		Canon T7i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
16.		Canon T8i	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
17.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the 77D has a hotshoe, while the SX70 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

The SX70 is a recent model that features in the current product line-up of Canon. In contrast, the 77D has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the 77D from Canon. Further information on the features and operation of the 77D and SX70 can be found, respectively, in the Canon 77D Manual (free pdf) or the online Canon SX70 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon 77D or the Canon SX70 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon EOS 77D:

• More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (600 versus 325) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More heavily discounted: Has been on the market for longer (launched in February 2017).

Advantages of the Canon PowerShot SX70 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 7).
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More framing info: Has an electronic viewfinder that displays shooting data.
• Faster burst: Shoots at higher frequency (10 vs 6 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with an integrated lens, while the 77D requires a separate lens.
• More compact: Is smaller (127x91mm vs 131x100mm) and will fit more readily into a bag.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (1 year and 7 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the 77D is the clear winner of the match-up (18 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 77D and the Canon SX70 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 77D and the SX70 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
2.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	US$ 549	amazon.com
3.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
4.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
5.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
6.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
7.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
8.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
9.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
10.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
11.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
12.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
13.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
14.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
15.		Canon T7i	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	US$ 749	ebay.com
16.		Canon T8i	4.5/5	+	3/5	80/100	4/5	3.5/5	Feb 2020	US$ 749	ebay.com
17.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check 77D offers at
ebay.com
Check SX70 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check 77D offers at
ebay.com
Check SX70 price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
