Canon M10 vs SX1

The Canon EOS M10 and the Canon PowerShot SX1 IS are two digital cameras that were announced, respectively, in October 2015 and September 2008. The M10 is a mirrorless interchangeable lens camera, while the SX1 is a fixed lens compact. The cameras are based on an APS-C (M10) and a 1/2.3-inch (SX1) sensor. The M10 has a resolution of 17.9 megapixels, whereas the SX1 provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M10		Canon SX1
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		28-560mm f/2.8-5.7
17.9 MP – APS-C sensor		10 MP – 1/2.3" sensor
1080/30p Video		1080/30p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-1,600 (100 - 3,200)
No viewfinder, LCD framing		Electronic viewfinder (202k dots)
3.0" LCD – 1040k dots		2.8" LCD – 230k dots
Tilting touchscreen		Swivel screen (not touch-sensitive)
4.6 shutter flaps per second		4 shutter flaps per second
108 x 67 x 35 mm, 301 g		128 x 88 x 88 mm, 615 g

Check M10 offers at
ebay.com
Check SX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M10 and the Canon PowerShot SX1 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

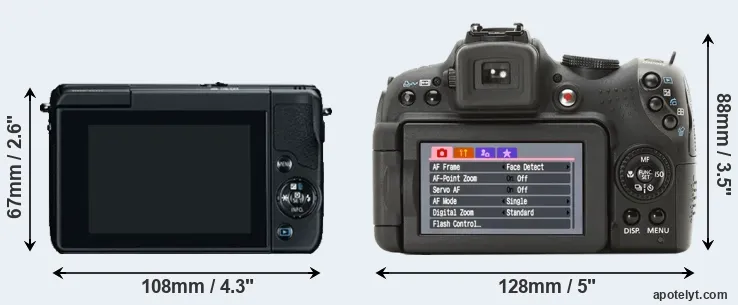

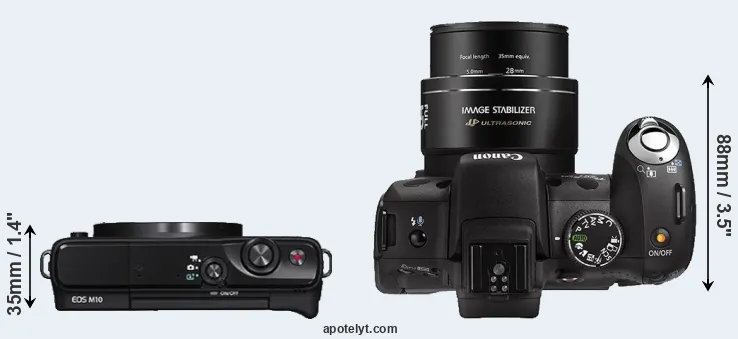

The side-by-side display below illustrates the physical size and weight of the Canon M10 and the Canon SX1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The M10 can be obtained in two different colors (black, white), while the SX1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX1 is considerably larger (56 percent) than the Canon M10. In this context, it is worth noting that neither the M10 nor the SX1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX1 has a lens built in, whereas the M10 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
2.		Canon SX1	128 mm	88 mm	88 mm	615 g	..	n	Sep 2008	US$ 599	ebay.com
3.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
5.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
6.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
7.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
8.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
9.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
10.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
11.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
12.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
13.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
14.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
15.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
16.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
17.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

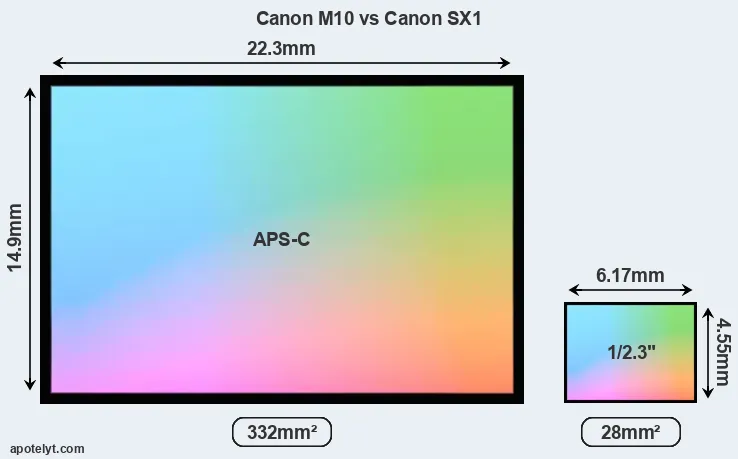

Of the two cameras under consideration, the Canon M10 features an APS-C sensor and the Canon SX1 a 1/2.3-inch sensor. The sensor area in the SX1 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the M10 has a native 3:2 aspect ratio, while the one in the SX1 offers a 4:3 aspect.

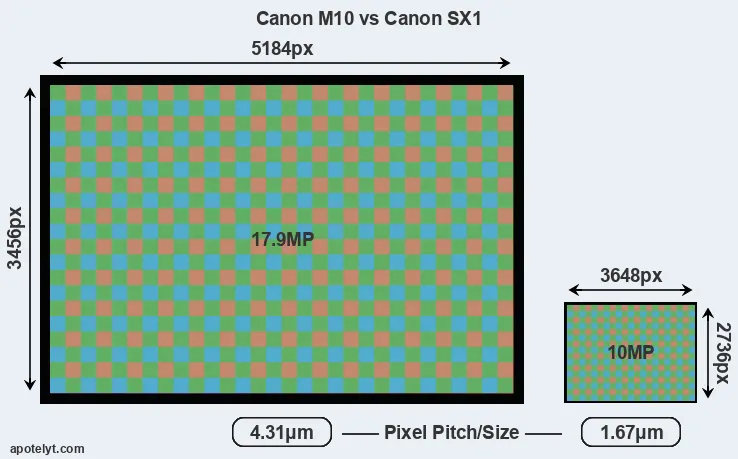

With 17.9MP, the M10 offers a higher resolution than the SX1 (10MP), but the M10 nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 1.67μm for the SX1) due to its larger sensor. Moreover, the M10 is a much more recent model (by 7 years) than the SX1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Canon SX1 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The M10 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M10 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon PowerShot SX1 IS are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
2.		Canon SX1	1/2.3	10.0	3648	2736	1080/30p	19.0	10.3	144	35
3.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
6.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
7.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
8.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
9.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
10.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
11.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
12.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
13.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
14.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
15.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
16.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
17.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the SX1 has an electronic viewfinder (202k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M10 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M10, the Canon SX1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
2.		Canon SX1	202	n	2.8 / 230	swivel	n	1/3200s	4.0/s	Y	Y
3.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
6.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
7.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
8.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
9.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
10.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
11.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
12.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
13.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
14.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
15.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
16.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
17.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M10 has a touchscreen, while the SX1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The M10 writes its imaging data to SDXC cards, while the SX1 uses SDHC cards. The M10 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M10 and Canon PowerShot SX1 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Canon SX1	Y	stereo / mono	-	-	YES	2.0	-	-	-
3.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
10.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
11.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
13.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
14.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
16.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the M10 offers wifi support, while the SX1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the M10 and the SX1 have been discontinued, but can regularly be found used on ebay. The M10 was replaced by the Canon M100, while the SX1 does not have a direct successor. Further information on the features and operation of the M10 and SX1 can be found, respectively, in the Canon M10 Manual (free pdf) or the online Canon SX1 Manual.

Review summary

So what is the bottom line? Is the Canon M10 better than the Canon SX1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS M10:

• More detail: Offers more megapixels (17.9 vs 10MP) with a 37% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Faster burst: Shoots at higher frequency (4.6 vs 4 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More compact: Is smaller (108x67mm vs 128x88mm) and thus needs less room in the bag.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 7 years of technical progress since the SX1 launch.

Reasons to prefer the Canon PowerShot SX1 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Ready to shoot: Has an integrated lens, whereas the M10 necessitates an extra lens.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in September 2008).

If the number of relative strengths (bullet points above) is taken as a guide, the M10 is the clear winner of the match-up (19 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M10 and the Canon SX1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the M10 or the SX1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
2.		Canon SX1	..	+ +	..	+	..	3.5/5	Sep 2008	US$ 599	ebay.com
3.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
5.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
6.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
7.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
8.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
9.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
10.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
11.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
12.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
13.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
14.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
15.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
16.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
17.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
