Canon M100 vs SX620

The Canon EOS M100 and the Canon PowerShot SX620 HS are two digital cameras that were revealed to the public, respectively, in August 2017 and May 2016. The M100 is a mirrorless interchangeable lens camera, while the SX620 is a fixed lens compact. The cameras are based on an APS-C (M100) and a 1/2.3-inch (SX620) sensor. The M100 has a resolution of 24 megapixels, whereas the SX620 provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M100		Canon SX620
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		25-625mm f/3.2-6.6
24 MP – APS-C sensor		20.2 MP – 1/2.3" sensor
1080/60p Video		1080/30p Video
ISO 100-25,600		ISO 80-3,200
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 922k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
6.1 shutter flaps per second		2.5 shutter flaps per second
295 shots per battery charge		295 shots per battery charge
108 x 67 x 35 mm, 302 g		97 x 57 x 28 mm, 182 g

Check M100 offers at
ebay.com
Check SX620 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M100 and the Canon PowerShot SX620 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

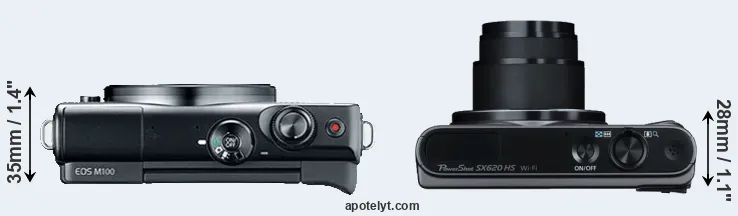

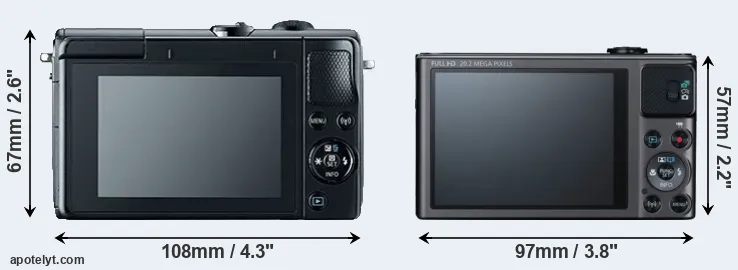

Body comparison

The physical size and weight of the Canon M100 and the Canon SX620 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The M100 can be obtained in two different colors (black, white), while the SX620 is available in three color-versions (black, silver, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX620 is notably smaller (24 percent) than the Canon M100. In this context, it is worth noting that neither the M100 nor the SX620 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX620 has a lens built in, whereas the M100 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	EUR 479	ebay.com
2.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	EUR 269	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	EUR 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	EUR 599	ebay.com
5.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	EUR 499	amazon.com
6.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	EUR 499	ebay.com
7.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	EUR 499	ebay.com
8.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	EUR 599	ebay.com
9.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	EUR 749	ebay.com
10.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	EUR 1 129	ebay.com
11.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	EUR 799	ebay.com
12.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	EUR 499	ebay.com
13.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	EUR 539	ebay.com
14.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	EUR 279	ebay.com
15.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	EUR 299	ebay.com
16.		Canon SX610	105 mm	61 mm	27 mm	191 g	270	n	Jan 2015	EUR 249	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX620 was launched at a lower price than the M100, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

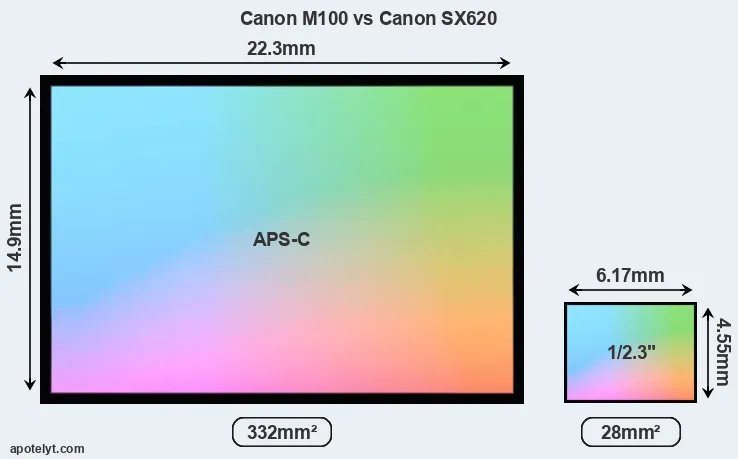

Of the two cameras under consideration, the Canon M100 features an APS-C sensor and the Canon SX620 a 1/2.3-inch sensor. The sensor area in the SX620 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the M100 has a native 3:2 aspect ratio, while the one in the SX620 offers a 4:3 aspect.

In terms of chip-set technology, the M100 uses a more advanced image processing engine (DIGIC 7) than the SX620 (DIGIC 4+), with benefits for noise reduction, color accuracy, and processing speed.

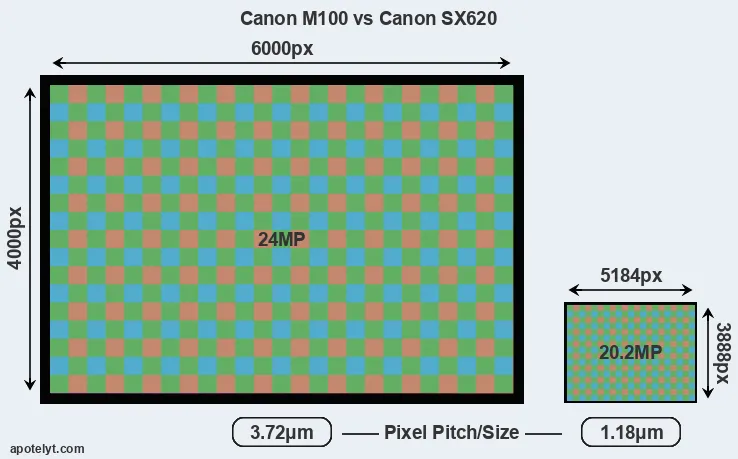

With 24MP, the M100 offers a higher resolution than the SX620 (20.2MP), but the M100 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.18μm for the SX620) due to its larger sensor. Moreover, the M100 is a somewhat more recent model (by 1 year and 3 months) than the SX620, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX620 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX620 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The M100 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M100 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Canon PowerShot SX620 HS are ISO 80 to ISO 3200 (no boost).

In terms of underlying technology, the M100 is build around a CMOS sensor, while the SX620 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
2.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
6.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
7.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
8.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
9.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
10.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
11.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
12.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
13.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
14.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
15.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
16.		Canon SX610	1/2.3	20.2	5184	3888	1080/30p	20.2	11.6	712	47
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the M100 provides a higher frame rate than the SX620. It can shoot video footage at 1080/60p, while the SX620 is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The M100 and the SX620 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Canon M100 and Canon SX620 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
2.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
7.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
8.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
9.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
10.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
11.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
12.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
13.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
14.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
15.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
16.		Canon SX610	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M100 has a touchscreen, while the SX620 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the M100 and the SX620 write their files to SDXC cards. The M100 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX620 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M100 and Canon PowerShot SX620 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
15.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
16.		Canon SX610	-	- / -	-	-	micro	2.0	Y	Y	-

Both the M100 and the SX620 have been discontinued, but can regularly be found used on ebay. The M100 was replaced by the Canon M200, while the SX620 does not have a direct successor. Further information on the features and operation of the M100 and SX620 can be found, respectively, in the Canon M100 Manual (free pdf) or the online Canon SX620 Manual.

Review summary

So what conclusions can be drawn? Is the Canon M100 better than the Canon SX620 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS M100:

• More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 4+).
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (6.1 vs 2.5 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Is somewhat more recent (announced 1 year and 3 months after the SX620).

Advantages of the Canon PowerShot SX620 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Has an integrated lens, whereas the M100 necessitates an extra lens.
• More compact: Is smaller (97x57mm vs 108x67mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the M100).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been on the market for longer (launched in May 2016).

If the count of individual advantages (bullet points above) is taken as a guide, the M100 is the clear winner of the match-up (19 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M100 and the Canon SX620 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M100 or the SX620. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	EUR 479	ebay.com
2.		Canon SX620	..	..	..	..	..	4/5	May 2016	EUR 269	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	EUR 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	EUR 599	ebay.com
5.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	EUR 499	amazon.com
6.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	EUR 499	ebay.com
7.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	EUR 499	ebay.com
8.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	EUR 599	ebay.com
9.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	EUR 749	ebay.com
10.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	EUR 1 129	ebay.com
11.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	EUR 799	ebay.com
12.		Canon M10	..	..	..	..	..	4/5	Oct 2015	EUR 499	ebay.com
13.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	EUR 539	ebay.com
14.		Canon SX410	..	o	..	..	..	..	Feb 2015	EUR 279	ebay.com
15.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	EUR 299	ebay.com
16.		Canon SX610	..	..	..	..	4/5	4/5	Jan 2015	EUR 249	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
