Canon M100 vs Pentax WG-1000

The Canon EOS M100 and the Pentax WG-1000 are two digital cameras that were revealed to the public, respectively, in August 2017 and June 2024. The M100 is a mirrorless interchangeable lens camera, while the WG-1000 is a fixed lens compact. The cameras are based on an APS-C (M100) and a 1/2.3-inch (WG-1000) sensor. The Canon has a resolution of 24 megapixels, whereas the Pentax provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M100		Pentax WG-1000
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		27-108mm f/3.0-6.6
24 MP – APS-C sensor		15.9 MP – 1/2.3" sensor
1080/60p Video		1080/30p Video
ISO 100-25,600		ISO 100-3,200
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 1040k dots		2.7" LCD – 230k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
6.1 shutter flaps per second		8 shutter flaps per second
not weather sealed		Waterproof body (15m)
295 shots per battery charge		300 shots per battery charge
108 x 67 x 35 mm, 302 g		116 x 69 x 51 mm, 220 g

Check M100 offers at
ebay.com
Check WG-1000 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M100 and the Pentax WG-1000? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

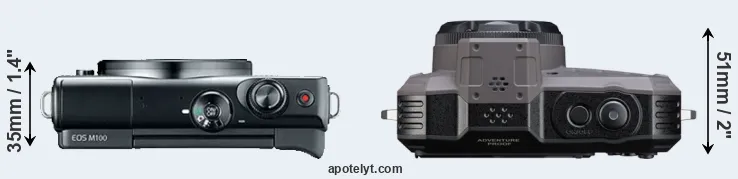

The side-by-side display below illustrates the physical size and weight of the Canon M100 and the Pentax WG-1000. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The M100 can be obtained in two different colors (black, white), while the WG-1000 is only available in grey.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax WG-1000 is notably larger (11 percent) than the Canon M100. It is noteworthy in this context that the WG-1000 is splash and dust-proof, while the M100 does not feature any corresponding weather-sealing. More than that, the WG-1000 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the WG-1000 has a lens built in, whereas the M100 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
2.		Pentax WG-1000	116 mm	69 mm	51 mm	220 g	300	Y	Jun 2024	US$ 229	amazon.com
3.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
4.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
5.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
6.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
7.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
8.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	US$ 499	ebay.com
9.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
10.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	US$ 549	ebay.com
11.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
12.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
13.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
14.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
15.		Pentax WG-8	118 mm	66 mm	33 mm	242 g	340	Y	Jun 2024	US$ 399	amazon.com
16.		Pentax WG-90	123 mm	62 mm	30 mm	194 g	300	Y	Nov 2023	US$ 279	amazon.com
17.		Ricoh WG-60	123 mm	62 mm	30 mm	193 g	300	Y	Oct 2018	US$ 279	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The WG-1000 was launched at a lower price than the M100, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

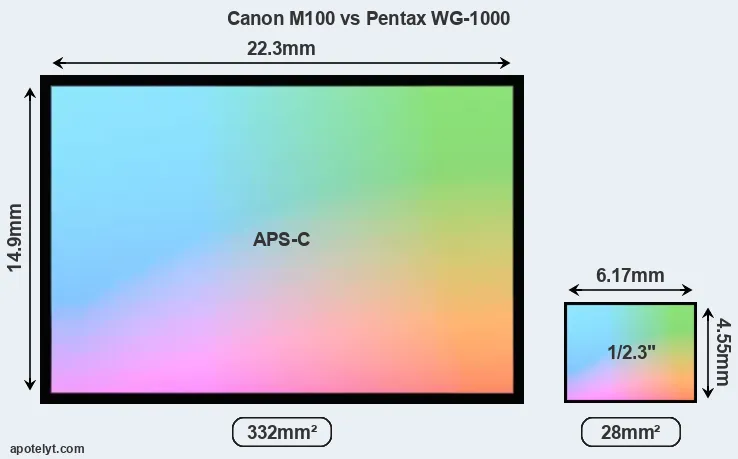

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M100 features an APS-C sensor and the Pentax WG-1000 a 1/2.3-inch sensor. The sensor area in the WG-1000 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the M100 has a native 3:2 aspect ratio, while the one in the WG-1000 offers a 4:3 aspect.

With 24MP, the M100 offers a higher resolution than the WG-1000 (15.9MP), but the M100 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.33μm for the WG-1000) due to its larger sensor. However, the WG-1000 is a much more recent model (by 6 years and 9 months) than the M100, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the WG-1000 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Pentax WG-1000 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The M100 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M100 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Pentax WG-1000 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
2.		Pentax WG-1000	1/2.3	15.9	4608	3456	1080/30p	20.9	12.8	1626	54
3.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
4.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
5.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
6.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
7.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
8.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
9.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
10.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
11.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
12.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
13.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
14.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
15.		Pentax WG-8	1/2.3	20.2	5184	3888	4K/30p	20.9	12.8	1626	54
16.		Pentax WG-90	1/2.3	15.9	4608	3456	1080/60p	20.9	12.8	1570	54
17.		Ricoh WG-60	1/2.3	15.9	4608	3456	1080/60p	20.6	12.2	1072	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the M100 provides a higher frame rate than the WG-1000. It can shoot video footage at 1080/60p, while the Pentax is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The M100 and the WG-1000 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Canon M100 and Pentax WG-1000 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
2.		Pentax WG-1000	none	n	2.7 / 230	fixed	n	1/2000s	8.0/s	Y	n
3.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
4.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
5.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
6.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
7.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
8.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
9.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
10.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
11.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
13.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
14.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
15.		Pentax WG-8	none	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
16.		Pentax WG-90	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
17.		Ricoh WG-60	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M100 has a touchscreen, while the WG-1000 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the M100 and the WG-1000 write their files to SDXC cards. The M100 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the WG-1000 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M100 and Pentax WG-1000 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Pentax WG-1000	-	mono / mono	-	-	-	2.0	-	-	-
3.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
5.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
9.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
11.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
13.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
14.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Pentax WG-8	-	mono / mono	-	-	-	3.0	-	-	-
16.		Pentax WG-90	-	mono / mono	-	-	micro	2.0	-	-	-
17.		Ricoh WG-60	-	mono / mono	-	-	micro	2.0	-	-	-

It is notable that the M100 offers wifi support, while the WG-1000 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The WG-1000 is a recent model that features in the current product line-up of Pentax. In contrast, the M100 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M100 was succeeded by the Canon M200. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.

Review summary

So what is the bottom line? Is the Canon M100 better than the Pentax WG-1000 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS M100:

• More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been available for much longer (launched in August 2017).

Arguments in favor of the Pentax WG-1000:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Faster burst: Shoots at higher frequency (8 vs 6.1 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has an integrated lens, whereas the M100 necessitates an extra lens.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the M100).
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 6 years and 9 months of technical progress since the M100 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the M100 is the clear winner of the match-up (20 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M100 and the Pentax WG-1000 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M100 and the WG-1000 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
2.		Pentax WG-1000	..	..	..	..	..	..	Jun 2024	US$ 229	amazon.com
3.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
4.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
5.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
6.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
7.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
8.		Canon M10	..	..	..	..	..	4/5	Oct 2015	US$ 499	ebay.com
9.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
10.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	US$ 549	ebay.com
11.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
12.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
13.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
14.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
15.		Pentax WG-8	..	..	..	..	..	..	Jun 2024	US$ 399	amazon.com
16.		Pentax WG-90	..	..	..	..	..	..	Nov 2023	US$ 279	amazon.com
17.		Ricoh WG-60	..	..	..	..	..	..	Oct 2018	US$ 279	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
