Canon R5 Mark II vs Fujifilm X-H2S

The Canon EOS R5 Mark II and the Fujifilm X-H2S are two enthusiast cameras that were announced, respectively, in July 2024 and May 2022. Both the R5 Mark II and the X-H2S are mirrorless interchangeable lens cameras that are based on a full frame (R5 Mark II) and an APS-C (X-H2S) sensor. The Canon has a resolution of 44.8 megapixels, whereas the Fujifilm provides 26 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R5 Mark II		Fujifilm X-H2S
Mirrorless system camera		Mirrorless system camera
Canon RF mount lenses		Fujifilm X mount lenses
44.8 MP – Full Frame sensor		26 MP – APS-C sensor
8k/60p Video		6.2k/30p Video
ISO 100-51,200 (50 - 102,400)		ISO 160-12,800 (80 - 51,200)
Electronic viewfinder (5760k dots)		Electronic viewfinder (5760k dots)
3.2" LCD – 2100k dots		3.0" LCD – 1620k dots
Swivel touchscreen		Swivel touchscreen
12 shutter flaps per second		15 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
340 shots per battery charge		580 shots per battery charge
138 x 98 x 88 mm, 746 g		136 x 93 x 85 mm, 660 g

Check R5 Mark II price at
amazon.com
Check X-H2S price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 Mark II and the Fujifilm X-H2S? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

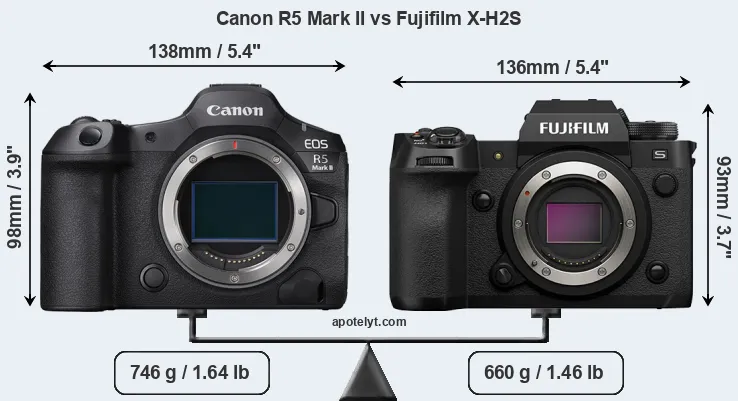

The side-by-side display below illustrates the physical size and weight of the Canon R5 Mark II and the Fujifilm X-H2S. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-H2S is notably smaller (6 percent) than the Canon R5 Mark II. Moreover, the X-H2S is markedly lighter (12 percent) than the R5 Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R5 Mark II	138 mm	98 mm	88 mm	746 g	340	Y	Jul 2024	US$ 4 299	amazon.com
2.		Fujifilm X-H2S	136 mm	93 mm	85 mm	660 g	580	Y	May 2022	US$ 2 499	amazon.com
3.		Canon R1	158 mm	150 mm	87 mm	1115 g	1330	Y	Jul 2024	US$ 6 299	amazon.com
4.		Canon R5	138 mm	98 mm	88 mm	738 g	320	Y	Jul 2020	US$ 3 899	amazon.com
5.		Canon R5 C	142 mm	101 mm	111 mm	770 g	320	Y	Jan 2022	US$ 4 499	amazon.com
6.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	US$ 2 499	amazon.com
7.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
8.		Fujifilm X-H1	140 mm	97 mm	86 mm	673 g	310	Y	Feb 2018	US$ 1 899	ebay.com
9.		Fujifilm X-H2	136 mm	93 mm	85 mm	660 g	680	Y	Sep 2022	US$ 1 999	amazon.com
10.		Fujifilm X-T4	135 mm	93 mm	64 mm	607 g	500	Y	Feb 2020	US$ 1 699	ebay.com
11.		Fujifilm X-T5	130 mm	91 mm	64 mm	557 g	580	Y	Nov 2022	US$ 1 699	amazon.com
12.		Nikon Z8	144 mm	119 mm	83 mm	910 g	340	Y	May 2023	US$ 3 999	amazon.com
13.		Panasonic S1R II	134 mm	102 mm	92 mm	795 g	350	Y	May 2025	US$ 3 299	amazon.com
14.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
15.		Sony A1 II	136 mm	97 mm	83 mm	743 g	520	Y	Nov 2024	US$ 6 499	amazon.com
16.		Sony A7R V	131 mm	97 mm	82 mm	723 g	530	Y	Oct 2022	US$ 3 899	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-H2S was launched at a markedly lower price (by 42 percent) than the R5 Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon R5 Mark II features a full frame sensor and the Fujifilm X-H2S an APS-C sensor. The sensor area in the X-H2S is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 44.8MP, the R5 Mark II offers a higher resolution than the X-H2S (26MP), but the R5 Mark II nevertheless has larger individual pixels (pixel pitch of 4.39μm versus 3.76μm for the X-H2S) due to its larger sensor. Moreover, the R5 Mark II is a much more recent model (by 2 years and 1 month) than the X-H2S, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X-H2S has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Fujifilm X-H2S are 31.2 x 20.8 inches or 79.2 x 52.8 cm for good quality, 25 x 16.6 inches or 63.4 x 42.3 cm for very good quality, and 20.8 x 13.9 inches or 52.8 x 35.2 cm for excellent quality prints.

The Canon EOS R5 Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Fujifilm X-H2S are ISO 160 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

In terms of underlying technology, the R5 Mark II is build around a CMOS sensor, while the X-H2S uses a Stacked BSI-CMOS imager. Like most digital cameras, the R5 Mark II uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-H2S employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R5 Mark II	Full Frame	44.8	8192	5464	8k/60p	25.4	14.8	3332	97
2.		Fujifilm X-H2S	APS-C	26.0	6240	4160	6.2k/30p	24.3	13.9	2224	86
3.		Canon R1	Full Frame	24.0	6000	4000	6K/60p	25.4	14.8	3332	97
4.		Canon R5	Full Frame	44.8	8192	5464	8K/30p	25.3	14.6	3042	95
5.		Canon R5 C	Full Frame	44.8	8192	5464	8k/60p	25.4	14.5	3082	96
6.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
7.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
8.		Fujifilm X-H1	APS-C	24.0	6000	4000	4K/30p	24.0	13.3	1806	82
9.		Fujifilm X-H2	APS-C	39.8	7728	5152	8k/30p	24.3	13.9	2249	86
10.		Fujifilm X-T4	APS-C	26.0	6240	4160	4K/60p	24.1	13.6	1995	84
11.		Fujifilm X-T5	APS-C	39.8	7728	5152	6.2k/30p	24.3	13.9	2264	86
12.		Nikon Z8	Full Frame	45.4	8256	5504	8K/30p	26.3	14.2	2548	98
13.		Panasonic S1R II	Full Frame	44.2	8144	5424	8K/30p	25.4	14.8	3406	97
14.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
15.		Sony A1 II	Full Frame	49.8	8640	5760	8k/30p	25.4	14.8	3363	97
16.		Sony A7R V	Full Frame	60.2	9504	6336	8k/24p	26.5	14.8	3187	100
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R5 Mark II provides a higher video resolution than the X-H2S. It can shoot video footage at 8k/60p, while the Fujifilm is limited to 6.2k/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The R5 Mark II and the X-H2S are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 5760k dots. The following table reports on some other key feature differences and similarities of the Canon R5 Mark II, the Fujifilm X-H2S, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R5 Mark II	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
2.		Fujifilm X-H2S	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
3.		Canon R1	9440	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
4.		Canon R5	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
5.		Canon R5 C	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	n
6.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
7.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
8.		Fujifilm X-H1	3690	Y	3.0 / 1040	full-flex	Y	1/8000s	14.0/s	n	Y
9.		Fujifilm X-H2	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
10.		Fujifilm X-T4	3690	n	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
11.		Fujifilm X-T5	3690	n	3.0 / 1840	tilting	Y	1/8000s	15.0/s	n	Y
12.		Nikon Z8	3690	Y	3.2 / 2089	full-flex	Y	1/32000s	30.0/s	n	Y
13.		Panasonic S1R II	5760	n	3.2 / 1840	full-flex	Y	1/8000s	9.0/s	n	Y
14.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
15.		Sony A1 II	9437	n	3.2 / 2100	full-flex	Y	1/8000s	30.0/s	n	Y
16.		Sony A7R V	9440	n	3.2 / 2100	full-flex	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 Mark II and the Fujifilm X-H2S both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the R5 Mark II and the X-H2S write their files to CFexpress (type B) or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 Mark II and Fujifilm X-H2S and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R5 Mark II	Y	mono / mono	Y	Y	full	3.2	Y	-	Y
2.		Fujifilm X-H2S	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
3.		Canon R1	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
4.		Canon R5	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
5.		Canon R5 C	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
6.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
7.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
8.		Fujifilm X-H1	Y	stereo / mono	Y	-	micro	3.0	Y	-	-
9.		Fujifilm X-H2	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
10.		Fujifilm X-T4	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
11.		Fujifilm X-T5	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
12.		Nikon Z8	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
13.		Panasonic S1R II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
14.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Sony A1 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
16.		Sony A7R V	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the R5 Mark II and the X-H2S are recent models that are part of the current product line-up. The X-H2S replaced the earlier Fujifilm X-H1, while the R5 Mark II followed on from the Canon R5. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.

Review summary

So what is the bottom line? Is the Canon R5 Mark II better than the Fujifilm X-H2S or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS R5 Mark II:

• More detail: Offers more megapixels (44.8 vs 26MP) with a 31% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (8k/60p vs 6.2k/30p).
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1620k dots).
• More modern: Reflects 2 years and 1 month of technical progress since the X-H2S launch.

Arguments in favor of the Fujifilm X-H2S:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.8x vs 0.76x).
• Faster burst: Shoots at higher frequency (15 vs 12 flaps/sec) to capture the decisive moment.
• Less heavy: Has a lower weight (by 86g or 12 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (580 versus 340) out of a single battery charge.
• More affordable: Was introduced into a lower priced category (42 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in May 2022).

If the count of relative strengths (bullet points above) is taken as a measure, the R5 Mark II emerges as the winner of the contest (10 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R5 Mark II and the Fujifilm X-H2S place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the R5 Mark II or the X-H2S. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R5 Mark II	..	..	..	93/100	..	..	Jul 2024	US$ 4 299	amazon.com
2.		Fujifilm X-H2S	5/5	+	5/5	90/100	5/5	5/5	May 2022	US$ 2 499	amazon.com
3.		Canon R1	..	..	..	..	..	..	Jul 2024	US$ 6 299	amazon.com
4.		Canon R5	4.5/5	+	4/5	91/100	4.5/5	4.5/5	Jul 2020	US$ 3 899	amazon.com
5.		Canon R5 C	..	+ +	..	..	..	..	Jan 2022	US$ 4 499	amazon.com
6.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	US$ 2 499	amazon.com
7.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
8.		Fujifilm X-H1	..	+	5/5	86/100	4.5/5	4.5/5	Feb 2018	US$ 1 899	ebay.com
9.		Fujifilm X-H2	5/5	+ +	5/5	89/100	5/5	5/5	Sep 2022	US$ 1 999	amazon.com
10.		Fujifilm X-T4	5/5	+ +	5/5	88/100	5/5	5/5	Feb 2020	US$ 1 699	ebay.com
11.		Fujifilm X-T5	5/5	+ +	4.5/5	90/100	4.5/5	..	Nov 2022	US$ 1 699	amazon.com
12.		Nikon Z8	5/5	..	5/5	94/100	5/5	4.5/5	May 2023	US$ 3 999	amazon.com
13.		Panasonic S1R II	..	..	..	..	..	..	May 2025	US$ 3 299	amazon.com
14.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
15.		Sony A1 II	..	..	..	..	..	..	Nov 2024	US$ 6 499	amazon.com
16.		Sony A7R V	5/5	+ +	4.5/5	92/100	..	..	Oct 2022	US$ 3 899	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
