Canon SX60 vs Olympus Stylus 1

The Canon PowerShot SX60 HS and the Olympus Stylus 1 are two digital cameras that were announced, respectively, in September 2014 and October 2013. Both the SX60 and the Stylus 1 are fixed lens compact cameras that are based on a 1/2.3-inch (SX60) and a 1/1.7-inch (Stylus 1) sensor. The Canon has a resolution of 14.2 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX60		Olympus Stylus 1
Fixed lens compact camera		Fixed lens compact camera
21-1365mm f/3.4-6.5		28-300mm f/2.8
14.2 MP – 1/2.3" sensor		11.8 MP – 1/1.7" sensor
1080/60p Video		1080/30p Video
ISO 100-3,200 (100 - 6,400)		ISO 100-12,800
Electronic viewfinder (922k dots)		Electronic viewfinder (1440k dots)
3.0" LCD – 922k dots		3.0" LCD – 1040k dots
Swivel screen (not touch-sensitive)		Tilting touchscreen
6.4 shutter flaps per second		7 shutter flaps per second
340 shots per battery charge		410 shots per battery charge
128 x 93 x 114 mm, 650 g		116 x 87 x 57 mm, 402 g

Check SX60 offers at
ebay.com
Check Stylus 1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX60 HS and the Olympus Stylus 1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

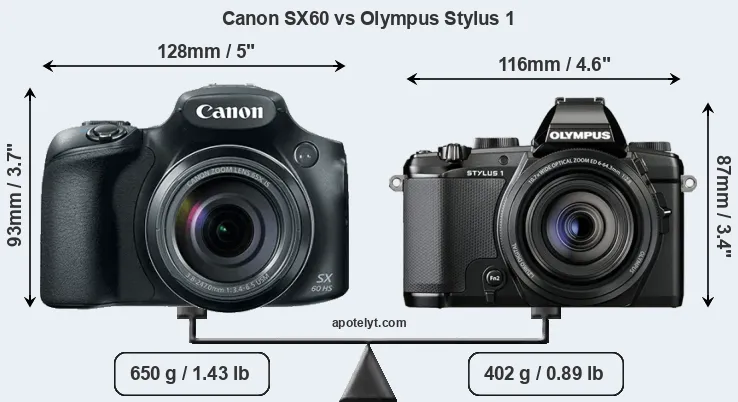

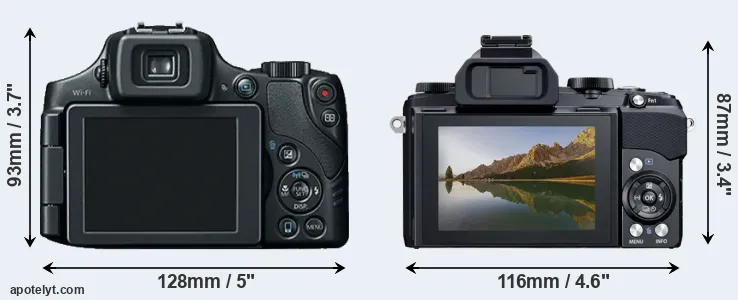

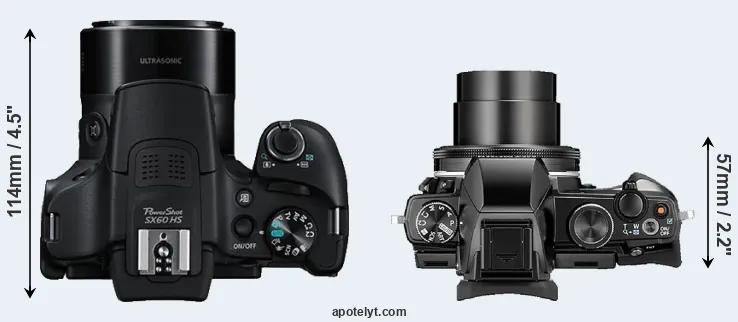

An illustration of the physical size and weight of the Canon SX60 and the Olympus Stylus 1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1 is notably smaller (15 percent) than the Canon SX60. Moreover, the Stylus 1 is substantially lighter (38 percent) than the SX60. In this context, it is worth noting that neither the SX60 nor the Stylus 1 are weather-sealed.

Concerning battery life, the SX60 gets 340 shots out of its Canon NB-10L battery, while the Stylus 1 can take 410 images on a single charge of its Olympus BLS-5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
2.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
5.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
6.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
7.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
8.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	US$ 549	amazon.com
9.		Canon XC10	125 mm	102 mm	122 mm	1040 g	370	n	Apr 2015	US$ 2 499	ebay.com
10.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
11.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
12.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
13.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
14.		Panasonic FZ330	132 mm	92 mm	117 mm	691 g	380	Y	Jul 2015	US$ 599	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX60 was launched at a somewhat lower price (by 21 percent) than the Stylus 1, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

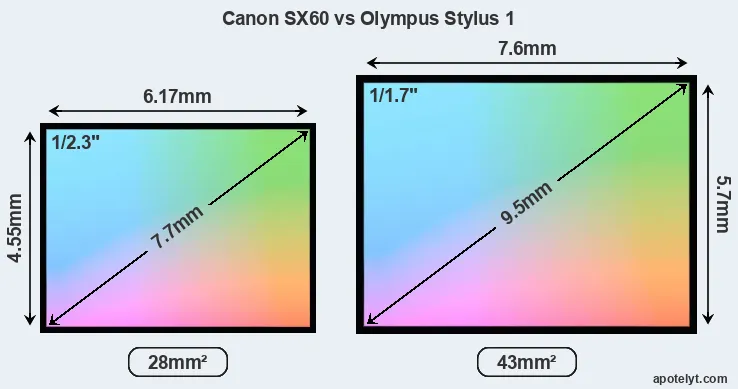

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon SX60 features a 1/2.3-inch sensor and the Olympus Stylus 1 a 1/1.7-inch sensor. The sensor area in the Stylus 1 is 54 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 4.5. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

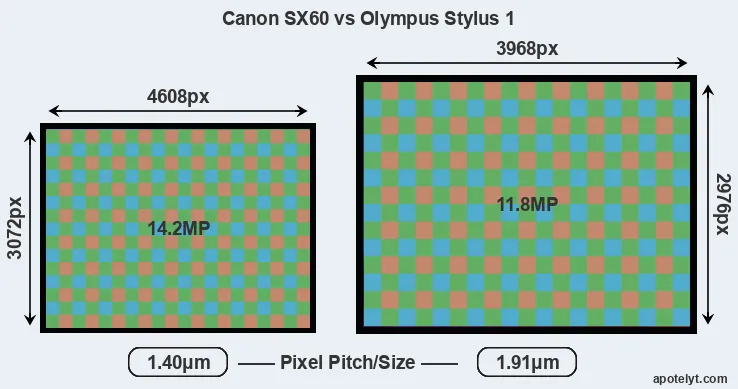

Despite having a smaller sensor, the Canon SX60 offers a higher resolution of 14.2 megapixels, compared with 11.8 MP of the Olympus Stylus 1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.40μm versus 1.91μm for the Stylus 1). However, it should be noted that the SX60 is a somewhat more recent model (by 10 months) than the Stylus 1, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX60 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX60 for good quality output (200 dots per inch) amounts to 23 x 15.4 inches or 58.5 x 39 cm, for very good quality (250 dpi) 18.4 x 12.3 inches or 46.8 x 31.2 cm, and for excellent quality (300 dpi) 15.4 x 10.2 inches or 39 x 26 cm. The corresponding values for the Olympus Stylus 1 are 19.8 x 14.9 inches or 50.4 x 37.8 cm for good quality, 15.9 x 11.9 inches or 40.3 x 30.2 cm for very good quality, and 13.2 x 9.9 inches or 33.6 x 25.2 cm for excellent quality prints.

The Canon PowerShot SX60 HS has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-6400. The corresponding ISO settings for the Olympus Stylus 1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the Stylus 1 offers substantially better image quality than the SX60 (overall score 12 points higher). The advantage is based on 1.5 bits higher color depth, 0.8 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
2.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
6.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
7.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
8.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
9.		Canon XC10	1-inch	12.0	4000	3000	4K/30p	21.7	11.8	197	61
10.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
11.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
12.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
13.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
14.		Panasonic FZ330	1/2.3	12.0	4000	3000	4K/30p	19.3	11.0	97	38
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX60 provides a higher frame rate than the Stylus 1. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the Stylus 1 offers a substantially higher resolution than the one in the SX60 (1440k vs 922k dots). The following table reports on some other key feature differences and similarities of the Canon SX60, the Olympus Stylus 1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
2.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
6.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
7.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
8.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
9.		Canon XC10	none	n	3.0 / 1030	tilting	Y	1/2000s	3.8/s	n	Y
10.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
11.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
12.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
13.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
14.		Panasonic FZ330	1440	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Stylus 1 has a touchscreen, while the SX60 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus Stylus 1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the SX60 and the Stylus 1 have zoom lenses built in. The SX60 has a 21-1365mm f/3.4-6.5 optic and the Stylus 1 offers a 28-300mm f/2.8-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Olympus. The Stylus 1 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX60 and the Stylus 1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX60 HS and Olympus Stylus 1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
2.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Canon XC10	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
11.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Panasonic FZ330	Y	stereo / mono	Y	-	mini	2.0	Y	-	-

It is notable that the SX60 has a microphone port, which is missing on the Stylus 1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the SX60 and the Stylus 1 have been discontinued, but can regularly be found used on ebay. The Stylus 1 was replaced by the Olympus Stylus 1s, while the SX60 was followed by the Canon SX70. Further information on the features and operation of the SX60 and Stylus 1 can be found, respectively, in the Canon SX60 Manual (free pdf) or the online Olympus Stylus 1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon SX60 and the Olympus Stylus 1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot SX60 HS:

• More detail: Offers more megapixels (14.2 vs 11.8MP) with a 12% higher linear resolution.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced segment (21 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 10 months after the Stylus 1).

Arguments in favor of the Olympus Stylus 1:

• Better image quality: Scores substantially higher (12 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.5 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (0.8 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.5 stops ISO advantage).
• More detailed viewfinder: Has higher resolution electronic viewfinder (1440k vs 922k dots).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.4).
• More compact: Is smaller (116x87mm vs 128x93mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 248g or 38 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (410 versus 340) out of a single battery charge.
• More heavily discounted: Has been on the market for longer (launched in October 2013).

If the number of relative strengths (bullet points above) is taken as a guide, the Stylus 1 emerges as the winner of the match-up (13 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX60 and the Olympus Stylus 1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX60 or the Stylus 1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
2.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
5.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
6.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
7.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
8.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	US$ 549	amazon.com
9.		Canon XC10	..	..	..	80/100	..	..	Apr 2015	US$ 2 499	ebay.com
10.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
11.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
12.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
13.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
14.		Panasonic FZ330	..	+ +	..	..	4.5/5	4.5/5	Jul 2015	US$ 599	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check SX60 offers at
ebay.com
Check Stylus 1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check SX60 offers at
ebay.com
Check Stylus 1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
