Canon T7 vs Olympus E-1

The Canon EOS Rebel T7 (called Canon 2000D in some regions) and the Olympus E-1 are two digital cameras that were officially introduced, respectively, in February 2018 and June 2003. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (T7) and a Four Thirds (E-1) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 4.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon T7		Olympus E-1
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Four Thirds lenses
24 MP – APS-C sensor		4.9 MP – Four Thirds sensor
1080/30p Video		no Video
ISO 100-6,400 (100 - 12,800)		ISO 100-800 (100 - 3,200)
Optical viewfinder		Optical viewfinder
3.0" LCD – 920k dots		1.8" LCD – 134k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		3 shutter flaps per second
not weather sealed		Weathersealed body
500 shots per battery charge		750 shots per battery charge
129 x 101 x 78 mm, 475 g		141 x 104 x 81 mm, 738 g

Check T7 price at
amazon.com
Check E-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T7 and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

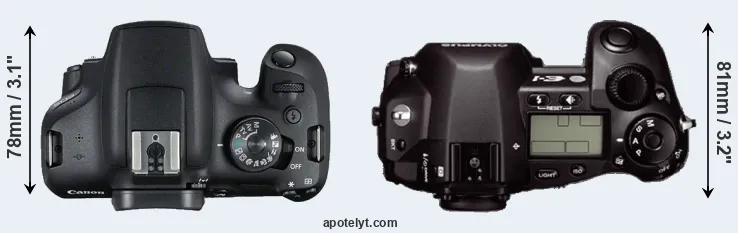

The side-by-side display below illustrates the physical size and weight of the Canon T7 and the Olympus E-1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is notably larger (13 percent) than the Canon T7. Moreover, the E-1 is substantially heavier (55 percent) than the T7. It is noteworthy in this context that the E-1 is splash and dust-proof, while the T7 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T7) and the Four Thirds Lens Catalog (E-1).

Concerning battery life, the T7 gets 500 shots out of its Canon LP-E10 battery, while the E-1 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	EUR 499	amazon.com
2.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	EUR 1 999	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	EUR 899	ebay.com
4.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	EUR 599	ebay.com
5.		Canon SL3	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	EUR 549	amazon.com
6.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	EUR 399	ebay.com
7.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	EUR 399	ebay.com
8.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	EUR 449	ebay.com
9.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	EUR 699	ebay.com
10.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	EUR 749	ebay.com
11.		Canon T7i	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	EUR 849	ebay.com
12.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	EUR 399	amazon.com
13.		Leica Digilux 3	146 mm	87 mm	77 mm	606 g	750	n	Sep 2006	EUR 1 499	ebay.com
14.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	EUR 1 749	ebay.com
15.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	EUR 1 499	ebay.com
16.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	EUR 799	ebay.com
17.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	EUR 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The T7 was launched at a markedly lower price (by 74 percent) than the E-1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon T7 features an APS-C sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the T7 has a native 3:2 aspect ratio, while the one in the E-1 offers a 4:3 aspect.

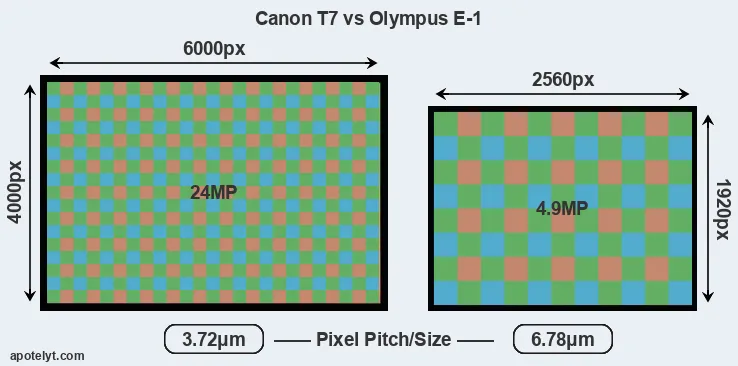

With 24MP, the T7 offers a higher resolution than the E-1 (4.9MP), but the T7 has smaller individual pixels (pixel pitch of 3.72μm versus 6.78μm for the E-1). However, the T7 is a much more recent model (by 14 years and 8 months) than the E-1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon T7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T7 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

The Canon EOS Rebel T7 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the T7 is build around a CMOS sensor, while the E-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
2.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon SL3	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
6.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
7.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
8.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
9.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
10.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
11.		Canon T7i	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
12.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
13.		Leica Digilux 3	Four Thirds	7.4	3136	2352	none	21.0	10.6	127	53
14.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
15.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
16.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
17.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The T7 indeed provides movie recording capabilities, while the E-1 does not. The highest resolution format that the T7 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The T7 and the E-1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the E-1 offers a wider field of view (100%) than the one in the T7 (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the T7 has a higher magnification (0.50x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon T7 and Olympus E-1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
2.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon SL3	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
7.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
8.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T7i	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
12.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Leica Digilux 3	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
14.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
15.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
16.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
17.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The T7 has one, while the E-1 does not. While the built-in flash of the T7 is not very powerful, it can at times be useful as a fill-in light.

The T7 writes its imaging data to SDXC cards, while the E-1 uses Compact Flash or xD Picture cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the T7 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T7 and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
2.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon SL3	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
6.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
8.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
9.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon T7i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
13.		Leica Digilux 3	Y	stereo / mono	-	-	-	2.0	-	-	-
14.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the T7 offers wifi support, while the E-1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Olympus E-1 (unlike the T7) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The T7 is a recent model that features in the current product line-up of Canon. In contrast, the E-1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the E-1 was succeeded by the Olympus E-3. Further information on the features and operation of the T7 and E-1 can be found, respectively, in the Canon T7 Manual (free pdf) or the online Olympus E-1 Manual.

Review summary

So what conclusions can be drawn? Is the Canon T7 better than the Olympus E-1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS Rebel T7:

• More detail: Offers more megapixels (24 vs 4.9MP) with a 125% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.50x vs 0.48x).
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 134k dots).
• More compact: Is smaller (129x101mm vs 141x104mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 263g or 36 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
• More modern: Reflects 14 years and 8 months of technical progress since the E-1 launch.

Advantages of the Olympus E-1:

• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Longer lasting: Gets more shots (750 versus 500) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in June 2003).

If the count of individual advantages (bullet points above) is taken as a guide, the T7 is the clear winner of the match-up (16 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon T7 and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the T7 and the E-1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	EUR 499	amazon.com
2.		Olympus E-1	..	..	..	+	o	..	Jun 2003	EUR 1 999	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	EUR 899	ebay.com
4.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	EUR 599	ebay.com
5.		Canon SL3	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	EUR 549	amazon.com
6.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	EUR 399	ebay.com
7.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	EUR 399	ebay.com
8.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	EUR 449	ebay.com
9.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	EUR 699	ebay.com
10.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	EUR 749	ebay.com
11.		Canon T7i	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	EUR 849	ebay.com
12.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	EUR 399	amazon.com
13.		Leica Digilux 3	..	..	..	..	..	..	Sep 2006	EUR 1 499	ebay.com
14.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	EUR 1 749	ebay.com
15.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	EUR 1 499	ebay.com
16.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	EUR 799	ebay.com
17.		Olympus E-330	..	..	..	+	o	..	Jan 2006	EUR 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check T7 price at
amazon.com
Check E-1 offers at
ebay.com
