Olympus E-PL9 vs Panasonic G5

The Olympus PEN E-PL9 and the Panasonic Lumix DMC-G5 are two digital cameras that were revealed to the public, respectively, in February 2018 and July 2012. Both the E-PL9 and the G5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 15.9 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL9		Panasonic G5
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Micro Four Thirds lenses
15.9 MP – Four Thirds sensor		15.9 MP – Four Thirds sensor
4K/30p Video		1080/60p Video
ISO 200-6,400 (100 - 25,600)		ISO 160-12,800
No viewfinder, LCD framing		Electronic viewfinder (1440k dots)
3.0" LCD – 1040k dots		3.0" LCD – 920k dots
Tilting touchscreen		Swivel touchscreen
8.6 shutter flaps per second		6 shutter flaps per second
In-body stabilization		Lens stabilization only
350 shots per battery charge		320 shots per battery charge
117 x 68 x 39 mm, 380 g		120 x 83 x 71 mm, 396 g

Check E-PL9 offers at
ebay.com
Check G5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL9 and the Panasonic Lumix DMC-G5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

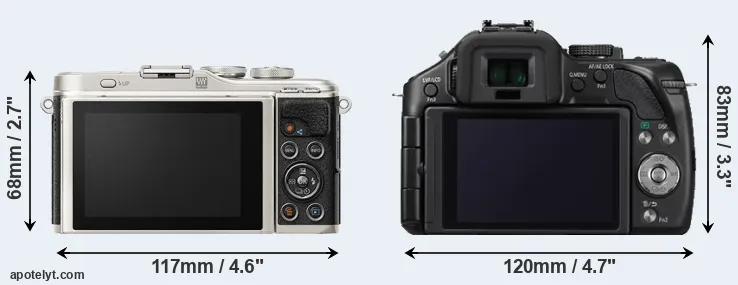

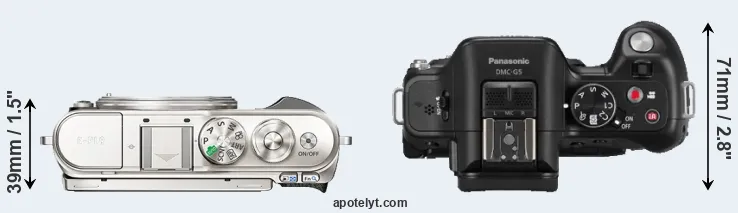

Body comparison

The side-by-side display below illustrates the physical size and weight of the Olympus E-PL9 and the Panasonic G5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-PL9 can be obtained in four different colors (black, brown, blue, white), while the G5 is available in two color-versions (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G5 is notably larger (25 percent) than the Olympus E-PL9. Moreover, the G5 is slightly heavier (4 percent) than the E-PL9. In this context, it is worth noting that neither the E-PL9 nor the G5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the E-PL9 gets 350 shots out of its Olympus BLS-50 battery, while the G5 can take 320 images on a single charge of its Panasonic DMW-BLC12 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	US$ 599	ebay.com
2.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	US$ 599	ebay.com
3.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
4.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
5.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	US$ 649	ebay.com
6.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
7.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
8.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	US$ 599	ebay.com
9.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
10.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	US$ 549	ebay.com
11.		Olympus E-PL10	117 mm	68 mm	39 mm	380 g	350	n	Oct 2019	US$ 599	ebay.com
12.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
13.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
14.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
15.		Panasonic G7	125 mm	86 mm	77 mm	410 g	350	n	May 2015	US$ 649	ebay.com
16.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
17.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

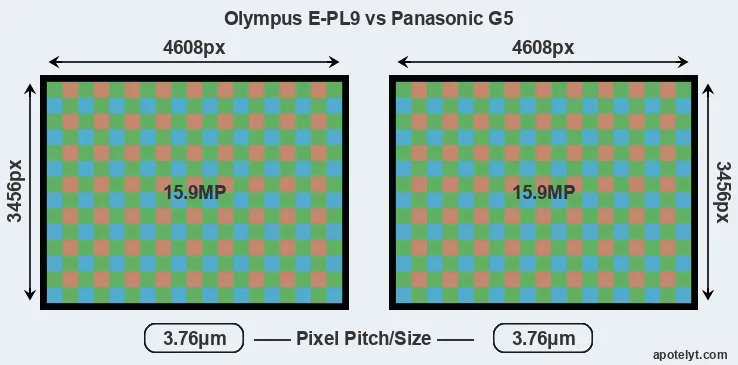

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the E-PL9 and the G5 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-PL9 is much more recent (by 5 years and 6 months) than the G5, and its sensor will have benefitted from technological advances during this time.

The Olympus PEN E-PL9 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DMC-G5 are ISO 160 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
2.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
3.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
4.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
5.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
6.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
7.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
8.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
9.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
10.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
11.		Olympus E-PL10	Four Thirds	15.9	4608	3456	4K/30p	23.3	13.1	1324	76
12.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
13.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
14.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
15.		Panasonic G7	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.4	904	71
16.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
17.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-PL9 provides a higher video resolution than the G5. It can shoot video footage at 4K/30p, while the Panasonic is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the G5 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL9 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Olympus E-PL9 and Panasonic G5 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
2.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
3.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
4.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
5.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
6.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
7.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
8.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
9.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
10.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PL10	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
12.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
13.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
14.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
15.		Panasonic G7	2360	n	3.0 / 1040	swivel	Y	1/4000s	7.0/s	Y	n
16.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
17.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-PL9 and the G5 is in-body image stabilization (IBIS). The E-PL9 reduces the risk of handshake-induced blur with all attached lenses, while the G5 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-PL9 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-PL9 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-PL9 and the G5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL9 and Panasonic Lumix DMC-G5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
2.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
4.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-PL10	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
12.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Panasonic G7	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
16.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the E-PL9 offers wifi support, while the G5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the E-PL9 and the G5 have been discontinued, but can regularly be found used on ebay. The G5 was replaced by the Panasonic G6, while the E-PL9 was followed by the Olympus E-PL10. Further information on the features and operation of the E-PL9 and G5 can be found, respectively, in the Olympus E-PL9 Manual (free pdf) or the online Panasonic G5 Manual.

Review summary

So what conclusions can be drawn? Is the Olympus E-PL9 better than the Panasonic G5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Olympus PEN E-PL9:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• Faster burst: Shoots at higher frequency (8.6 vs 6 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (117x68mm vs 120x83mm) and thus needs less room in the bag.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 5 years and 6 months of technical progress since the G5 launch.

Advantages of the Panasonic Lumix DMC-G5:

• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More heavily discounted: Has been around for much longer (launched in July 2012).

If the number of relative strengths (bullet points above) is taken as a guide, the E-PL9 is the clear winner of the match-up (10 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL9 and the Panasonic G5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-PL9 or the G5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	US$ 599	ebay.com
2.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
3.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
4.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
5.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	US$ 649	ebay.com
6.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
7.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
8.		Olympus E-PL6	..	..	..	..	..	..	May 2013	US$ 599	ebay.com
9.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
10.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	US$ 549	ebay.com
11.		Olympus E-PL10	..	..	4/5	77/100	..	4/5	Oct 2019	US$ 599	ebay.com
12.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
13.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
14.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
15.		Panasonic G7	4/5	+ +	3.5/5	80/100	5/5	4.5/5	May 2015	US$ 649	ebay.com
16.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
17.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
