OM System TG-7 vs Pentax K-5 II

The OM System Tough TG-7 and the Pentax K-5 II are two digital cameras that were revealed to the public, respectively, in September 2023 and September 2012. The TG-7 is a fixed lens compact, while the K-5 II is a DSLR. The cameras are based on a 1/2.3-inch (TG-7) and an APS-C (K-5 II) sensor. The OM System has a resolution of 12 megapixels, whereas the Pentax provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

OM System TG-7		Pentax K-5 II
Fixed lens compact camera		Digital single lens reflex
25-100mm f/2.0-4.9		Pentax K mount lenses
12 MP – 1/2.3" sensor		16.1 MP – APS-C sensor
4K/30p Video		1080/25p Video
ISO 100-12,800		ISO 100-12,800 (80 - 51,200)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
20 shutter flaps per second		7 shutter flaps per second
In-body stabilization		In-body stabilization
Waterproof body (15m)		Weathersealed body
330 shots per battery charge		740 shots per battery charge
114 x 66 x 33 mm, 249 g		131 x 97 x 73 mm, 760 g

Check TG-7 price at
amazon.com
Check K-5 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the OM System Tough TG-7 and the Pentax K-5 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

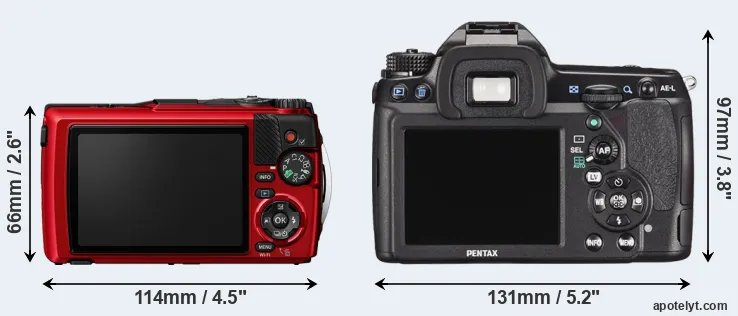

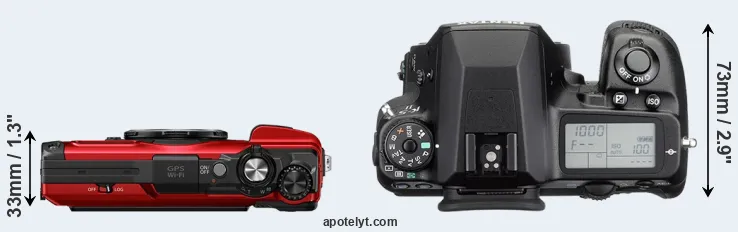

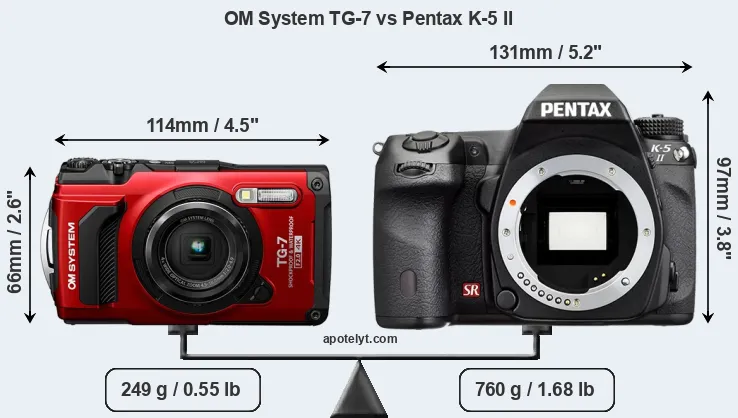

The physical size and weight of the OM System TG-7 and the Pentax K-5 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The TG-7 can be obtained in two different colors (black, red), while the K-5 II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-5 II is considerably larger (69 percent) than the OM System TG-7. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the TG-7 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-7 has a lens built in, whereas the K-5 II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the TG-7 gets 330 shots out of its OM System LI-92B battery, while the K-5 II can take 740 images on a single charge of its Pentax D-LI90 power pack. The power pack in the TG-7 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		OM System TG-7	114 mm	66 mm	33 mm	249 g	330	Y	Sep 2023	US$ 549	amazon.com
2.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	US$ 1 099	ebay.com
3.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
4.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
5.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	US$ 379	ebay.com
6.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	US$ 449	ebay.com
7.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	US$ 449	ebay.com
8.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
9.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
10.		Panasonic FZ330	132 mm	92 mm	117 mm	691 g	380	Y	Jul 2015	US$ 599	amazon.com
11.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
12.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
13.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	US$ 1 099	ebay.com
14.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
15.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	US$ 849	ebay.com
16.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	US$ 599	ebay.com
17.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TG-7 was launched at a lower price than the K-5 II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the OM System TG-7 features a 1/2.3-inch sensor and the Pentax K-5 II an APS-C sensor. The sensor area in the K-5 II is 1229 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the TG-7 has a native 4:3 aspect ratio, while the one in the K-5 II offers a 3:2 aspect.

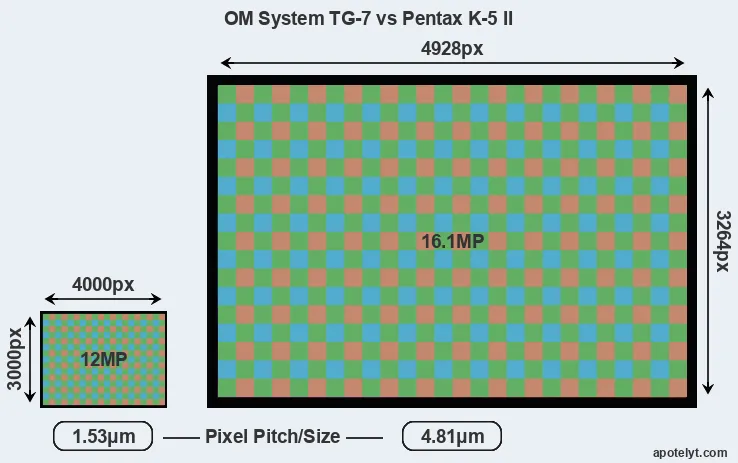

With 16.1MP, the K-5 II offers a higher resolution than the TG-7 (12MP), but the K-5 II nevertheless has larger individual pixels (pixel pitch of 4.81μm versus 1.53μm for the TG-7) due to its larger sensor. However, the TG-7 is a much more recent model (by 11 years) than the K-5 II, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Pentax K-5 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-5 II for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the OM System TG-7 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The OM System Tough TG-7 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Pentax K-5 II are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

In terms of underlying technology, the TG-7 is build around a BSI-CMOS sensor, while the K-5 II uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		OM System TG-7	1/2.3	12.0	4000	3000	4K/30p	20.9	12.7	1553	54
2.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
3.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
4.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
5.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
6.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
7.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
8.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
9.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
10.		Panasonic FZ330	1/2.3	12.0	4000	3000	4K/30p	19.3	11.0	97	38
11.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
12.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
13.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
14.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
15.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
16.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
17.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the TG-7 provides a higher video resolution than the K-5 II. It can shoot video footage at 4K/30p, while the Pentax is limited to 1080/25p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the K-5 II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-7 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the OM System TG-7 and Pentax K-5 II in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		OM System TG-7	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
2.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
3.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
4.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
5.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
6.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
7.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
8.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
9.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
10.		Panasonic FZ330	1440	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
11.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
12.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
13.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
14.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
15.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
16.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
17.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the K-5 II, but is missing on the TG-7 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The OM System TG-7 and the Pentax K-5 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the TG-7 and the K-5 II write their files to SDXC cards. The TG-7 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the K-5 II cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the OM System Tough TG-7 and Pentax K-5 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		OM System TG-7	-	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
9.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Panasonic FZ330	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
11.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
13.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
16.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
17.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the TG-7 offers wifi support, while the K-5 II does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Pentax K-5 II (unlike the TG-7) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the TG-7 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The TG-7 is a recent model that features in the current product line-up of OM System. In contrast, the K-5 II has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the K-5 II was succeeded by the Pentax K-3. Further information on the features and operation of the TG-7 and K-5 II can be found, respectively, in the OM System TG-7 Manual (free pdf) or the online Pentax K-5 II Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the OM System TG-7 or the Pentax K-5 II – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the OM System Tough TG-7:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/25p).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
• Faster burst: Shoots at higher frequency (20 vs 7 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the K-5 II requires a separate lens.
• More compact: Is smaller (114x66mm vs 131x97mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the K-5 II).
• Easier travel charging: Can be conveniently charged via its USB port.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 11 years of technical progress since the K-5 II launch.

Reasons to prefer the Pentax K-5 II:

• More detail: Has more megapixels (16.1 vs 12MP), which boosts linear resolution by 18%.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (740 versus 330) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been around for much longer (launched in September 2012).

If the number of relative strengths (bullet points above) is taken as a guide, the K-5 II comes out slightly ahead of the TG-7 (14 : 13 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the OM System TG-7 and the Pentax K-5 II place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the TG-7 and the K-5 II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		OM System TG-7	4/5	..	4.5/5	..	4/5	4/5	Sep 2023	US$ 549	amazon.com
2.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	US$ 1 099	ebay.com
3.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
4.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
5.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	US$ 379	ebay.com
6.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	US$ 449	ebay.com
7.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	US$ 449	ebay.com
8.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
9.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
10.		Panasonic FZ330	..	+ +	..	..	4.5/5	4.5/5	Jul 2015	US$ 599	amazon.com
11.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
12.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
13.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	US$ 1 099	ebay.com
14.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
15.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	US$ 849	ebay.com
16.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	US$ 599	ebay.com
17.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check TG-7 price at
amazon.com
Check K-5 II offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check TG-7 price at
amazon.com
Check K-5 II offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
