Pentax 645D vs WG-1000

The Pentax 645D and the Pentax WG-1000 are two digital cameras that were revealed to the public, respectively, in March 2010 and June 2024. The 645D is a DSLR, while the WG-1000 is a fixed lens compact. The cameras are based on a medium format (645D) and a 1/2.3-inch (WG-1000) sensor. The 645D has a resolution of 39.5 megapixels, whereas the WG-1000 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax 645D		Pentax WG-1000
Digital single lens reflex		Fixed lens compact camera
Pentax 645 mount lenses		27-108mm f/3.0-6.6
39.5 MP – Medium Format sensor		15.9 MP – 1/2.3" sensor
no Video		1080/30p Video
ISO 100-1,600		ISO 100-3,200
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 921k dots		2.7" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1.1 shutter flaps per second		8 shutter flaps per second
Weathersealed body		Waterproof body (15m)
800 shots per battery charge		300 shots per battery charge
156 x 117 x 119 mm, 1480 g		116 x 69 x 51 mm, 220 g

Check 645D offers at
ebay.com
Check WG-1000 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax 645D and the Pentax WG-1000? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

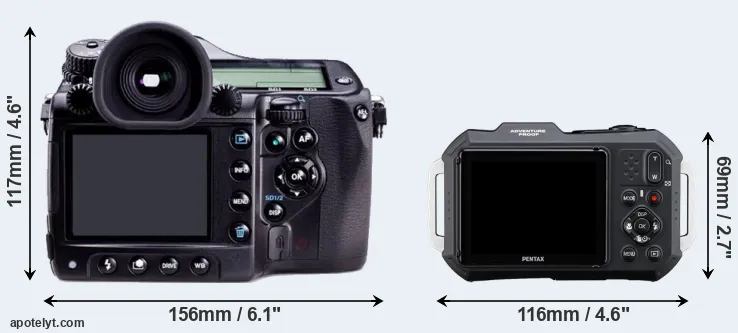

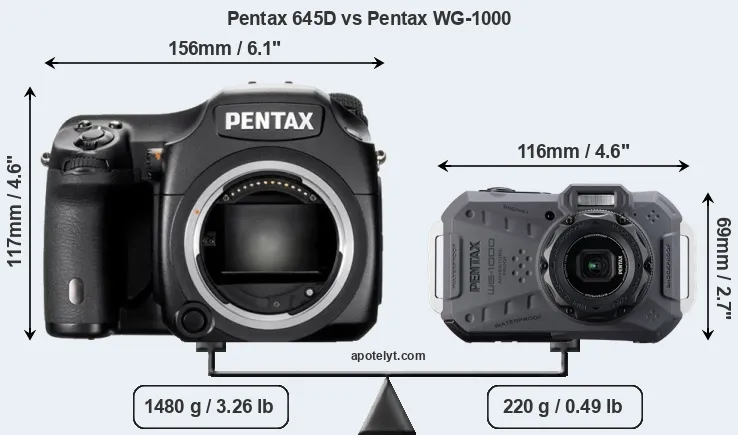

Body comparison

The physical size and weight of the Pentax 645D and the Pentax WG-1000 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax WG-1000 is considerably smaller (56 percent) than the Pentax 645D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the WG-1000 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the WG-1000 has a lens built in, whereas the 645D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Pentax 645D	156 mm	117 mm	119 mm	1480 g	800	Y	Mar 2010	US$ 9 995	ebay.com
2.		Pentax WG-1000	116 mm	69 mm	51 mm	220 g	300	Y	Jun 2024	US$ 229	amazon.com
3.		Canon 1D Mark IV	156 mm	157 mm	80 mm	1230 g	1500	Y	Oct 2009	US$ 4 999	ebay.com
4.		Canon 1D X	158 mm	168 mm	83 mm	1551 g	1120	Y	Oct 2011	US$ 6 799	ebay.com
5.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
6.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
7.		Leica S Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2012	US$ 21 949	ebay.com
8.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
9.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
10.		Nikon D810	146 mm	123 mm	82 mm	980 g	1200	Y	Jun 2014	US$ 3 299	ebay.com
11.		Nikon D850	146 mm	124 mm	79 mm	1005 g	1840	Y	Jul 2017	US$ 3 299	amazon.com
12.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
13.		Pentax 645Z	156 mm	117 mm	123 mm	1550 g	650	Y	Apr 2014	US$ 8 499	ebay.com
14.		Pentax WG-8	118 mm	66 mm	33 mm	242 g	340	Y	Jun 2024	US$ 399	amazon.com
15.		Pentax WG-90	123 mm	62 mm	30 mm	194 g	300	Y	Nov 2023	US$ 279	amazon.com
16.		Ricoh WG-60	123 mm	62 mm	30 mm	193 g	300	Y	Oct 2018	US$ 279	ebay.com
17.		Sony A7R	127 mm	94 mm	48 mm	465 g	340	Y	Oct 2013	US$ 2 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The WG-1000 was launched at a lower price than the 645D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

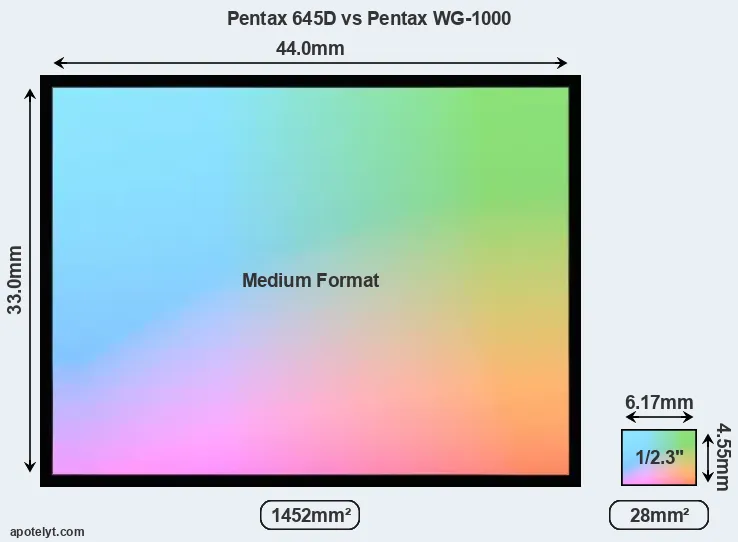

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Pentax 645D features a medium format sensor and the Pentax WG-1000 a 1/2.3-inch sensor. The sensor area in the WG-1000 is 98 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.79 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

With 39.5MP, the 645D offers a higher resolution than the WG-1000 (15.9MP), but the 645D nevertheless has larger individual pixels (pixel pitch of 6.06μm versus 1.33μm for the WG-1000) due to its larger sensor. However, the WG-1000 is a much more recent model (by 14 years and 2 months) than the 645D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Pentax 645D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645D for good quality output (200 dots per inch) amounts to 36.3 x 27.2 inches or 92.3 x 69.1 cm, for very good quality (250 dpi) 29.1 x 21.8 inches or 73.8 x 55.3 cm, and for excellent quality (300 dpi) 24.2 x 18.1 inches or 61.5 x 46.1 cm. The corresponding values for the Pentax WG-1000 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Pentax 645D has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Pentax WG-1000 are ISO 100 to ISO 3200 (no boost).

In terms of underlying technology, the 645D is build around a CCD sensor, while the WG-1000 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax 645D	Medium Format	39.5	7264	5440	none	24.6	12.6	1262	82
2.		Pentax WG-1000	1/2.3	15.9	4608	3456	1080/30p	20.9	12.8	1626	54
3.		Canon 1D Mark IV	APS-H	16.0	4896	3264	1080/30p	22.8	12.0	1320	74
4.		Canon 1D X	Full Frame	17.9	5184	3456	1080/30p	23.8	11.8	2786	82
5.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
6.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
7.		Leica S Typ 006	Medium Format	37.5	7500	5000	none	23.9	12.2	824	76
8.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
9.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
10.		Nikon D810	Full Frame	36.2	7360	4912	1080/60p	25.7	14.8	2853	97
11.		Nikon D850	Full Frame	45.4	8256	5504	4K/30p	26.4	14.8	2660	100
12.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
13.		Pentax 645Z	Medium Format	51.1	8256	6192	1080/60i	26.0	14.7	4505	101
14.		Pentax WG-8	1/2.3	20.2	5184	3888	4K/30p	20.9	12.8	1626	54
15.		Pentax WG-90	1/2.3	15.9	4608	3456	1080/60p	20.9	12.8	1570	54
16.		Ricoh WG-60	1/2.3	15.9	4608	3456	1080/60p	20.6	12.2	1072	51
17.		Sony A7R	Full Frame	36.2	7360	4912	1080/60p	25.6	14.1	2746	95
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The WG-1000 indeed provides for movie recording, while the 645D does not. The highest resolution format that the WG-1000 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 645D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the WG-1000 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Pentax 645D and Pentax WG-1000 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax 645D	optical	Y	3.0 / 921	fixed	n	1/4000s	1.1/s	n	n
2.		Pentax WG-1000	none	n	2.7 / 230	fixed	n	1/2000s	8.0/s	Y	n
3.		Canon 1D Mark IV	optical	Y	3.0 / 920	fixed	n	1/8000s	10.0/s	n	n
4.		Canon 1D X	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
5.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
6.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
7.		Leica S Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
8.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
9.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
10.		Nikon D810	optical	Y	3.2 / 1229	fixed	n	1/8000s	5.0/s	Y	n
11.		Nikon D850	optical	Y	3.2 / 2359	tilting	Y	1/8000s	9.0/s	n	n
12.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
13.		Pentax 645Z	optical	Y	3.2 / 1037	tilting	n	1/4000s	3.0/s	n	n
14.		Pentax WG-8	none	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
15.		Pentax WG-90	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
16.		Ricoh WG-60	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
17.		Sony A7R	2400	n	3.0 / 1230	tilting	n	1/8000s	4.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 645D, but is missing on the WG-1000 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Pentax 645D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 645D and the WG-1000 write their files to SDXC cards. The 645D features dual card slots, which can be very useful in case a memory card fails. In contrast, the WG-1000 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax 645D and Pentax WG-1000 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax 645D	Y	stereo / -	-	-	-	2.0	-	-	-
2.		Pentax WG-1000	-	mono / mono	-	-	-	2.0	-	-	-
3.		Canon 1D Mark IV	Y	stereo / -	Y	-	mini	2.0	-	-	-
4.		Canon 1D X	Y	mono / -	Y	-	mini	2.0	-	-	-
5.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
6.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
7.		Leica S Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
8.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
10.		Nikon D810	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
11.		Nikon D850	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
12.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Pentax 645Z	Y	stereo / mono	Y	-	mini	3.0	-	-	-
14.		Pentax WG-8	-	mono / mono	-	-	-	3.0	-	-	-
15.		Pentax WG-90	-	mono / mono	-	-	micro	2.0	-	-	-
16.		Ricoh WG-60	-	mono / mono	-	-	micro	2.0	-	-	-
17.		Sony A7R	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the 645D has a hotshoe, while the WG-1000 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Pentax 645D (unlike the WG-1000) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The WG-1000 is a recent model that features in the current product line-up of Pentax. In contrast, the 645D has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the 645D was succeeded by the Pentax 645Z. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Pentax website.

Review summary

So how do things add up? Is the Pentax 645D better than the Pentax WG-1000 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Pentax 645D:

• More detail: Offers more megapixels (39.5 vs 15.9MP) with a 58% higher linear resolution.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (800 versus 300) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in March 2010).

Reasons to prefer the Pentax WG-1000:

• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• Faster burst: Shoots at higher frequency (8 vs 1.1 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with an integrated lens, while the 645D requires a separate lens.
• More compact: Is smaller (116x69mm vs 156x117mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 645D).
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 14 years and 2 months of technical progress since the 645D launch.

If the number of relative strengths (bullet points above) is taken as a guide, the 645D is the clear winner of the match-up (17 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax 645D and the Pentax WG-1000 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 645D or the WG-1000. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Pentax 645D	5/5	..	..	..	..	..	Mar 2010	US$ 9 995	ebay.com
2.		Pentax WG-1000	..	..	..	..	..	..	Jun 2024	US$ 229	amazon.com
3.		Canon 1D Mark IV	5/5	..	..	89/100	..	..	Oct 2009	US$ 4 999	ebay.com
4.		Canon 1D X	5/5	..	..	..	4.5/5	4.5/5	Oct 2011	US$ 6 799	ebay.com
5.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
6.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
7.		Leica S Typ 006	..	..	..	..	..	..	Sep 2012	US$ 21 949	ebay.com
8.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
9.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
10.		Nikon D810	5/5	..	5/5	86/100	5/5	4.5/5	Jun 2014	US$ 3 299	ebay.com
11.		Nikon D850	4.5/5	+ +	5/5	89/100	4.5/5	5/5	Jul 2017	US$ 3 299	amazon.com
12.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
13.		Pentax 645Z	5/5	..	3.5/5	..	4.5/5	5/5	Apr 2014	US$ 8 499	ebay.com
14.		Pentax WG-8	..	..	..	..	..	..	Jun 2024	US$ 399	amazon.com
15.		Pentax WG-90	..	..	..	..	..	..	Nov 2023	US$ 279	amazon.com
16.		Ricoh WG-60	..	..	..	..	..	..	Oct 2018	US$ 279	ebay.com
17.		Sony A7R	5/5	+ +	..	82/100	4.5/5	5/5	Oct 2013	US$ 2 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
